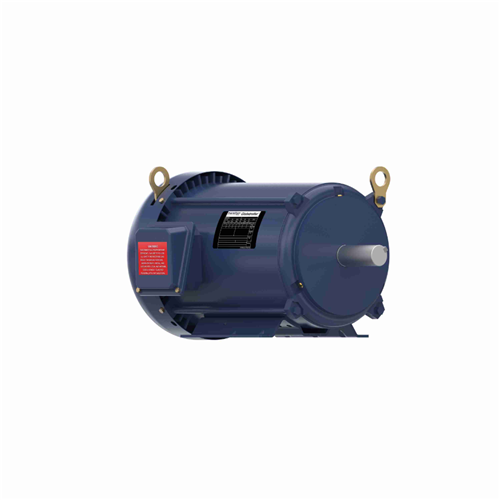

Marathon Motors GT1511 Globetrotter 3HP 1200RPM 230/460V 213T Frame

Product Description

The Marathon Motors GT1511 Globetrotter is a reliable AC electric motor suitable for general purpose and severe duty applications. With a power output of 3HP running at 1200RPM, it operates effectively at voltage levels of 230/460V and is compatible with both 60Hz and 50Hz frequency. This motor features a robust 213T frame with a rigid base and is designed for F1 mounting, making it apt for inverter operations.

• Constructed with a rolled steel frame and equipped with a durable steel conduit box.
• The oversized conduit box rotates in ninety-degree increments for versatile installations.
• Meets safety standards for Division 2/ Zone 2, Class I, Groups A, B, C, D.

Product Highlights

The Marathon Globetrotter motor is UL Recognized, CSA Certified, and CE Marked, demonstrating its adherence to industry standards.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer Part #: GT1511

Technical Specifications

• Series: Globetrotter SD + Steel Frame (Severe Duty)
• Power: 3HP
• RPM: 1200RPM
• Voltage: 230/460V
• Frequency: 60/50Hz
• FLA: 8.6/4.3FLA
• Service Factor: 1.15
• Frame: 213T Frame with Rigid Base
• Mount: F1 Mount
• Enclosure: Totally Enclosed Fan Cooled
• Application: General Purpose and Severe Duty
• Phase: 3-Phase
• Ingress Protection: IP43 Rated Ingress Protection on Rolled Steel Frames
• Insulation Class: Class F, Class B Rise Insulation
• Certifications: UL Recognized, CSA Certified, and CE Mark
