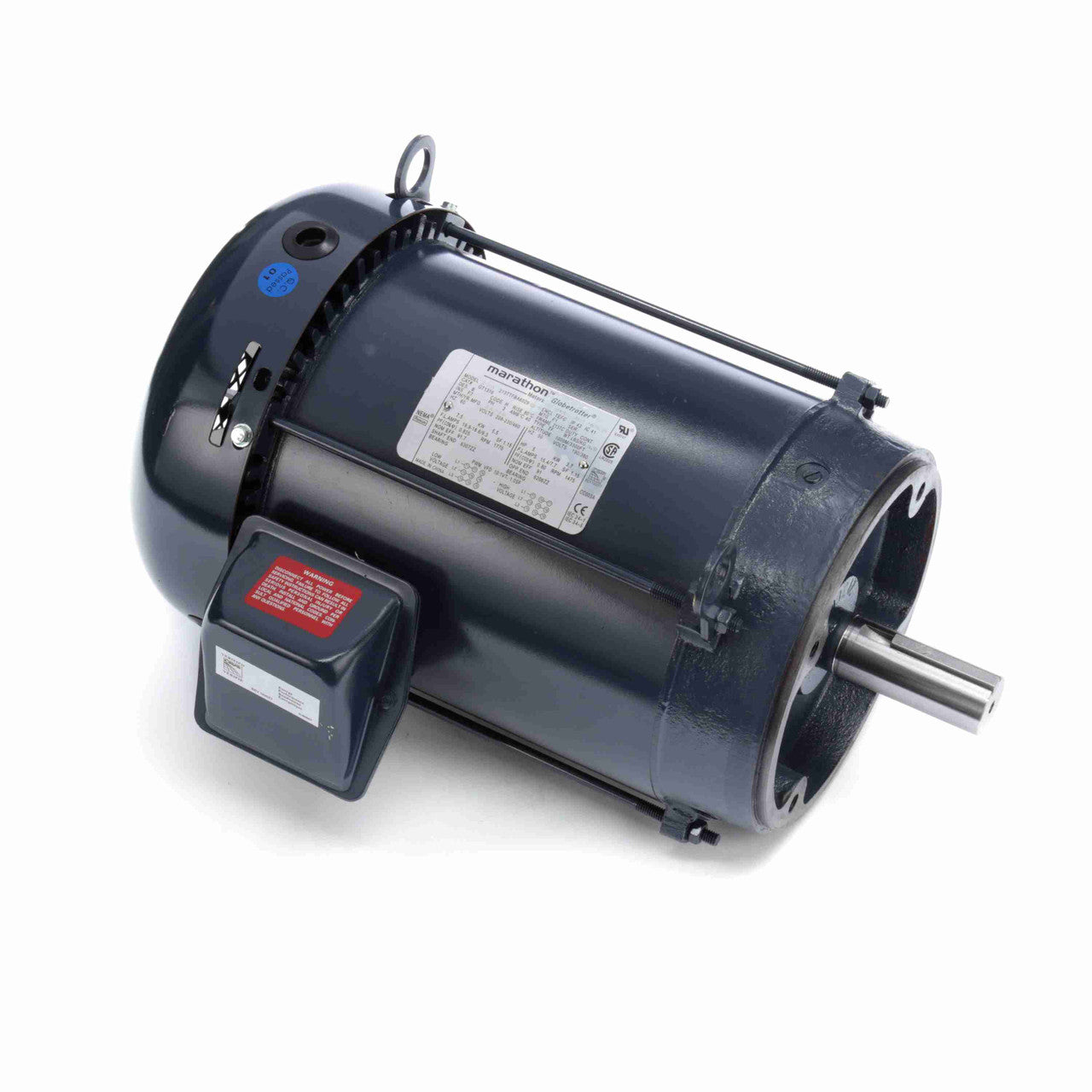

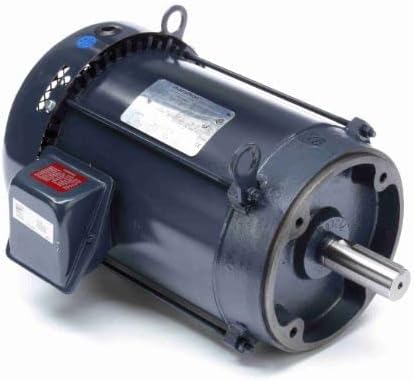

Marathon Motors GT1316A 7.5HP 1768RPM 213TC TEFC 3PH Globetrotter Motor

Product Description

The MARATHON MOTORS GT1316A is a 7.5HP Three Phase TEFC Globetrotter NEMA Premium Efficiency Motor. It is used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry. This motor operates at 1768 RPM with a 213TC frame size and is suitable for general purpose applications.

• Meets or exceeds NEMA Premium efficiency
• NEMA Premium models are in compliance with EISA2007
• UL Recognized, CSA Certified, CE Mark

Product Highlights

This Marathon motor is ideal for various industrial applications requiring a reliable and efficient three-phase power source.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: GT1316A

Technical Specifications

• Brand: Marathon
• Application: General Purpose
• Output HP: 7.5
• Output KW: 5.6
• Output RPM: 1768
• Frame Size NEMA: 213TC
• Mount NEMA: C Face No Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP43
• Voltage: 230/460
• Catalog Number: GT1316A
• HP: 7-1/2
• Frequency: 60 Hz
• Amps: 19.0/9.5
• RPM (Number of Poles): 4 (1201 RPM to 1800 RPM)
• RPM (Nameplate): 1768
• Speeds: 1
• Phase: 3
• Enclosure Type: Totally Enclosed Fan Cooled
• Rotation: Reversible
• Mounting Type: Round
• Frame Type: 213TC
• Frame Material: Rolled Steel
• Shaft Diameter: 1-3/8 (in.)
• Shaft Extension: 3.38 (in.)
• Shaft Type: T
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 19.10 (in.)
• Electrical Type: Squirrel Cage Inverter Rated
• Duty: Continuous
• Motor Orientation: Horizontal
• Service Factor: 1.15
• Type of Overload Protector: No
• Insulation Class: F
• Max Ambient: 40°C
• UL: Listed
• CE: Y
• CSA: Y
• IP Code: 43
• KVA Code: H
• Horsepower: 7.5 Horsepower
• Material: Copper
• Manufacturer: Marathon Electric
• Part Number: GT1316A
• Item Package Quantity: 1
• AC Voltage: 230 V
• Current Rating: 19.0 A, 9.5 A
• Composition: Rolled Steel
• Kilowatts: 5.5 kW
• Speed: 1,768 RPM
• NEMA Frame: 213TC
• Mounting: Round
• Enclosure: Totally Enclosed Fan Cooled
• Special Features: Squirrel Cage Inverter Rated Motors
• Application Type: General Purpose AC Motors
• Shaft Size: 1-3/8 in Dia x 3.38 in L Extension
• Torque Rating: 22.3 ft-lb Full Load
• Number of Speeds: 1
• Temperature Rating: 40 deg C
• Frequency Rating: 60 Hz
• Amperage Rating: 19/9.5 A
• Voltage Rating: 230/460 VAC
• Variable Torque Speed Range: 10:1
• Constant Torque Speed Range: 10:1
