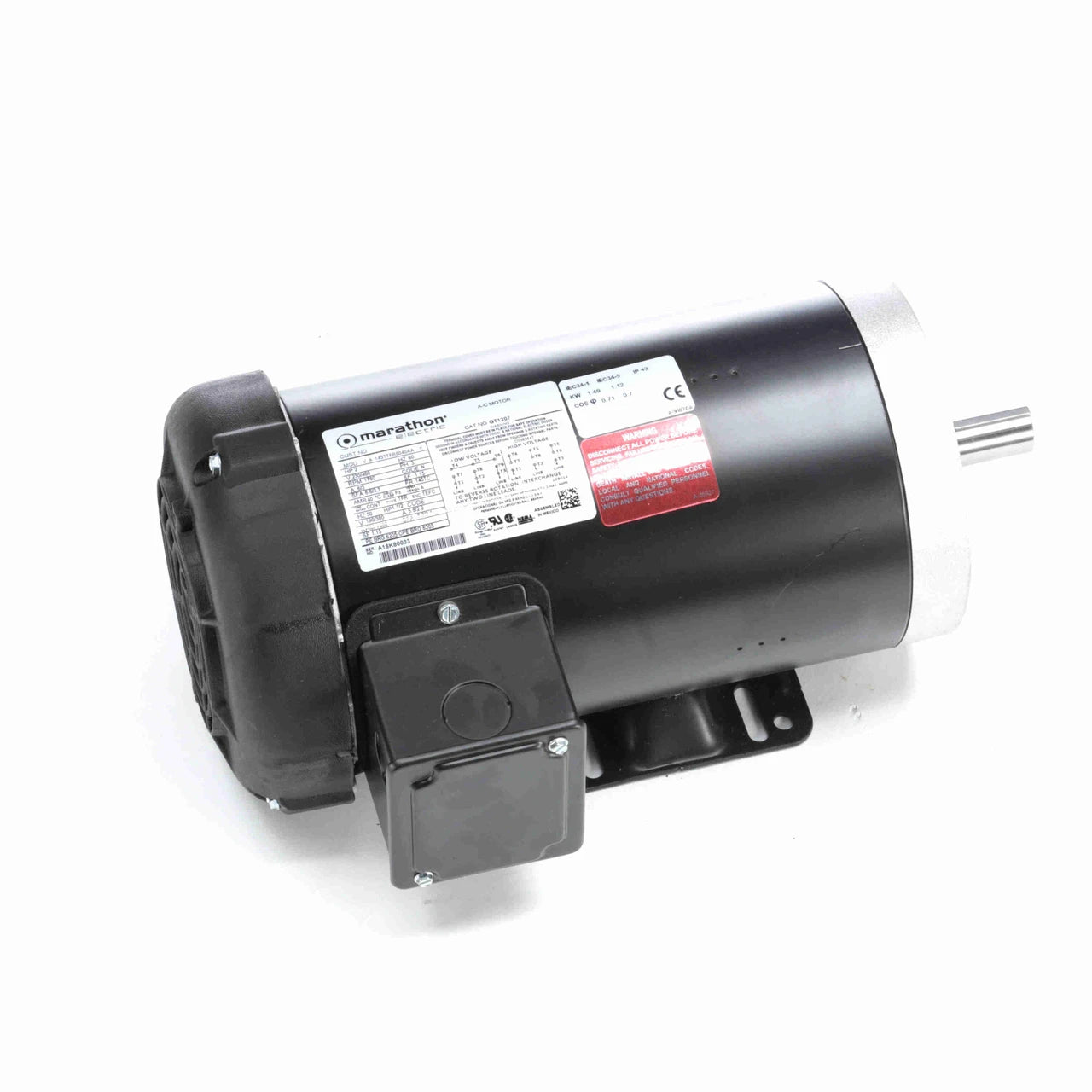

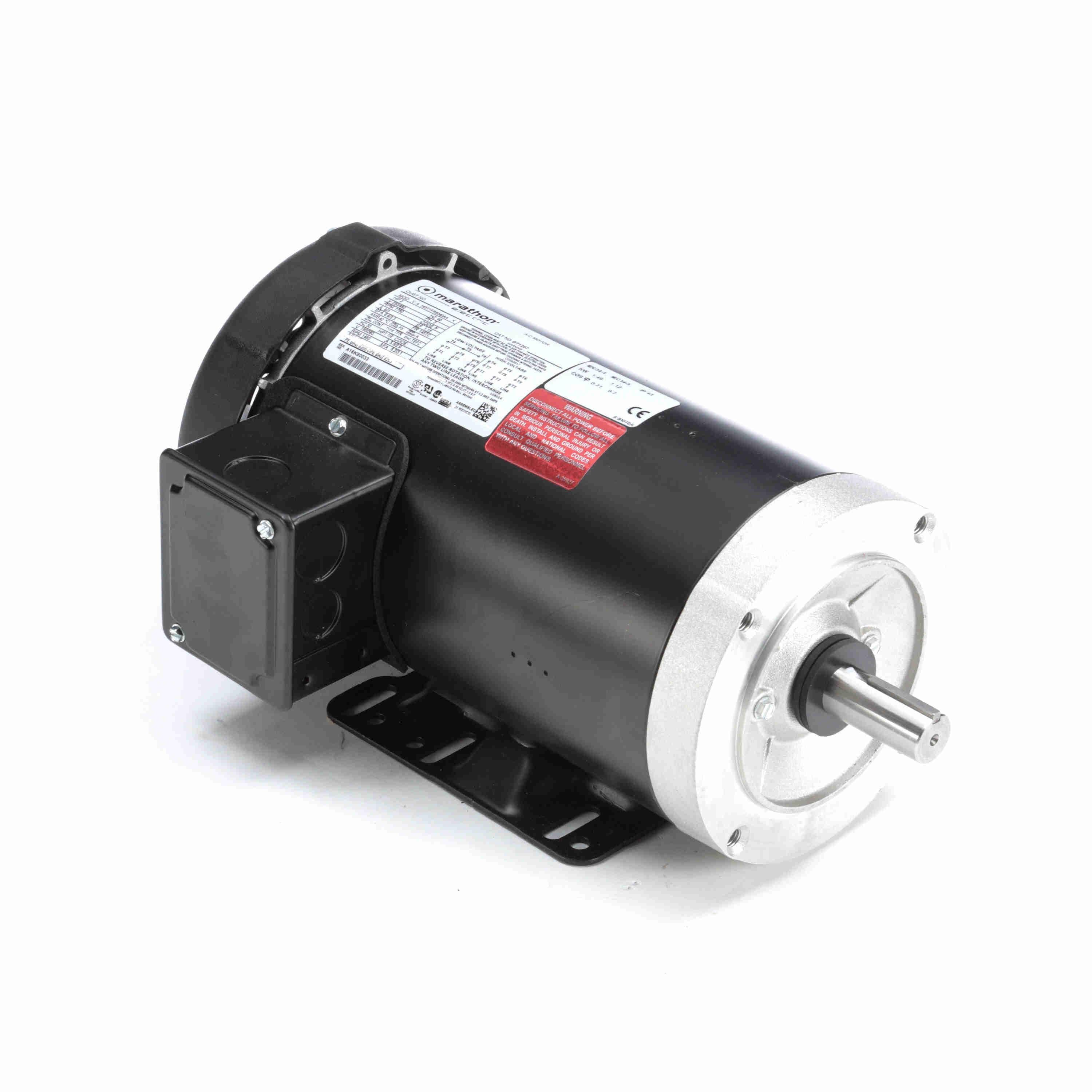

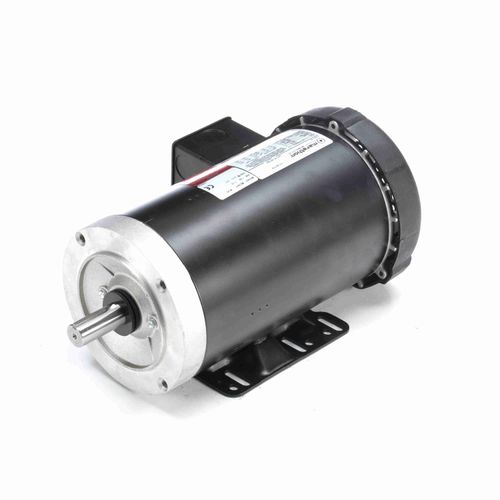

Marathon Motors GT1207 General Purpose Motor 2 HP

Product Description

The Marathon Motors GT1207 is a general purpose motor. Electrical Type: Three Phase. It has a rolled steel material and a rigid base mounting. This motor is used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry.

• Electrical Type: Three Phase
• Frame: 145TC
• Enclosure: TEFC

Product Highlights

The Marathon Motors GT1207 is a 2 HP motor with a speed of 1760 RPM and voltage of 230/460. It is suitable for use in various machinery and equipment.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: GT1207
• Country of Origin: United States

Technical Specifications

• Brand: Marathon Motors
• SKU: MGT1207
• Electrical Type: Three Phase
• HP: 2
• RPM: 1760
• Frame: 145TC
• Enclosure: TEFC
• Phase: 3
• Voltage: 230/460
• Rotation: Reversible
• Overload: None
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 6.0/3.0
• Shaft Type: Single
• Output KW: 1.5 & 1.1 kW
• Speed: 1760 & 1460 rpm
• Service Factor: 1.15 & 1.15
• Thermal Protection: No Protection
• Efficiency: 86.5 & 85.5 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 6/3 & 5.8/2.9 A
• Power Factor: 71
• Duty: Continuous
• Insulation Class: F
• Design Code: A
• KVA Code: N
• Drive End Bearing Size: 6205
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 43
• Number of Speeds: 1
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP43
• Horsepower: 2 hp
• Voltage Rating: 208 to 230/460 VAC
• Amperage Rating: 6/3 A
• Frequency Rating: 60 Hz
• Speed Rating: 1800 rpm
• Shaft Size: 2.12 in Dia
• Bearing Type: Ball
• Mounting Style: Rigid
• Temperature Rating: 40 deg C
• Dimensions: 14.87 in L
• Weight: 49.00
