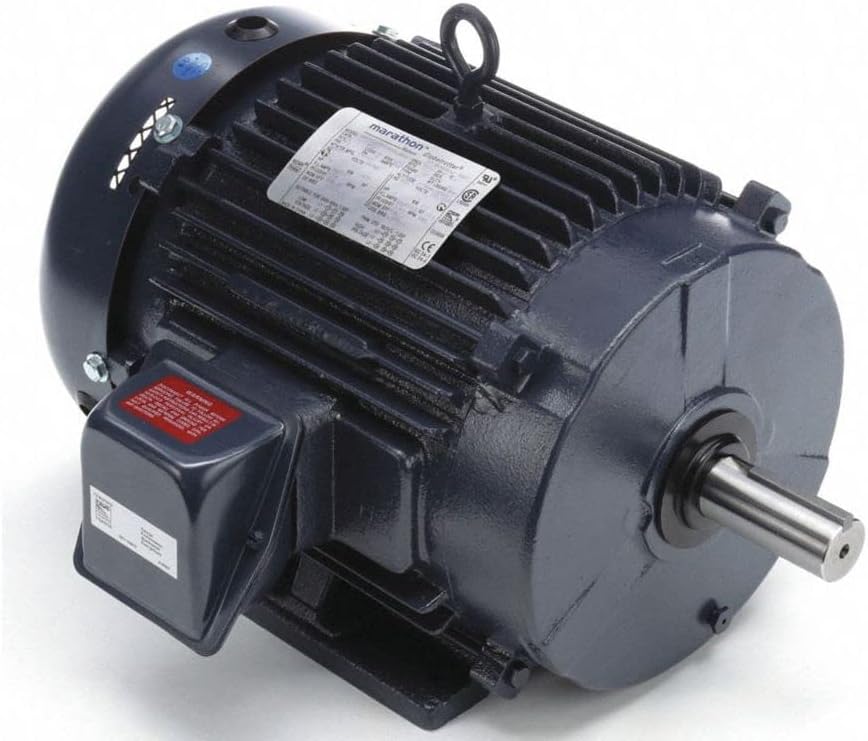

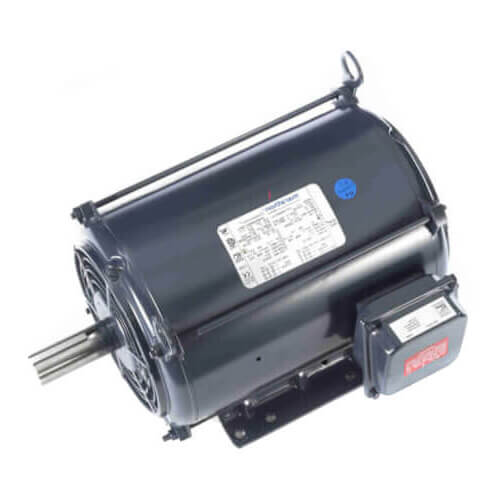

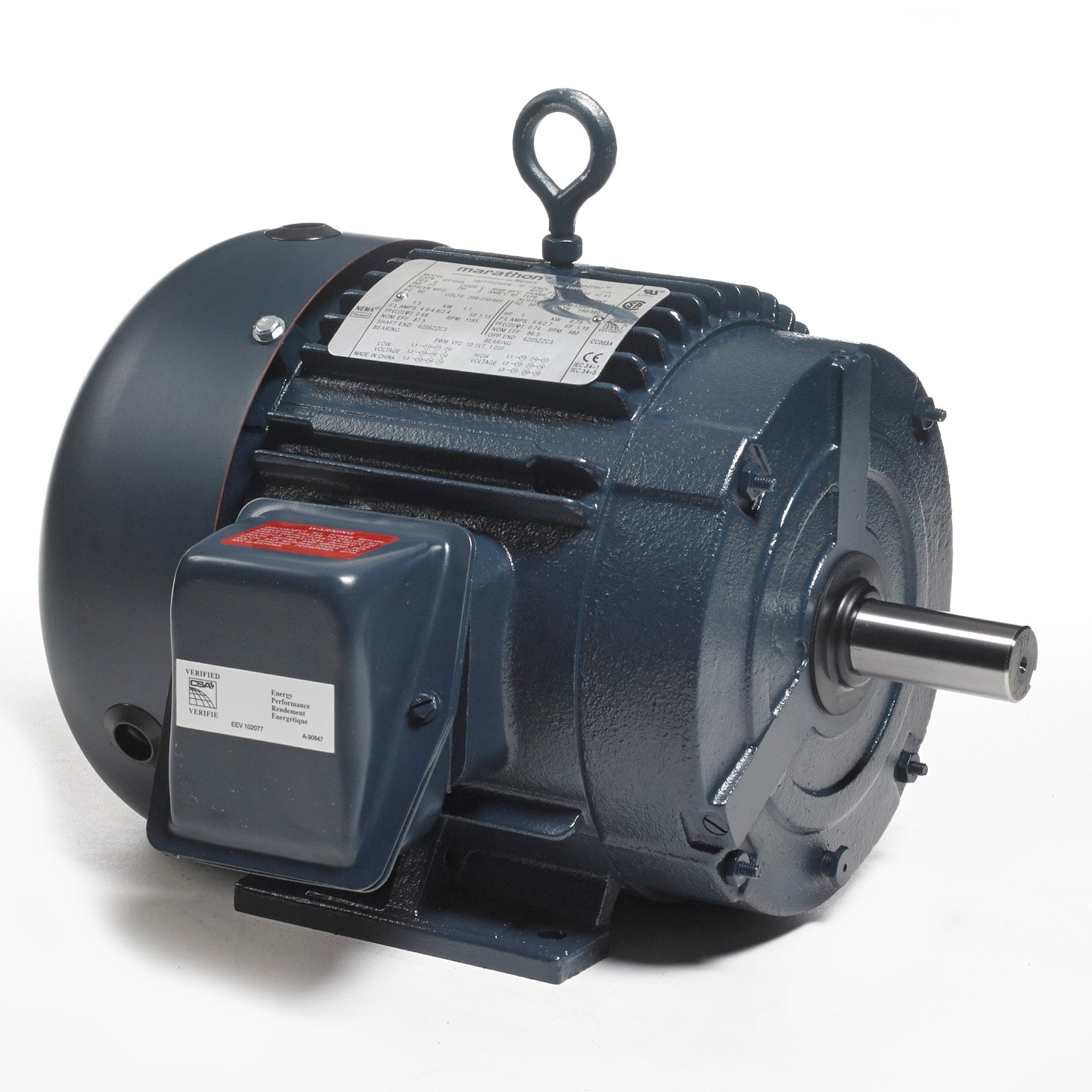

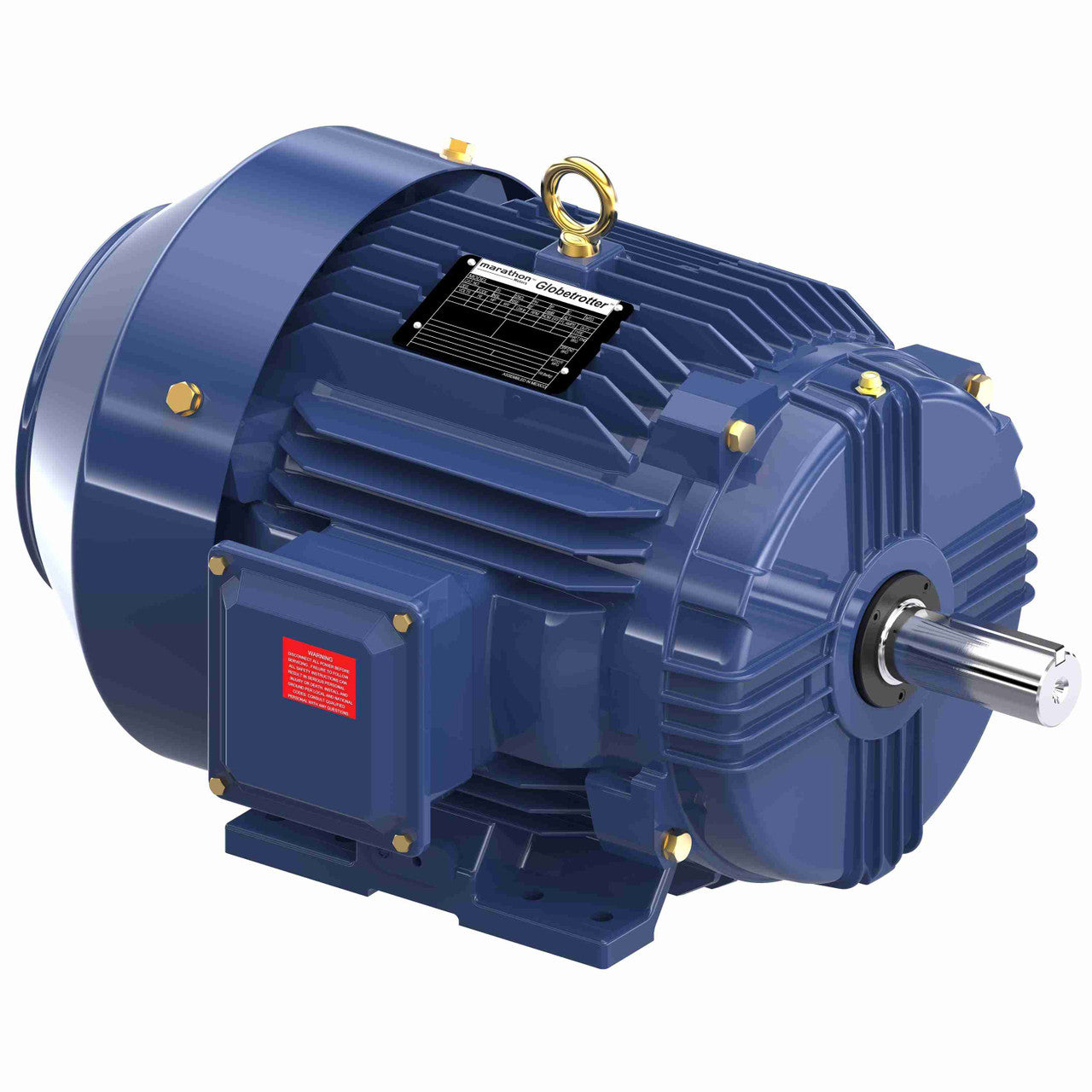

Marathon Motors GT1014A Globetrotter General Purpose Motor 5 HP 215T Frame

Product Description

The MARATHON MOTORS GT1014A is a 3 PH TEFC Globetrotter General Purpose Motor with a 215T Frame. This motor meets or exceeds NEMA Premium efficiency and is compliant with EISA2009. It features an IP55 enclosure on cast iron frames and Class F Insulation. Suitable for use in environments that are relatively clean and dry.

• Meets or exceeds NEMA Premium efficiency
• Compliant with EISA2009
• Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B

Product Highlights

This general purpose motor is ideal for compressors, pumps, conveyors, blowers, and other machinery.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: GT1014A
• Country of Origin: Vietnam

Technical Specifications

• Duty: Continuous
• Type: General Purpose
• Frame: 215T
• Motor: Squirrel Cage Inverter, 3-Phase
• Mount: Rigid Base
• Phase: 3
• Poles: 6
• Voltage: 230/460V
• Amperage: 6.8, 13.6
• Bearings: Ball
• Rotation: Reversible
• Horse Power: 5
• Enclosure Type: Totally Enclosed Fan-Cooled (TEFC)
• Insulation Class: F
• Motor Orientation: Horizontal
• Overload Protection: None
• Max Ambient Temp (°F): 104°F
• Output KW: 3.7 & 2.2 kW
• Speed: 1180 & 985 rpm
• Service Factor: 1.15 & 1.15
• Thermal Protection: No Protection
• Efficiency: 89.5 & 89 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 13.6/6.8 & 10.6/5.3 A
• Power Factor: 77.5
• Design Code: B
• KVA Code: J
• Drive End Bearing Size: 6308
• Opp Drive End Bearing Size: 6208
• UL: Listed
• CSA: Y
• CE: Y
• IP Code: 55
• Number of Speeds: 1
• Hazardous Location: DIVISION 2 T2B
• Application: General Purpose
• Output RPM: 1180//985
• Frame Size NEMA: 215T
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Horsepower: 5 Horsepower
• Material: Copper
• Item Weight: 168 Pounds
• Part Number: GT1014A
• Rated Load (HP): 5
• Current Type: AC
• Base RPM: 1180
• Shaft Type: Keyed
• Model: Marathon Gt1014A
• MPN: 215TTFCD6076BB
• AC Phase: Three Phase
• UPC: Does not apply
• Country of Origin: Vietnam
