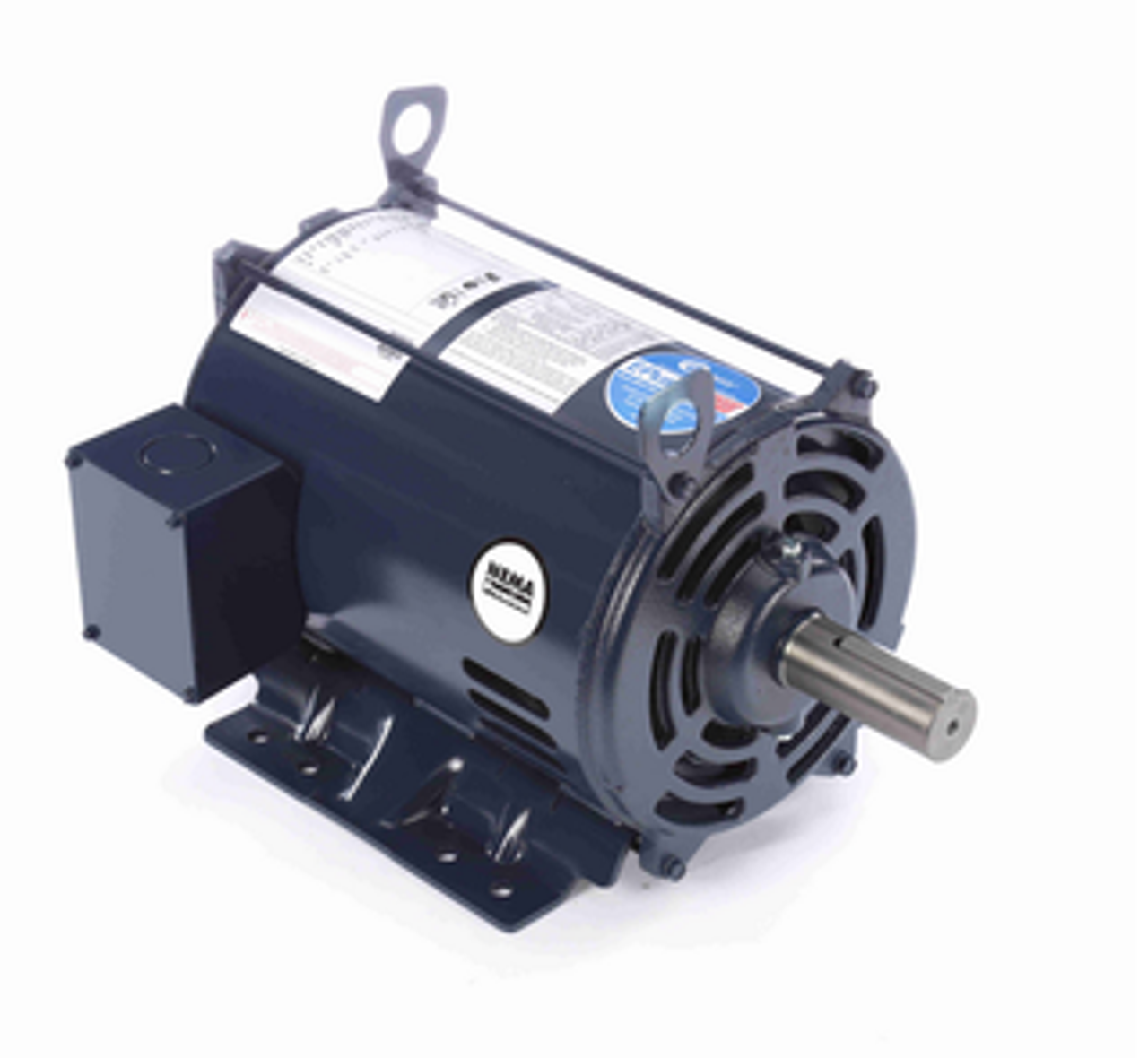

MARATHON MOTORS GT0816 Globetrotter General Purpose Motor 7.5 HP 1800 RPM 213T Frame REPLACEMENT MPN

Product Description

The MARATHON MOTORS GT0816 Globetrotter general purpose motor provides efficient performance for various applications. This motor includes a squirrel cage inverter, suitable for continuous duty, with durable ball bearings. Built with rolled steel, it is inverter duty rated with a variable torque of 10:1 and constant torque of 2:1. The product features standard assembly F1 and is reversible to F2 assembly, enabling flexible installation options.

• Squirrel Cage Inverter Rated
• Continuous Duty
• Ball Bearings

Product Highlights

This motor is ideal for general usage where specific requirements are not necessary. It includes a wiring diagram on the motor nameplate for easy setup.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: GT0816

Technical Specifications

• HP: 7.5
• RPM: 1766
• Frame: 213T
• Phase: 3
• Voltage: 200
• Amps: 22.8
• Service Factor: 1.15
• Speed: Single
• Enclosure: DP
• Reversible: Yes
• Mounting: Rigid
• Shaft: 1.375 x 3.38 Keyed
• Overall Length: 17.52
• Frequency: 60
• Overload Protection: None
• Base: Rigid Base
• Rotation: Reversible
• Bearings: Ball Bearings
• Insulation Class: Class F
