Marathon Motors GT0401A Marathon 1 hp 3 phase 1800 rpm 143JM Frame 230/460V ODP REPLACEMENT GT3101A

Product Description

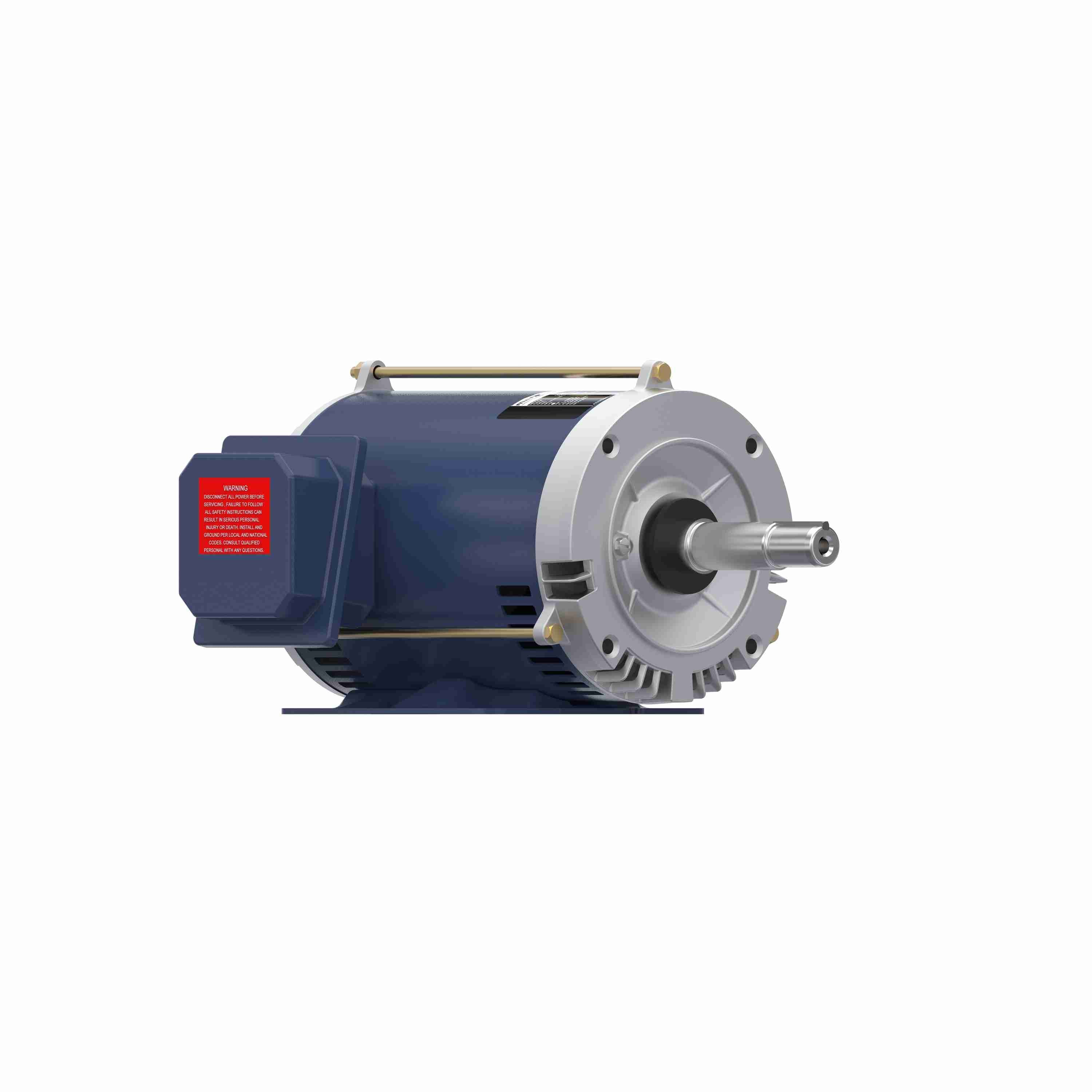

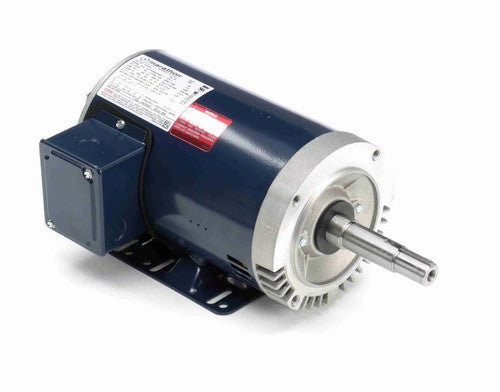

The MARATHON MOTORS GT0401A is a 1 hp, 3-phase motor operating at 1800 RPM with a 143JM frame and a voltage of 230/460V. Designed for continuous duty service on close coupled pumps, this motor features a rigid base with a JM shaft and an open drip proof (ODP) enclosure. It includes a wiring diagram on the motor name plate.

• Designed for continuous duty service on close coupled pumps
• Rigid base with JM shaft
• Open drip proof (ODP)

Product Highlights

This motor is ideal for use with close-coupled pumps. It features a rigid base, JM shaft, and ODP enclosure.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: GT0401A

Technical Specifications

• Horsepower: 1 hp
• RPM: 1800
• Phase: 3 phase
• Frame: 143JM
• Voltage: 230/460V
• Enclosure: ODP (Open Drip Proof)
• Amps: 3.0/1.5
• Hertz: 60hz
• Shaft Diameter: 7/8"
• Shaft Length: 2 1/4"
• Service Factor: 1.15
• Overload Protection: None
• Mounting: Rigid Base
• Bearings: Ball bearings
• Insulation Class: Class F
• Application: Close Coupled Pumps
• Shaft Type: JM Shaft
• Motor Design: Reversible
• Wiring Diagram: On motor name plate
