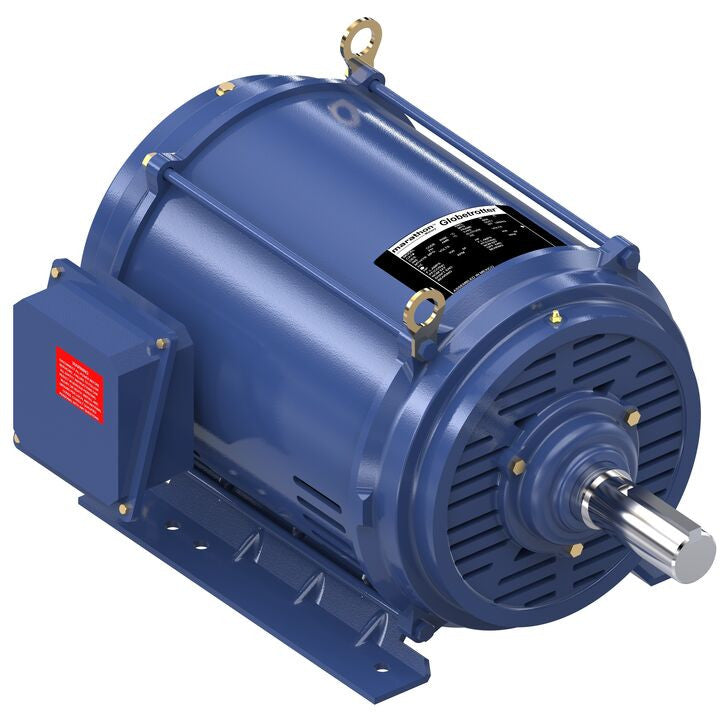

Marathon Motors GT0067-P Globetrotter General Purpose Motor 30 HP

Product Description

The MARATHON MOTORS GT0067-P is a Globetrotter general purpose motor. This three-phase DP motor is NEMA premium efficient and used on compressors, pumps, conveyors, blowers, and other machinery in relatively clean and dry environments. Substantial energy savings can be realized when using these high efficiency motors.

• Meets or exceeds NEMA Premium efficiency
• Model is in compliance with EISA2007
• Class F Insulation

Product Highlights

This motor is designed for applications such as cooling towers, HVAC systems, conveyors, and packaging equipment.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: GT0067-P
• Country of Origin: MEXICO

Technical Specifications

• MPN: GT0067-P
• Brand: MARATHON MOTORS
• Inventory SKU: MGT0067-P
• Available Quantity: 1.0
• Application: General Purpose
• Output HP: 30
• Output KW: 22.4
• Output RPM: 1775
• Frame Size NEMA: 286T
• Mount NEMA: With Base
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• Voltage: 230/460
• Phase: 3
• Mounting: Rigid Base
• Enclosure: Drip Proof
• Service Factor: 1.15
• Frame: 286T
• Thermal Protection: No Protection
• Efficiency: 94.1
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 73/36.5 A
• Power Factor: 82
• Duty: Continuous
• Insulation Class: F
• Design Code: B
• KVA Code: G
• Drive End Bearing Size: 6311
• Opp Drive End Bearing Size: 6210
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 22
• Number of Speeds: 1
• Product Type: General purpose motor
• Speed: 1775 RPM
• Poles: 4
• Frame Material: Rolled Steel
• NEMA Design: B
• Degree of Protection (IP): IP22
• Rotation: Reversible
• Conduit Box Location: F1/F2
• Removable Feet: No
• Orientation: Horizontal
• DE Bearing: BALL
• NDE Bearing: BALL
• Shaft Diameter: 1.875"
• Hazardous Locations: CSA Certified Class 1 Division 2
• Agency Approvals: CSA, UL & CE
• Country of Origin: MEXICO
• Warranty: 3-Year
