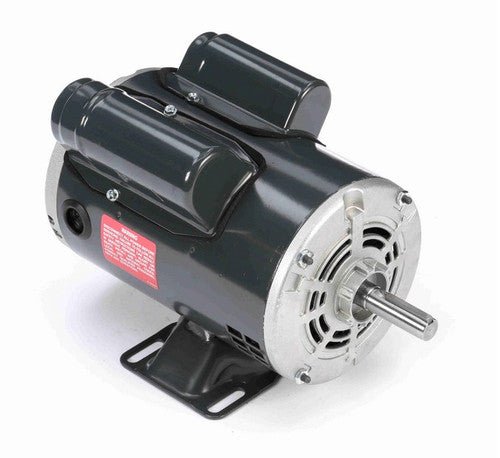

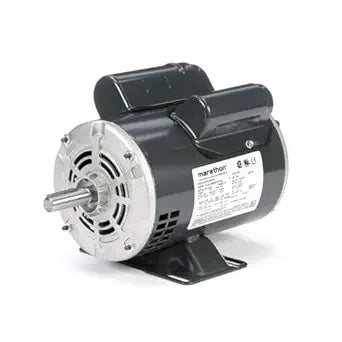

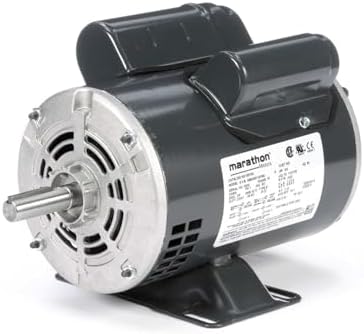

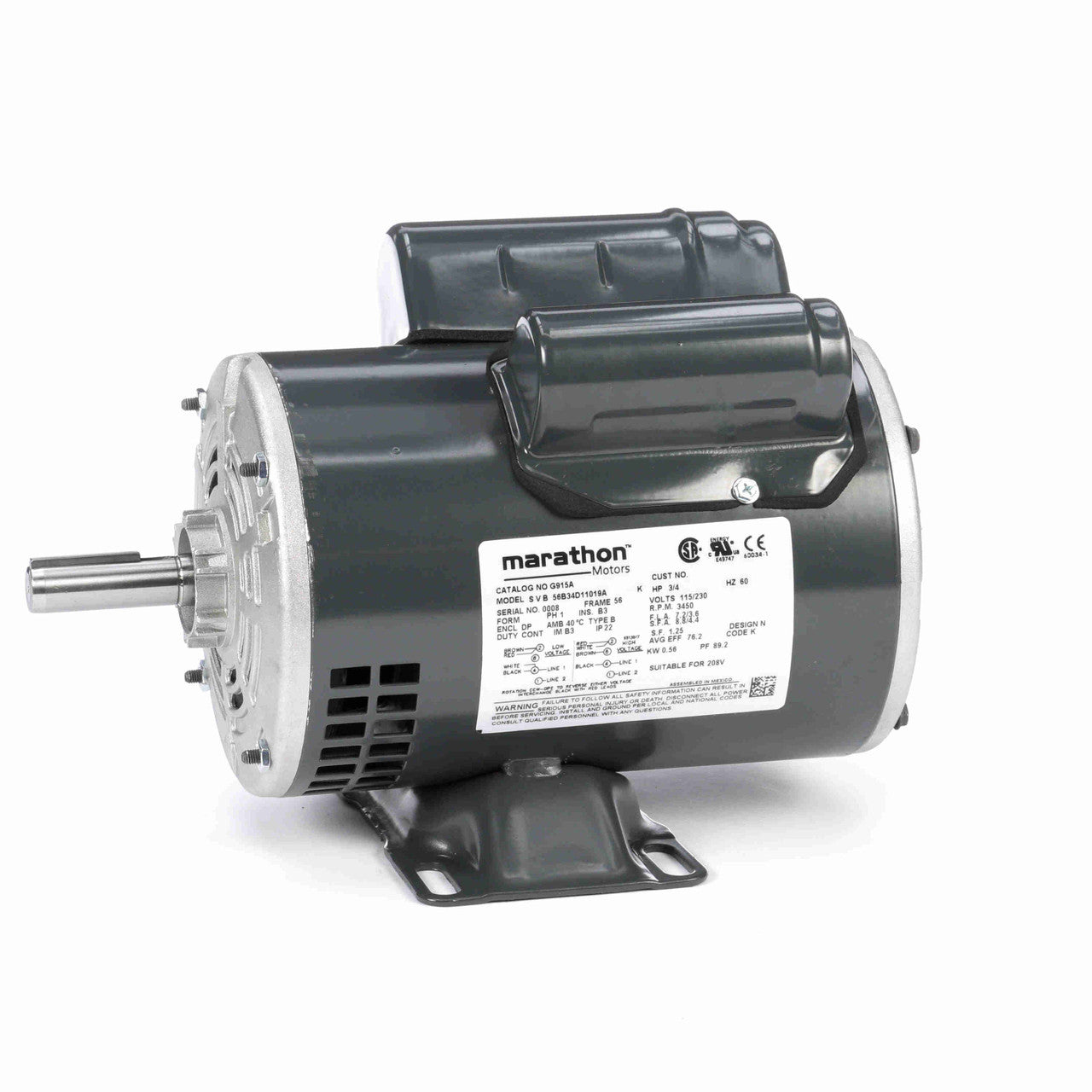

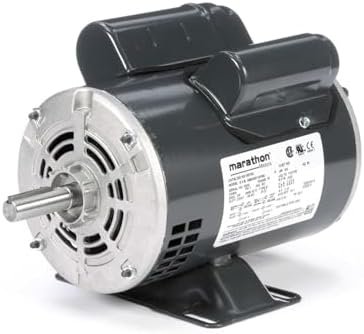

Marathon Motors G915A General Purpose Motor 3/4 hp

Product Description

The MARATHON MOTORS G915A is a 3/4 hp single phase general purpose electric motor with continuous duty rating. Features standard operating characteristics and mechanical construction for use under usual service conditions. This motor is not intended for outdoor use and has no overload protection.

• Heavy gauge steel frame and base
• Ball bearings
• UL Recognized and CSA Certified

Product Highlights

This general purpose motor can be used for many applications requiring a single phase electric motor.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: G915A
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 0.75 Hp
• Output KW: 0.56 kW
• Voltage: 115/230 V
• Speed: 3450 rpm
• Service Factor: 1.25
• Frame: 56
• Enclosure: Drip Proof
• Thermal Protection: No Protection
• Efficiency: 76.2 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 7.2/3.6 A
• Power Factor: 89.2
• Duty: Continuous
• Insulation Class: B
• Design Code: N
• KVA Code: K
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• IP Code: 22
• Number of Speeds: 1
• Application: General Purpose
• Mount NEMA: Base Mount
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• Shaft Diameter: 5/8"
• Shaft Length: 1 7/8"
• Overload Protection: None
• Mounting: Rigid Base
• Bearings: Ball Bearings
• Electrical Type: Capacitor Start Capacitor Run
• Starting Method: Across The Line
• Poles: 2
• Rotation: Selective Counterclockwise
• Motor Orientation: Horizontal
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Overall Length: 11.47 in
• Frame Length: 7.50 in
• Shaft Extension: 1.97 in
• Assembly/Box Mounting: F1 ONLY
• Brand: Regal Beloit
• Manufacturer: regalrexnord
