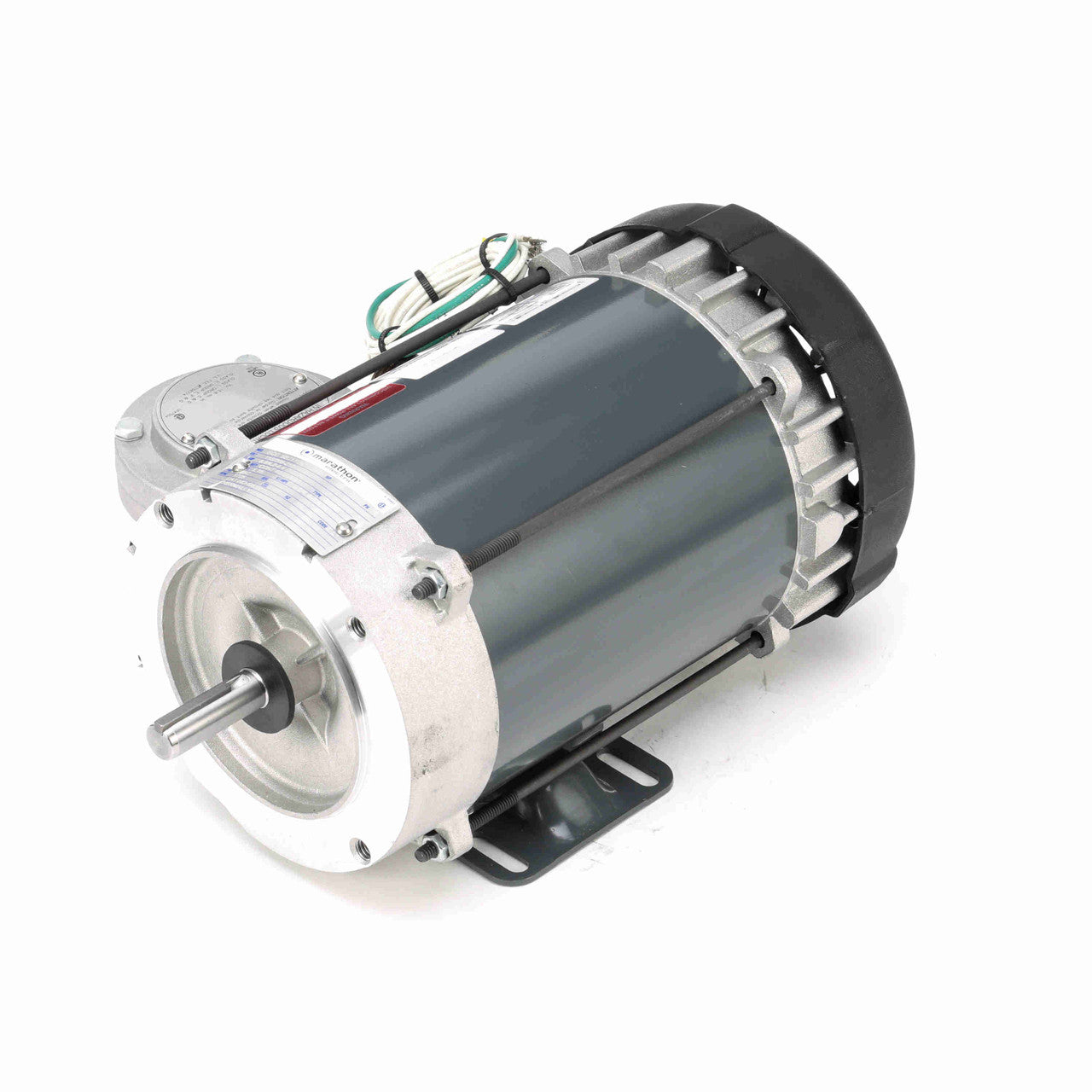

Marathon Motors G872 Explosion Proof Motor 1/2HP 115/208-230V 56C17G5328

Product Description

The Marathon Motors G872 explosion proof motor is ideal for applications where hazardous fumes or dust may be present. This motor is available in single phase with ratings from 1/4 HP through 300 HP. It features a C-Face Rigid mounting location and automatic thermal protection.

• Hazardous Duty motor
• Suitable for applications where hazardous fumes or dust may be present
• Available in three phase and single phase

Product Highlights

This explosion proof motor is designed for hazardous environments with explosive gases or materials. UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: G872
• Country of Origin: US

Technical Specifications

• Brand: Marathon Motors
• Frame: 56C
• Hertz: 60 Hz
• Phase: 1
• IP Code: 54
• Voltage: 115/208-230 V
• Enclosure: EPFC
• RPM Range: 1701-1800 rpm
• Horsepower: 1/2 HP
• 60 Hertz kW: 0.37 kW
• Orientation: Horizontal
• Starting Type: Cap Start Ind Run
• UL: UL Listed
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Full Load Amps: 8.8/4.4-4.2 FLA
• Service Factor: 1.15
• Insulation Class: F (Max 311°F)
• Bearing Drive End: 6203
• Mounting Location: C-Face Rigid
• Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3B
• Motor RPM 60 Hertz: 1800 rpm
• Thermal Protection: Automatic Protector
• Ambient Temperature: 40 °C
• Manufacturers Part Number: G872
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: Ball
• RPM: 1800 rpm
• Duty: Continuous
• NEMA Design: B
• CE Approved: N
• MPN: G872
• Electrical Type: Cap Start
• Diameter: 6.5"
• Material: Rolled Steel
• Mounting: C-Face / Footed
• Shaft Type: Keyed
• Output HP: 0.50 Hp
• Output KW: 0.37 kW
• Speed (RPM): 1725 rpm
• Frame Size: 56C
• Current: 8.8/4.4 A
• Power Factor: 58
• CSA: Y
• Number of Speeds: 1
• Application: Explosion Proof
• Frame NEMA: 56C
• Mount NEMA: C-Face With Base
• Enclosure NEMA: EPFC
• Enclosure IEC: IP54
• Rated Load (HP): 1/2
• AC Frequency Rating: 60 Hz
• Special Motor Construction: Hazardous Location Motor
• Base RPM: 1800
• AC Motor Type: Induction/Asynchronous
• Shaft Diameter: 5/8 in
• Mounting Type: Base-Mounted, Face-Mounted, Foot-Mounted
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• IP Rating: IP54
• Model: G872
• Nominal Rated Input Voltage: 115 V, 208 V, 230 V
• NEMA Frame Suffix: C
• AC Phase: Single Phase
• Catalog#: G872
• Manufacturer: Marathon
• Amps: 8.8/4.2-4.4
• Bearings: Ball
• Duty Cycle: Continuous
• Efficiency: 0.66
• Enclosure Material: Steel
• Manufacturer Model #: 056C17G5328
• Maximum Ambient Temperature: 40° C
• Motor Shell Length: 6.81"
• Mounting Orientation: Horizontal
• Base: Base
• Overall Length: 13.94"
• Product Type: Capacitor Start
• Shaft Length: 2.06"
• Volts: 230
