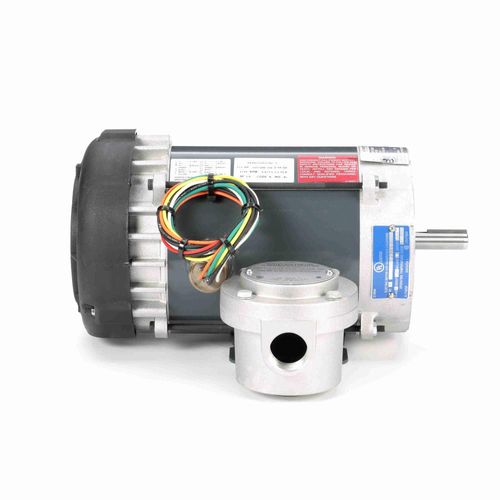

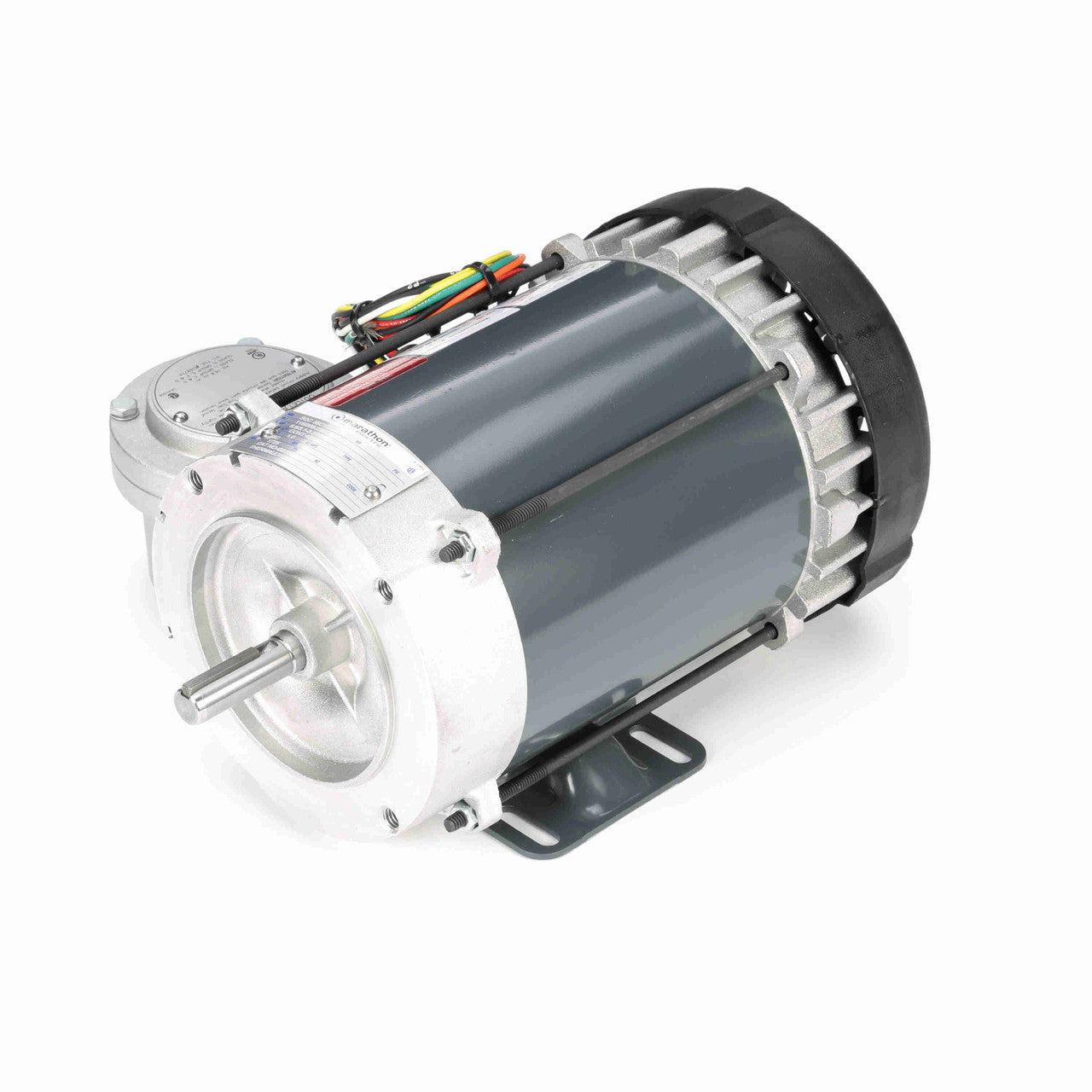

Marathon Motors G871 Explosion Proof Motor 1/3HP 115/208-230V

Product Description

The MARATHON MOTORS G871 is an explosion-proof motor ideal for applications where hazardous fumes or dust may be present. This single-phase motor has a horsepower of 1/3 HP and operates at 115/208-230V. It features a 56C frame, EPFC enclosure, and operates at 1800 RPM. Designed for continuous duty and horizontal orientation.

• Explosion Proof enclosure for hazardous environments
• Operates at 115/208-230V with a 1/3 HP
• Designed for continuous duty

Product Highlights

This explosion-proof motor is suitable for environments with explosive gases or materials. It features a capacitor start design for high starting torque and includes an explosion-proof conduit box.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: G871

Technical Specifications

• Brand: Marathon Motors
• Frame: 56C
• Hertz: 60 Hz
• Phase: 1
• Voltage: 115/208-230 V
• Is_Motor: Yes
• KVA Code: N
• Enclosure: EPFC
• RPM Range: 1701-1800 rpm
• Horsepower: 1/3 HP
• 60 Hertz kW: 0.25 kW
• Orientation: Horizontal
• Starting Type: Cap Start Ind Run
• Enclosure Type: Explosion Proof
• Full Load Amps: 6.6/3.1-3.3 FLA
• Service Factor: 1
• Insulation Class: B
• Bearing Drive End: 6203
• Mounting Location: C-Face Rigid
• Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3B
• Motor RPM 60 Hertz: 1800 rpm
• Thermal Protection: Automatic Protector
• Ambient Temperature: 40 °C
• Full Load Efficiency: 55
• NEMA Design: N
• Manufacturers Part Number: G871
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: Ball
• RPM: 1800 rpm
• Duty: Continuous
• UL: UL Listed
• Electrical Type: Cap Start
• Speed: 1725 rpm
• Material: Rolled Steel
• Mounting: C-Face / Footed
• Output HP: 0.33 Hp
• Output KW: 0.25 kW
• Frequency (Hz): 60
• Number of Speeds: 1
• CSA: Y
