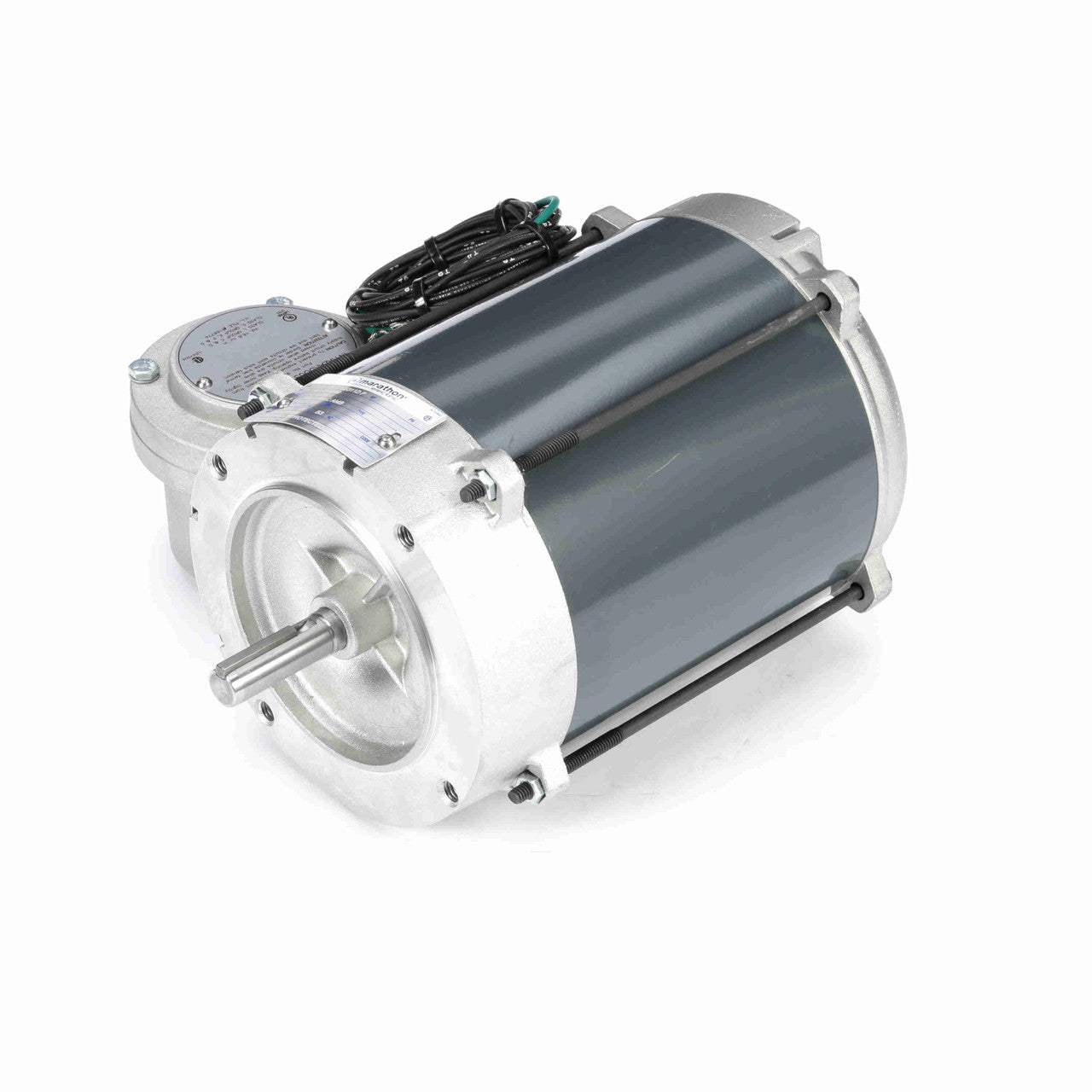

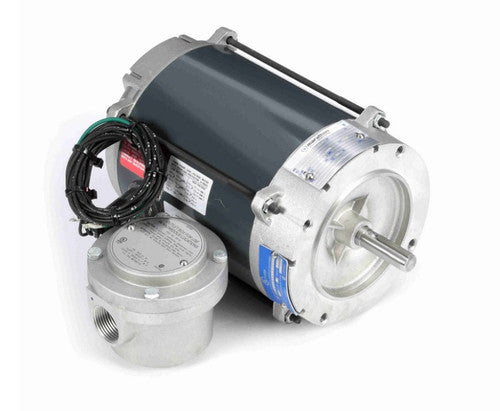

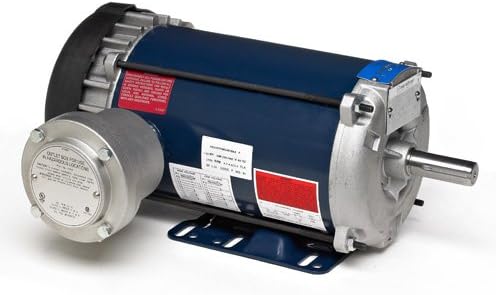

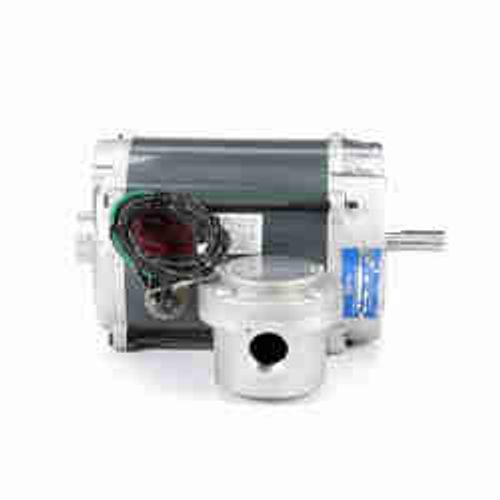

Marathon Motors G828 Explosion Proof Motor 1/3HP 208-230/460V

Product Description

The MARATHON MOTORS G828 explosion proof motor is ideal for applications where hazardous fumes or dust may be present. This three-phase motor delivers 1/3 HP and operates at 208-230/460V. It is designed for continuous duty and features automatic thermal protection.

• Hazardous Duty motor
• Explosion Proof
• C-Face Footless

Product Highlights

This explosion-proof motor is suitable for hazardous environments, offering reliable performance and safety.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: G828

Technical Specifications

• Brand: Marathon Motors
• Frame: 56C
• Hertz: 60 Hz
• Phase: 3
• IP Code: 54
• Voltage: 208-230/460 V
• KVA Code: J
• Enclosure: EPNV
• RPM Range: 1701-1800 rpm
• Horsepower: 1/3 HP
• 60 Hertz kW: 0.25 kW
• Orientation: Horizontal
• 60 Hertz RPM: 1800 rpm
• Starting Type: Across the Line
• Enclosure Type: Explosion Proof
• Full Load Amps: 1.3-1.2/.6 FLA
• Service Factor: 1
• Insulation Class: B
• Bearing Drive End: 6203
• Mounting Location: C-Face Footless
• Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3B
• Motor RPM 60 Hertz: 1800 rpm
• Thermal Protection: Automatic Protector
• Ambient Temperature: 40 °C
• Manufacturers Part Number: G828
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: Ball
• RPM: 1800 rpm
• Duty: Continuous
• UL: UL Listed
• CE Approved: N
• NEMA Design: No Design Code
• Electrical Type: Three Phase
• Speed (RPM): 1725 rpm
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Mounting: C-Face / Footless
• Amperage: 1.2-1.2/0.60
• Shaft Type: Single
• Output HP: 0.33 Hp
• Output KW: 0.25 kW
• Frame Size: 56C
• Current: 1.2/0.60 A
• Power Factor: 71
• Design Code: B
• CSA: Y
• Number of Speeds: 1
• Motor Category: Severe Duty Motor
• Motor Phase: 3 ph
• Motor Horsepower: 0.33 hp, 1/3 hp
• Synchronous RPM: 1800 rpm
• Motor Supply Voltage: 208-230/460 V
• Frequency Rating: 60 Hz
• Duty / Condition Type: Continuous Duty, Hazardous Location, Severe Duty
• Mounting Type: Footless / C-Face Flange
• Full Load Current: 1.30–1.20 / 0.60 A
• Full Load Efficiency: 74.00 %
• Shaft Diameter: 0.63 in
• Overall Length (C-Dimension): 11.97 in
• Frame Material: Rolled Steel
• IP Rating: 54
• Standards Met: UL, CSA
• Temperature Code: T3B
• Group & Class: Class I - Group C & D, Class II - Group F & G
• Shaft Length: 1.875 in
• Bearings: Ball Bearings
