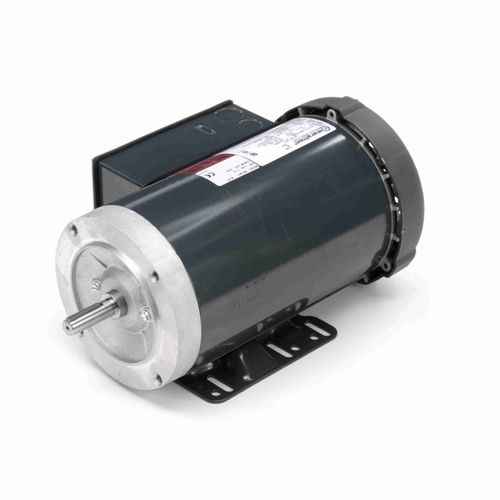

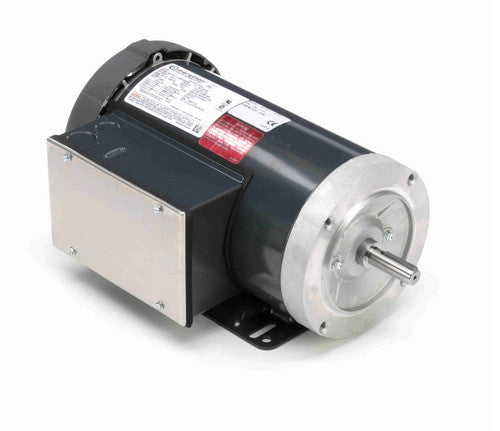

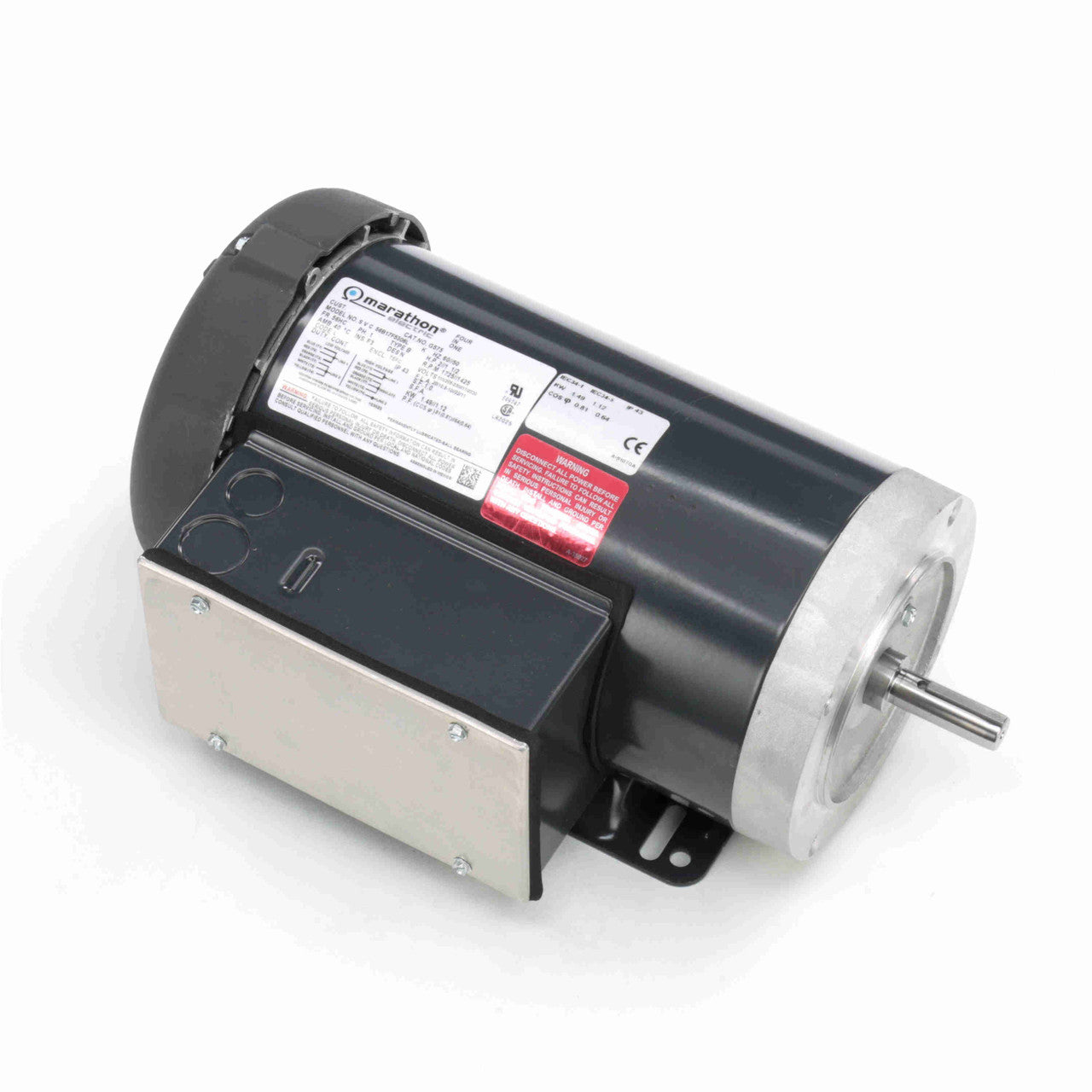

Marathon Motors G575 General Purpose Motor 2HP-1 1/2HP 1800RPM 115/208-230V 56HC FR TEFC

Product Description

The MARATHON MOTORS G575 is a single phase general purpose motor available in ODP and TEFC construction. This motor is foot mounted and footless, with horsepower sizes ranging from 1/12 HP through 15 HP. It features a 56HC frame, and operates at 115/208-230V.

• Single Phase
• ODP and TEFC construction
• Foot Mounted and Footless

Product Highlights

This general purpose motor is designed for use in various applications requiring a single phase electric motor with a C-face mount.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: G575
• Country of Origin: United States

Technical Specifications

• Brand: Marathon Motors
• Frame: 56HC
• Phase: 1
• Voltage: 115/208-230 V
• Is_Motor: Yes
• KVA Code: L
• Rotation: Reversible
• Enclosure: TEFC
• RPM Range: 1701-1800 rpm
• Horsepower: 2 HP
• 60 Hertz kW: 1.49 kW
• Orientation: Horizontal
• Nameplate RPM: 1800 rpm
• Starting Type: Cap Start Ind Run
• Enclosure Type: Totally Enclosed
• Full Load Amps: 20/10.8-10 FLA
• Service Factor: 1
• Insulation Class: B
• Bearing Drive End: 6205
• Mounting Location: C-Face Removable Base
• Motor RPM 60 Hertz: 1800 rpm
• Ambient Temperature: 40 °C
• Full Load Efficiency: 80
• Bearing Opp Drive End: 6203
• CE Approved: Y
• NEMA Design: N
• CSA Certified: Y
• Manufacturers Part Number: G575
• Drive End Bearing Size: 6205
• Opposite End Bearing Size: 6203
• MPN: G575
• Inventory SKU: MG575
• RPM: 1725
• Material: Rolled Steel
• Mounting: Bolt-on Base
• Shaft Type: Single
• Totally Enclosed Fan Cooled: Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 80 & 72 %
• Frequency: 60 & 50 Hz
• Current: 20/10.8-10 & 22/11 A
• Power Factor: 81
• Duty: Continuous
• Design Code: N
• UL: Recognized
• Enclosure NEMA: TEFC
• Enclosure IEC: IP43
• Number of Speeds: 1
• NEMA Frame: 56HC
• Mount NEMA: C-Face With Base
• Full Load Torque: 6.02
• Maximum Horsepower: 2
• Hazardous Materials: No, oK to Ship Via Air
• Material Safety Data Sheet (MSDS) Required: No
• Country of Origin: United States
• TAA Compliant: Yes
• UNSPSC: 26100000
• UPC: 722856075758
• CA Restricted (Prop 65): Unknown
• Electrical Type: Cap Start
• Amps: 20.0/10.8-10.0
• Hertz: 60hz
• Motor Type: Capacitor Start Capacitor Start
• Shaft: Keyed Shaft 5/8" Diameter x 1 7/8"
• Base: Removable
• Bearings: Ball Bearings
• Warranty: 1 Year Manufacture Warranty
