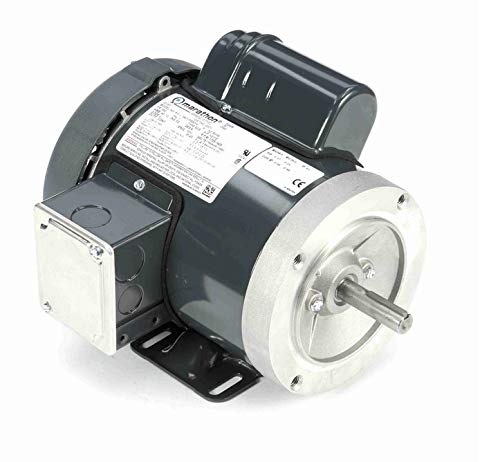

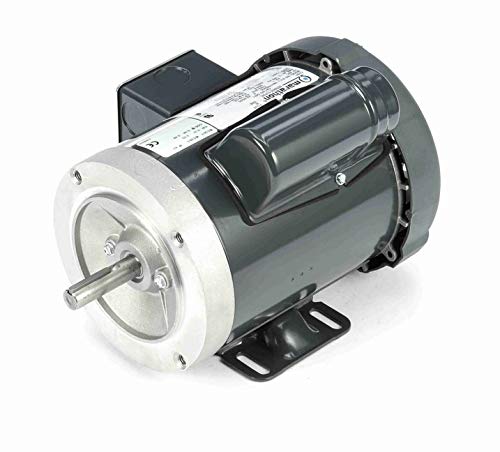

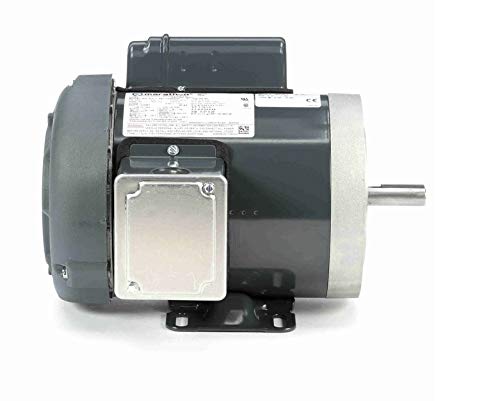

Marathon Motors G571 General Purpose Motor 1/2 HP 1725 RPM 115/208-230V Replacement G571

Product Description

The Marathon Motors G571 is a robust general purpose motor designed for a wide range of industrial applications. This motor features a power output of 1/2 horsepower and operates at 1725 RPM with dual voltage capabilities of 115/208-230 volts.

• Dual voltage design for versatile power supply options.
• TEFC enclosure to ensure durable operation in various environments.
• Compact 56C frame size for installation in tight spaces.

Product Highlights

Known for its reliability and efficiency, the G571 is suited for driving machinery such as pumps, compressors, and fans. It offers consistent performance with a design focused on longevity and minimal maintenance requirements.

Product Information

Standard Information

• Brand: Marathon Motors
• Model: G571

Technical Specifications

• Power Output: 1/2 HP
• Speed: 1725 RPM
• Voltage: 115/208-230V
• Enclosure Type: TEFC
• Frame Size: 56C
• Phase: Single
• Frequency: 60 Hz

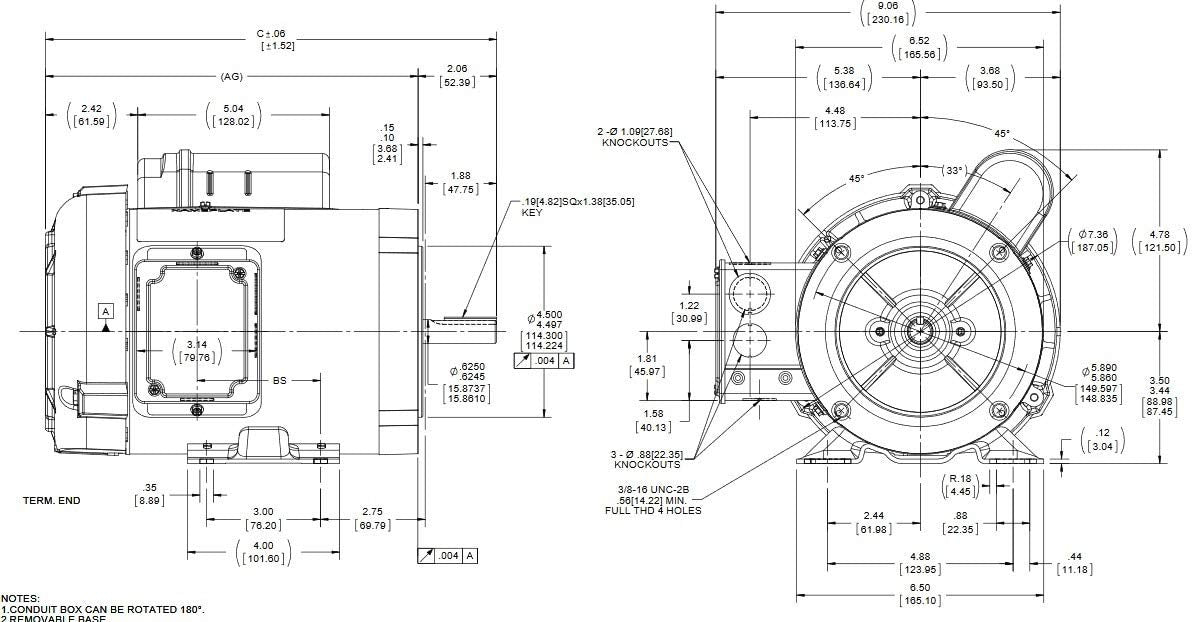

• Shaft Dimensions: 5/8 x 1-7/8 inches
• Weight: 24.53 lbs
