Marathon Motors G1115 Fan & Blower Motor 1/4 Hp 1725 Rpm Replacement MPN

Product Description

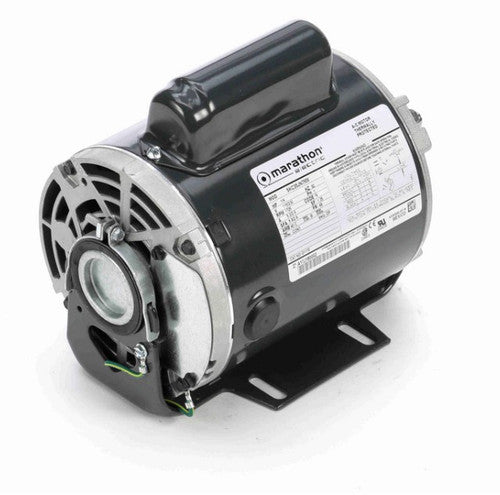

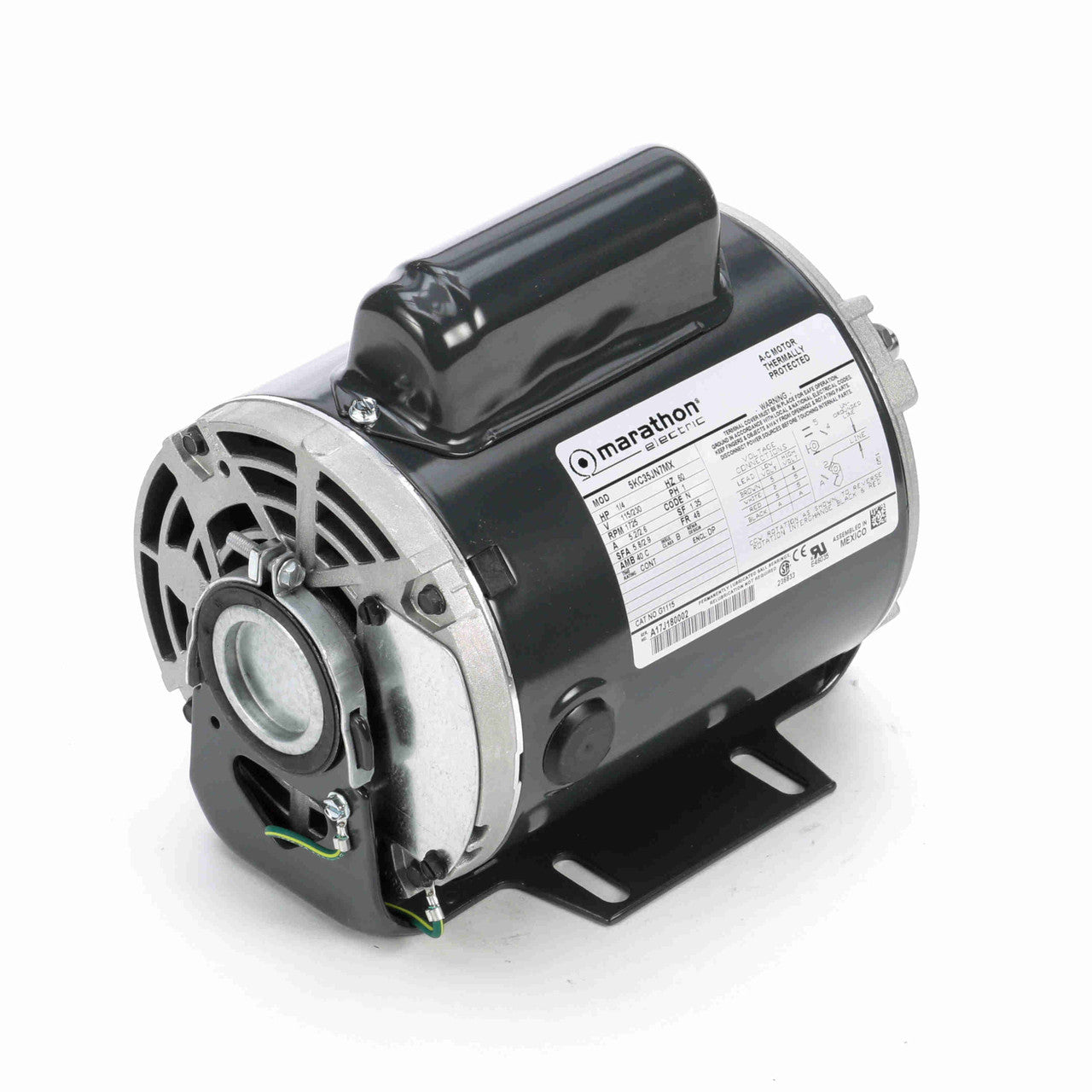

The Marathon Motors G1115 is a 1/4 horsepower motor working at 1725 rpm, compatible with voltages of one hundred fifteen and two hundred thirty volts. This single-phase motor features a drip-proof design and has automatic thermal protection, making it reliable for various applications. The motor is designed for continuous duty and utilizes a resilient base, making it suitable for fan and blower applications.

• Capacitor Start
• Fan & Blower Motor
• Auto Overload Protection

Product Highlights

The G1115 is specifically built for continuous operation and ensures safety through automatic thermal protection.

Product Information

Standard Information

• Phase: 1
• Output HP: 0.25 Hp

Technical Specifications

• Output KW: 0.19 kW
• Voltage: 115/230 V
• Speed (RPM): 1725 rpm
• Service Factor: 1.35
• Frame Size: 48
• Enclosure: Drip Proof
• Thermal Protection: Automatic
• Efficiency: 55 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 5.2 A, 2.6 A
• Duty: Continuous
• Insulation Class: B
• KVA Code: N
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Yes
• Number of Speeds: 1
• Mounting: Rigid Base
• Base: Resilient Base
• Rotation: Reversible
• Bearings: Ball Bearings
• Shaft: Keyed Shaft one and one-half inch x one-half inch Diameter
• Manufacturer: Marathon Motors
• Part Number: G1115
