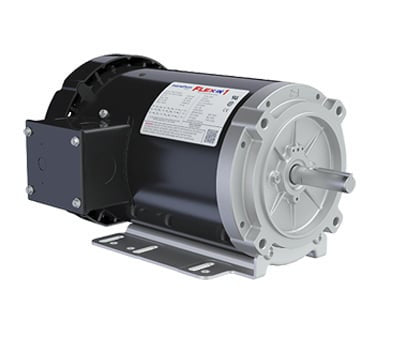

Marathon Motors FX34FK002 motor 3/4HP 1725RPM

Product Description

The MARATHON MOTORS FX34FK002 is a 3/4HP three-phase general-purpose motor designed for gear reducers, pumps, machine tools, and other direct-coupled equipment in relatively clean and dry environments. It operates at 1725RPM with a 575V voltage. The motor features a 56HC NEMA frame size and a DP enclosure.

• One FLEX-IN-1�� motor replaces 18 general purpose motors
• The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
• Out-of-the-box motor with provisions for multiple kits***

Product Highlights

This Marathon motor is ideal for various applications requiring a reliable and adaptable power source. Its FLEX-IN-1 design offers versatile mounting options.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: FX34FK002

Technical Specifications

• Brand: Marathon
• Application: General Purpose
• Output HP: 3/4
• Output KW: 0.55
• Output RPM: 1725
• Frame Size NEMA: 56HC
• Mount NEMA: C Face Bolt-on Base
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• Voltage: 575
