MARATHON MOTORS FX34BK005 Electric Motor 3/4 HP 208-230/460V Replacement MPN

Product Description

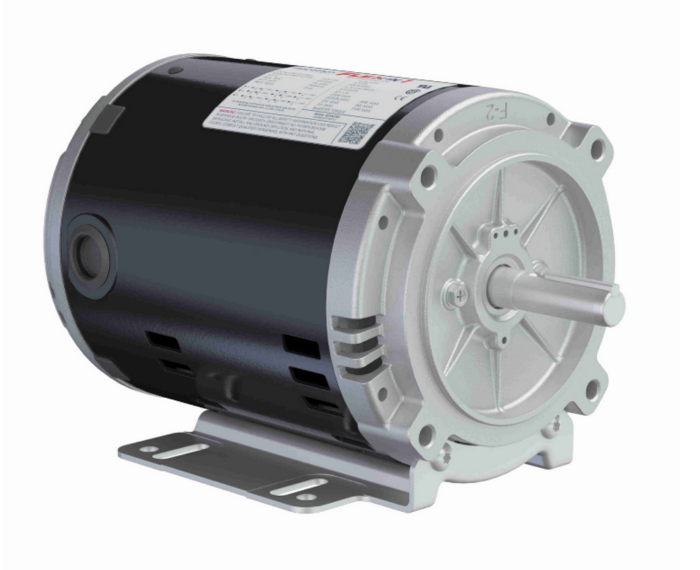

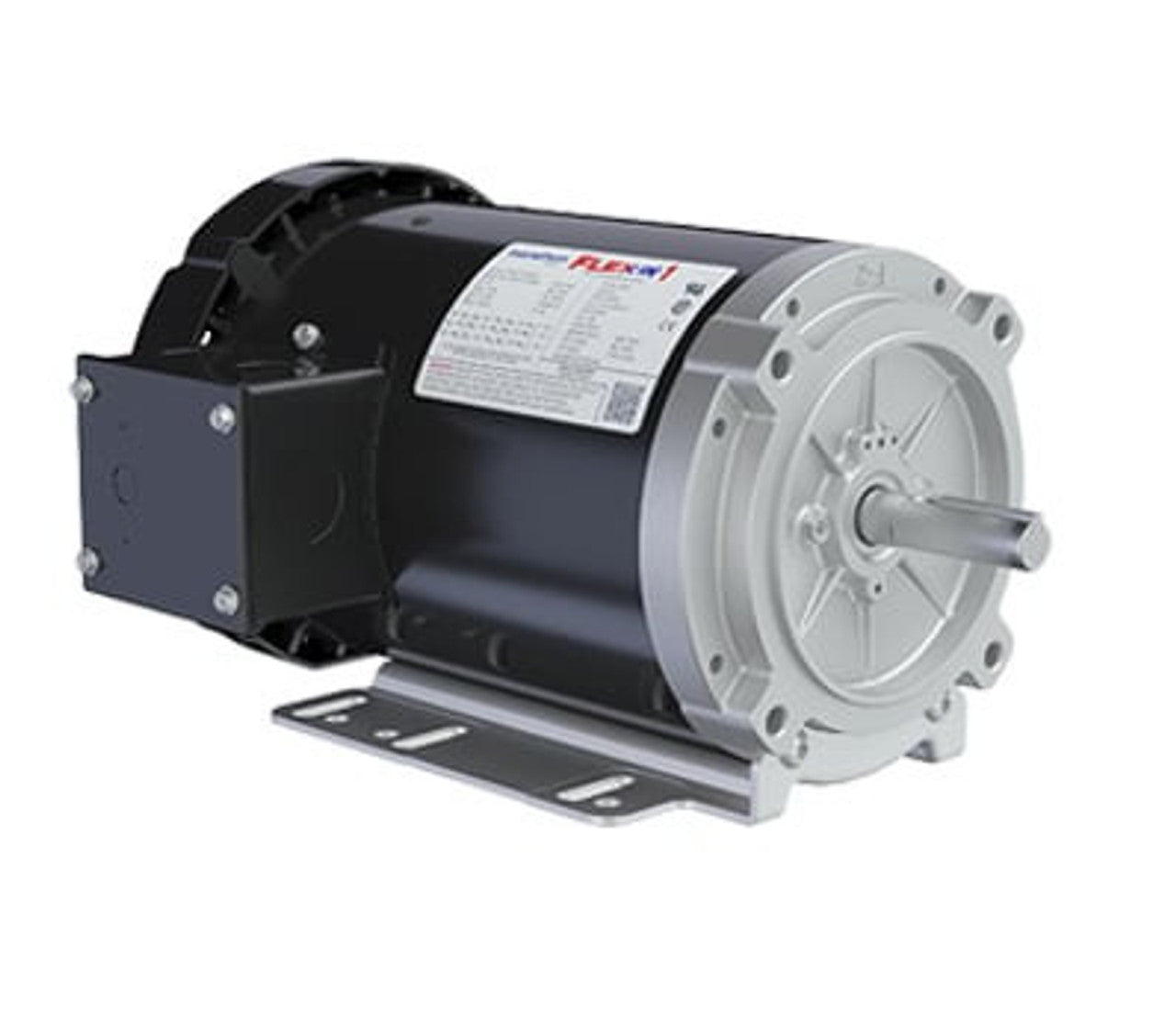

The MARATHON MOTORS FX34BK005 is a three-phase electric motor designed for durability and performance. It has a power rating of three-quarters horsepower and operates at a speed of one thousand two hundred RPM. This motor functions at input voltages of two hundred eight to two hundred thirty or four hundred sixty volts and operates at both fifty and sixty hertz. The motor features a 56HC frame and is manufactured with a Totally Enclosed Fan Cooled design, ensuring effective operation and longevity.

• Suitable for inverter duty applications.
• Designed with double-sealed ball bearings.
• Includes a repositionable bolt-on base and a C-Face for various mounting options.

Product Highlights

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: FX34BK005

Technical Specifications

• Horsepower: 0.75 HP
• Speed: 1200 RPM
• Input Voltage: 208-230/460V
• Full Load Amps: 2.75-2.8/1.4
• Frequency: 50/60Hz
• Phase: 3
• Frame Size: 56HC
• Enclosure: TEFC
• Inverter Duty: 10:1 CT
• Insulation Class: F
• Mounting Type: C-Face with Base
• Shaft Diameter: 5/8
• Overall Length: 13-3/4
• Shaft Length: 1-7/8
• Weight: 44 lbs
• Service Factor: 1.15
• Mount: F1
