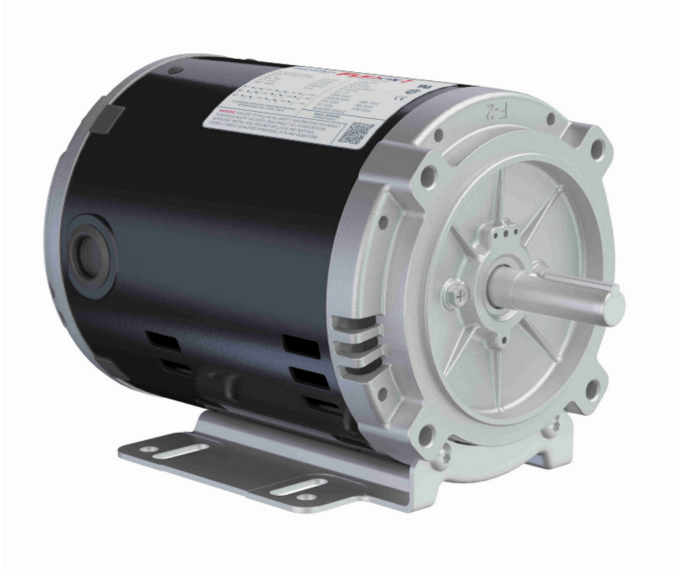

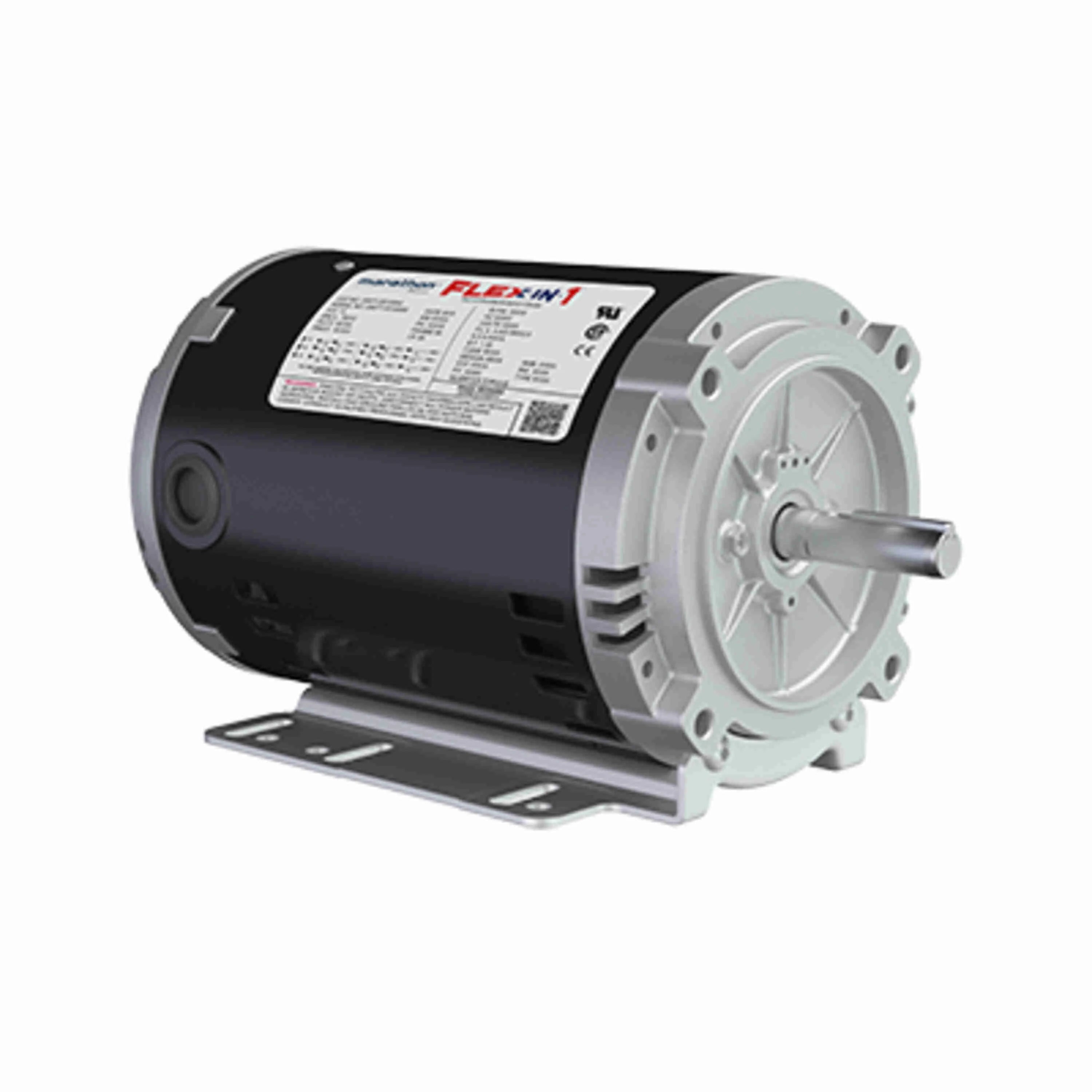

Marathon Motors FX34BK001 General Purpose Motor 0.75 HP

Product Description

The Marathon Motors FX34BK001 is a three-phase electric motor made for general-purpose tasks. This motor is appropriate for clean and dry areas, making it a good choice for gear reducers, pumps, and machine tools.

• Rated for 208-230/460V three-phase power input.
• Offers multiple mounting configurations for easy installation.
• Capable of being used with direct coupled equipment.

Product Highlights

This motor is designed to replace various general-purpose motors and supports different mounting styles.

Product Information

Standard Information

• Brand: Marathon Motors
• Manufacturer Part Number: FX34BK001

Technical Specifications

• Power: 0.75 HP
• Output Power: 3/4 HP
• Output KW: 0.55
• Motor Design: 3-Phase
• Phase: 3 Phase
• Output RPM: 3450 RPM
• Frequency: 60 Hz
• Input Voltage: 208-230/460V
• Full Load Amps: 2.5-2.6/1.3
• Frame Size: 56HC
• Enclosure: Dripproof
• Efficiency: 82.5
• Shaft Diameter: 5/8
• Shaft Length: 1-7/8
• Overall Length: 11
