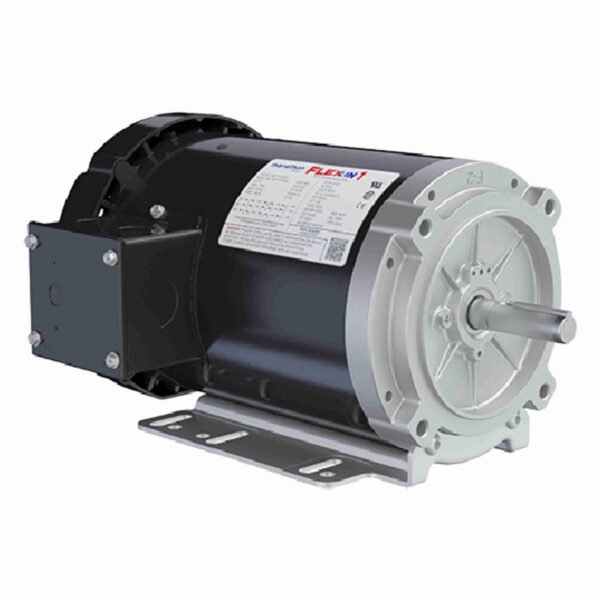

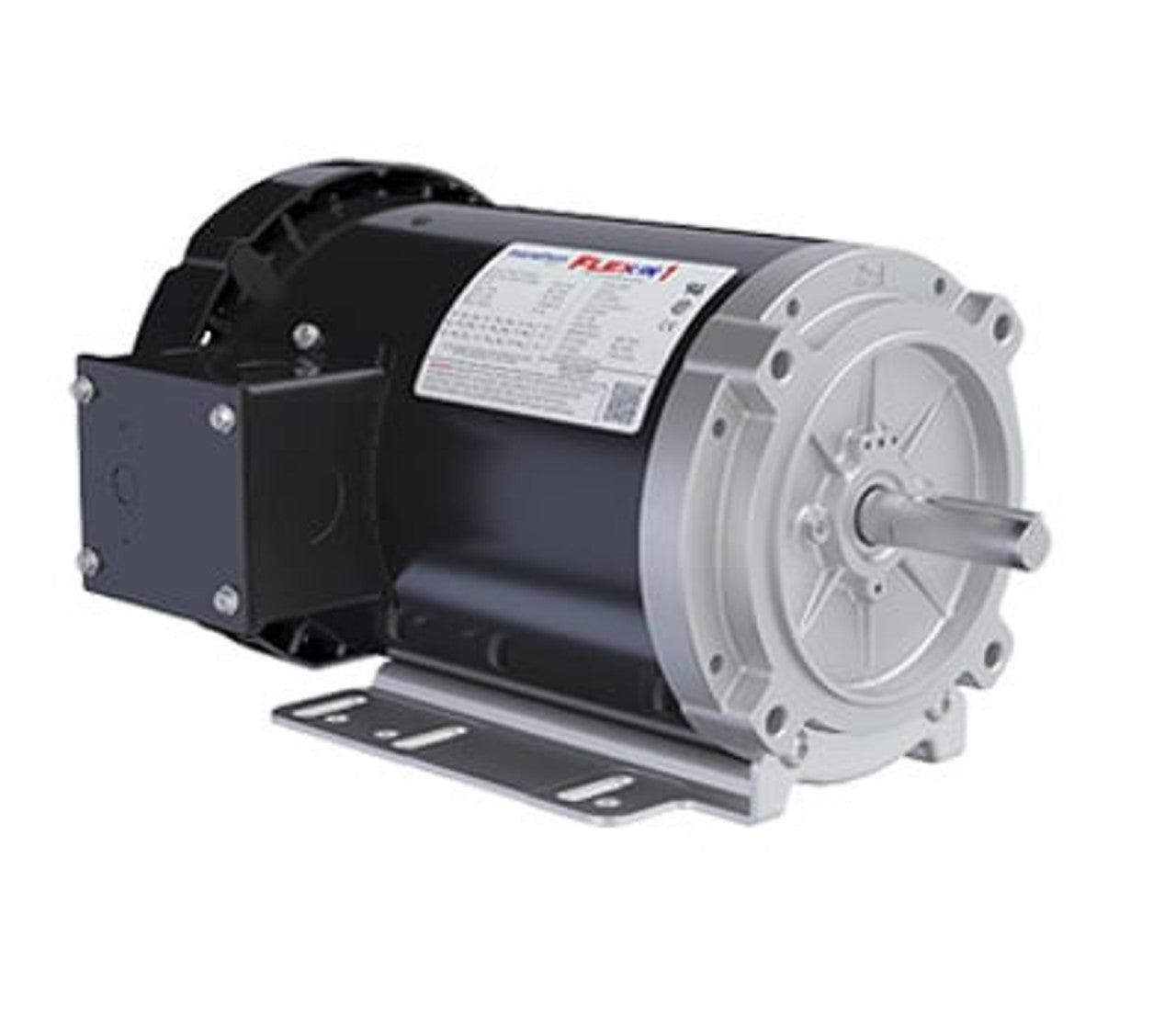

Marathon Motors FX32BK002 General Purpose Motor 1.5 HP TEFC

Product Description

The Marathon Motors FX32BK002 is a three-phase general-purpose motor with a power rating of 1.5 HP. It is designed with a 56HC frame and a TEFC enclosure, making it suitable for various applications including gear reducers, pumps, and machine tools. The motor operates efficiently in relatively clean and dry environments, featuring a keyed shaft and an inverter-ready design.

• 1.5 HP with a maximum speed of 3600 RPM
• TEFC enclosure for durability

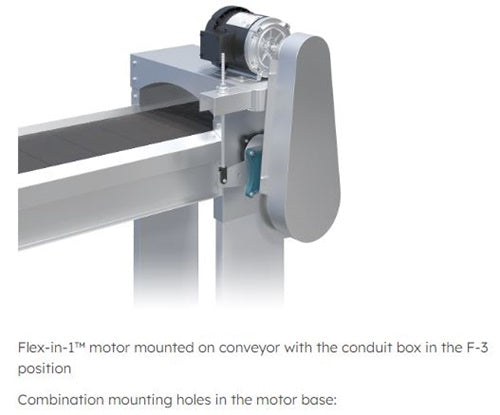

• Flexible mounting options with FLEX-IN-1 design

Product Highlights

This motor is ideal for use in various direct-coupled industrial equipment.

Product Information

Standard Information

• Brand: Marathon Motors
• Manufacturer: Regal Rexnord Commercial

Technical Specifications

• MPN: FX32BK002
• Motor Design: 3-Phase
• Rated Power: 1.5 HP
• Output Power: 1.1 kW
• Voltage: 208-230/460V
• Speed: 3600 RPM
• Full Load Amperage: 4.0/2.0 A
• Frequency: 60 Hz
• Frame Size: 56HC
• Enclosure Type: TEFC
• Mounting Type: Rigid Base, Removable, C-Face with Base
• Shaft Diameter: 5/8 inches
• Shaft Length: 1-7/8 inches
• Rotation: Reversible
• Service Factor: 1.15
• Ambient Temperature: 40 Degrees C
• Weight: 37 lbs
• Dimensions: 16.12 x 10.25 x 8.12 inches
• Application: General Purpose
