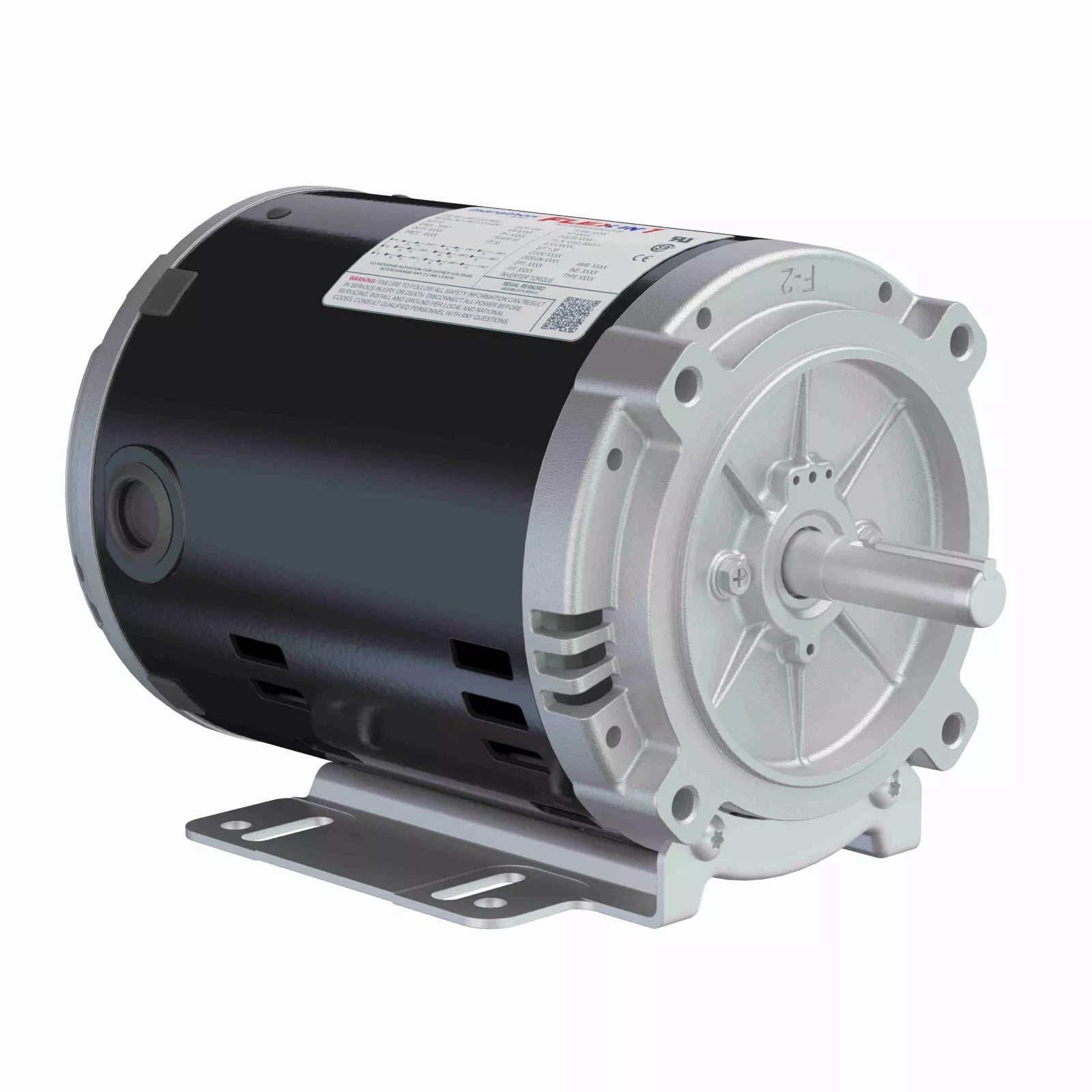

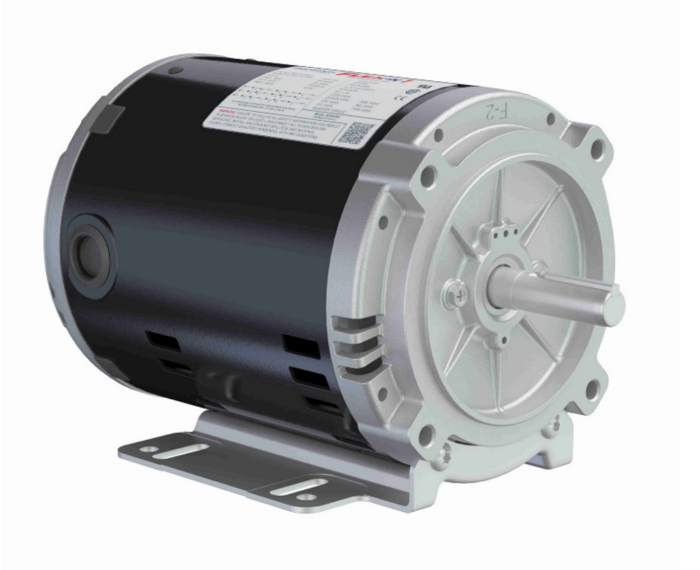

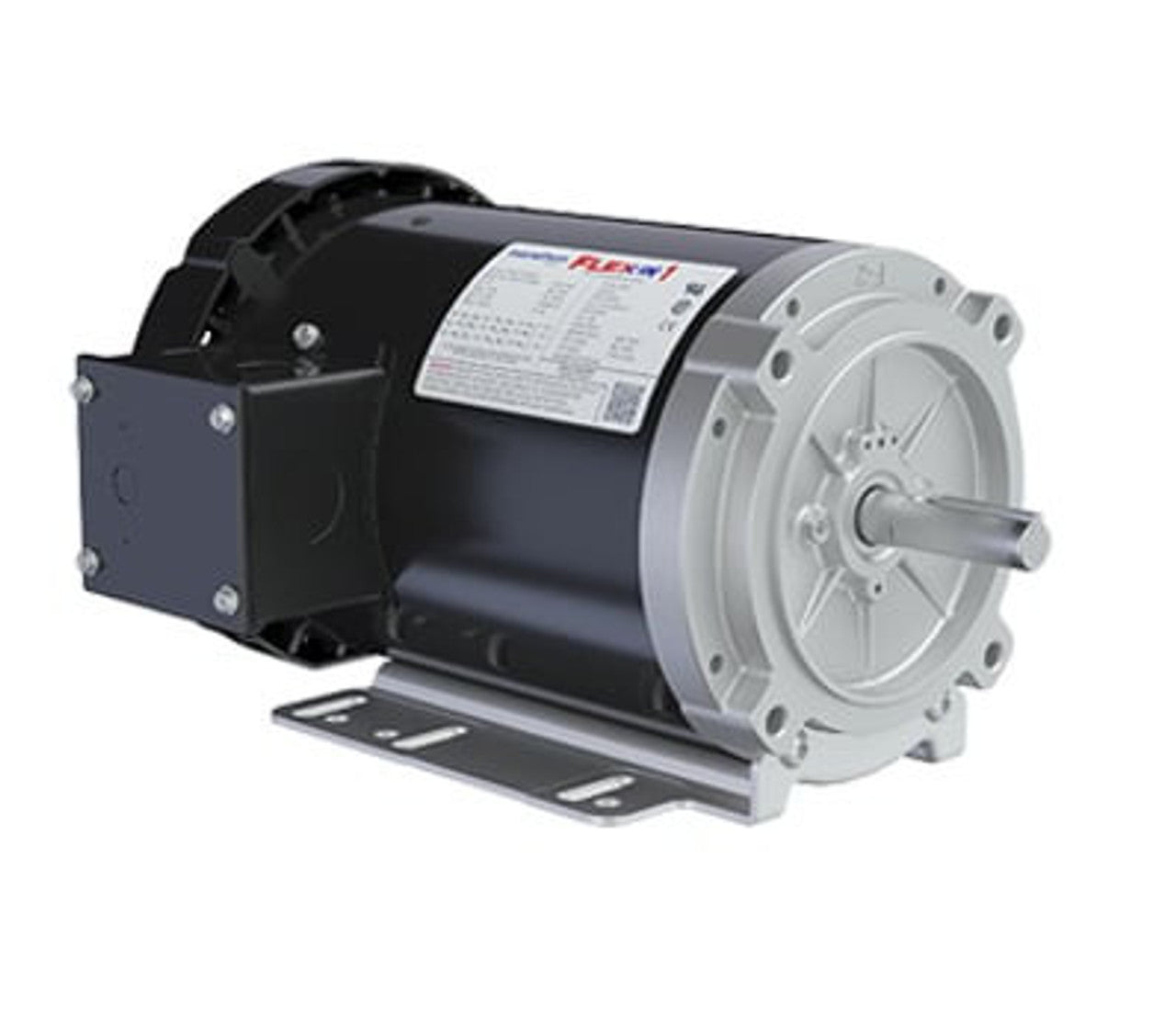

Marathon Motors FX32BK001 Electric Motor 1.5 HP ODP

Product Description

The Marathon Motors FX32BK001 is a three-phase electric motor designed for general-purpose applications. This motor has a horsepower rating of one point five HP and operates with a direct coupled setup in clean, dry environments. It includes a 56HC frame and an open dripproof enclosure. It supports various mounting configurations and features a keyed shaft.

• Rated for one point five HP at three thousand four hundred fifty to three thousand six hundred RPM.
• Compatible with 208-230/460V three-phase AC power at sixty Hertz.
• Features an IP22 open dripproof enclosure.

Product Highlights

The Marathon Motors FX32BK001 is sturdy, versatile, and efficient, making it suitable for many applications.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: FX32BK001

Technical Specifications

• Rated Load (HP): 1.5
• AC Phase: Three Phase
• Voltage: 208-230/460V
• AC Frequency Rating: 60 Hz
• Base RPM: 3600
• Output RPM: 3450
• Enclosure Type: ODP (Open Drip-Proof)
• Frame Size: 56HC
• Shaft Type: Keyed
• Shaft Diameter: 5/8 in
• Motor Design: 3-Phase
• Duty Cycle: Continuous
• Shaft Length: 1-7/8 in
• Overall Length: 12 in
• Efficiency: 84.5
