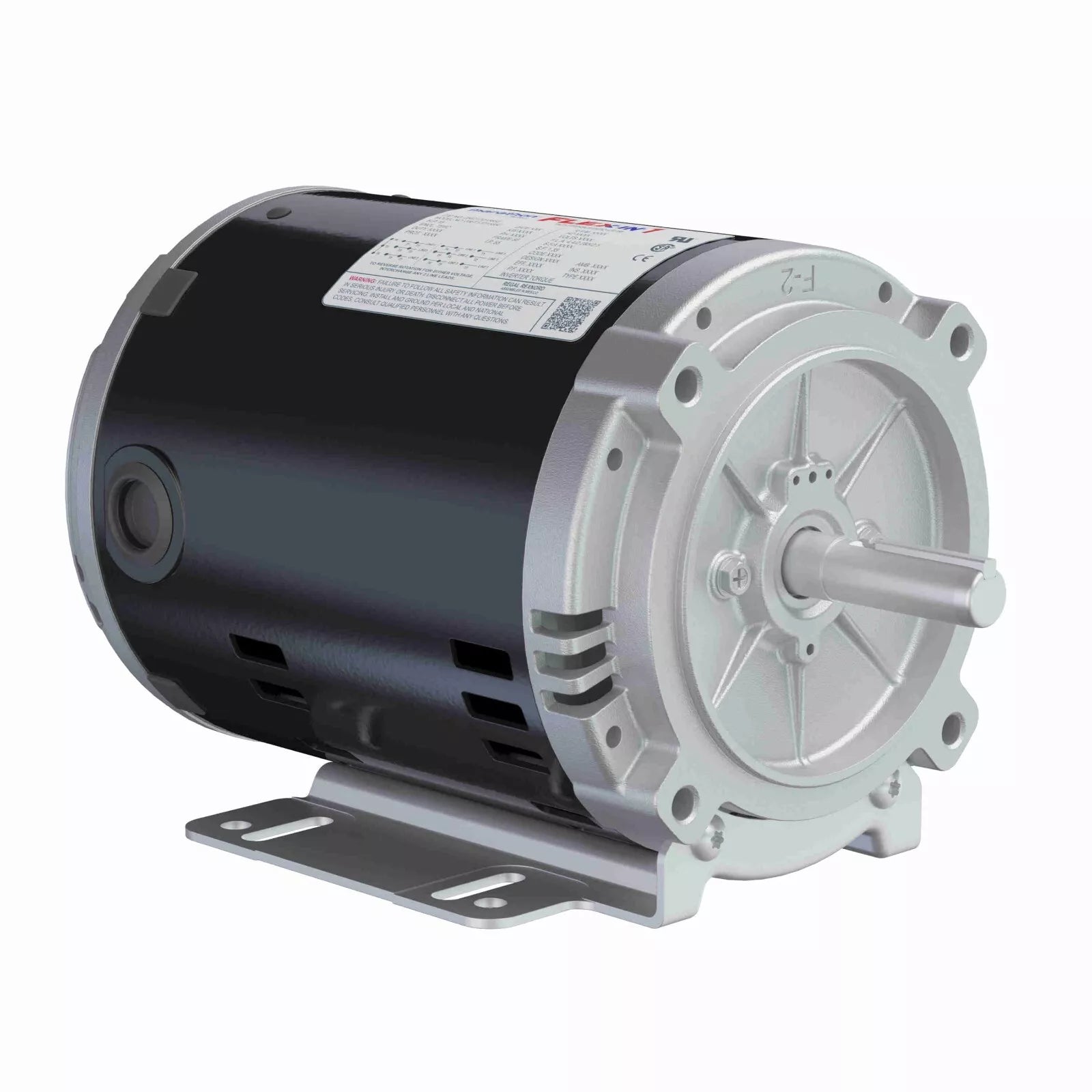

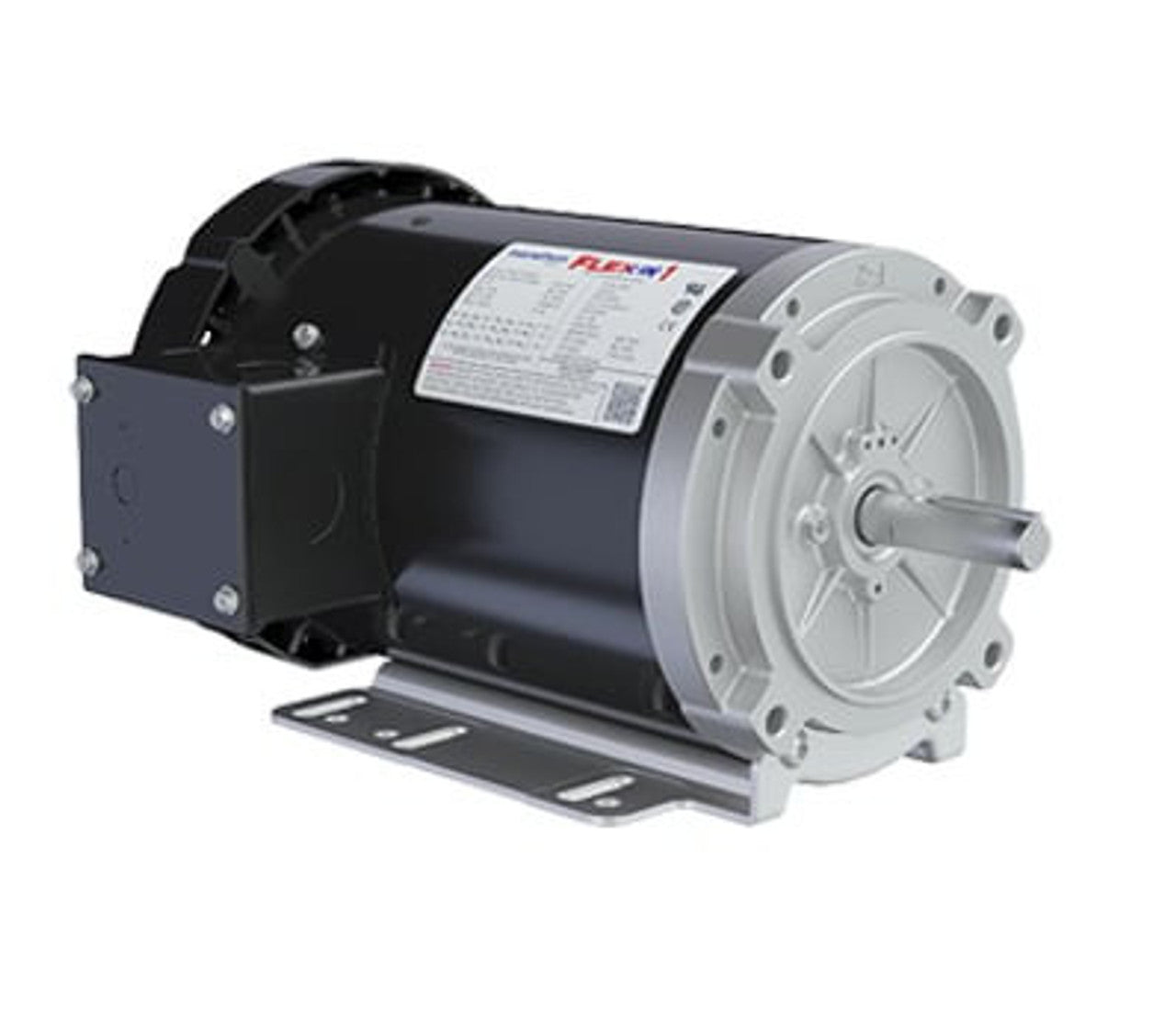

Marathon Motors FX13BK003 Three-Phase Electric Motor

Product Description

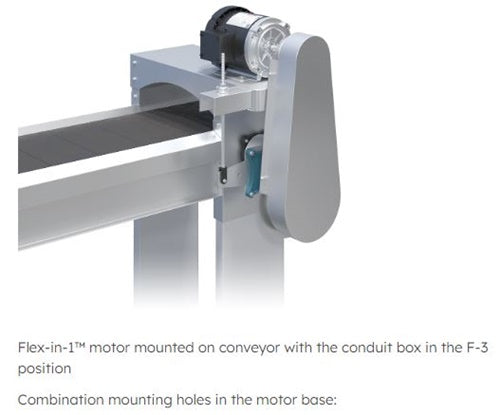

The Marathon Motors FX13BK003 is a reliable three-phase electric motor suitable for various industrial applications. This motor operates on 208-230/460V AC power and is designed for a rated load of one-third horsepower. It is commonly used with equipment such as pumps, gear reducers, and machine tools. The design includes a 56C or 56HC frame and can accommodate multiple mounting configurations.

• Operates on 208-230/460V three-phase power.
• Rated for one-third horsepower at speeds of 1725 or 1800 RPM.
• Features a robust 56C or 56HC frame with a bolt-on base.

Product Highlights

This electric motor is engineered for continuous duty and features Class F insulation. It includes dual-sealed ball bearings for durability and has a reversible rotation option for versatility.

Product Information

Standard Information

• Brand: Marathon Motors
• Manufacturer: Regal Rexnord Commercial

Technical Specifications

• MPN: FX13BK003
• Rated Load (HP): 1/3
• Voltage: 208-230/460 V
• Frequency: 60 Hz
• RPM: 1725/1800
• Poles: 4
• Current: 1.2/.61 A
• Enclosure: Drip proof
• Frame Size: 56HC
• Shaft Diameter: 0.625 inches
• Motor Type: Induction/Asynchronous
• Service Factor: 1.35
• Thermal Protection: None
• Weight: 25 lbs
• Overall Length: 11 inches
• Country of Origin: Mexico
• CE: Yes
• UL: Recognized
• Inverter Duty Rating: Inverter Duty
