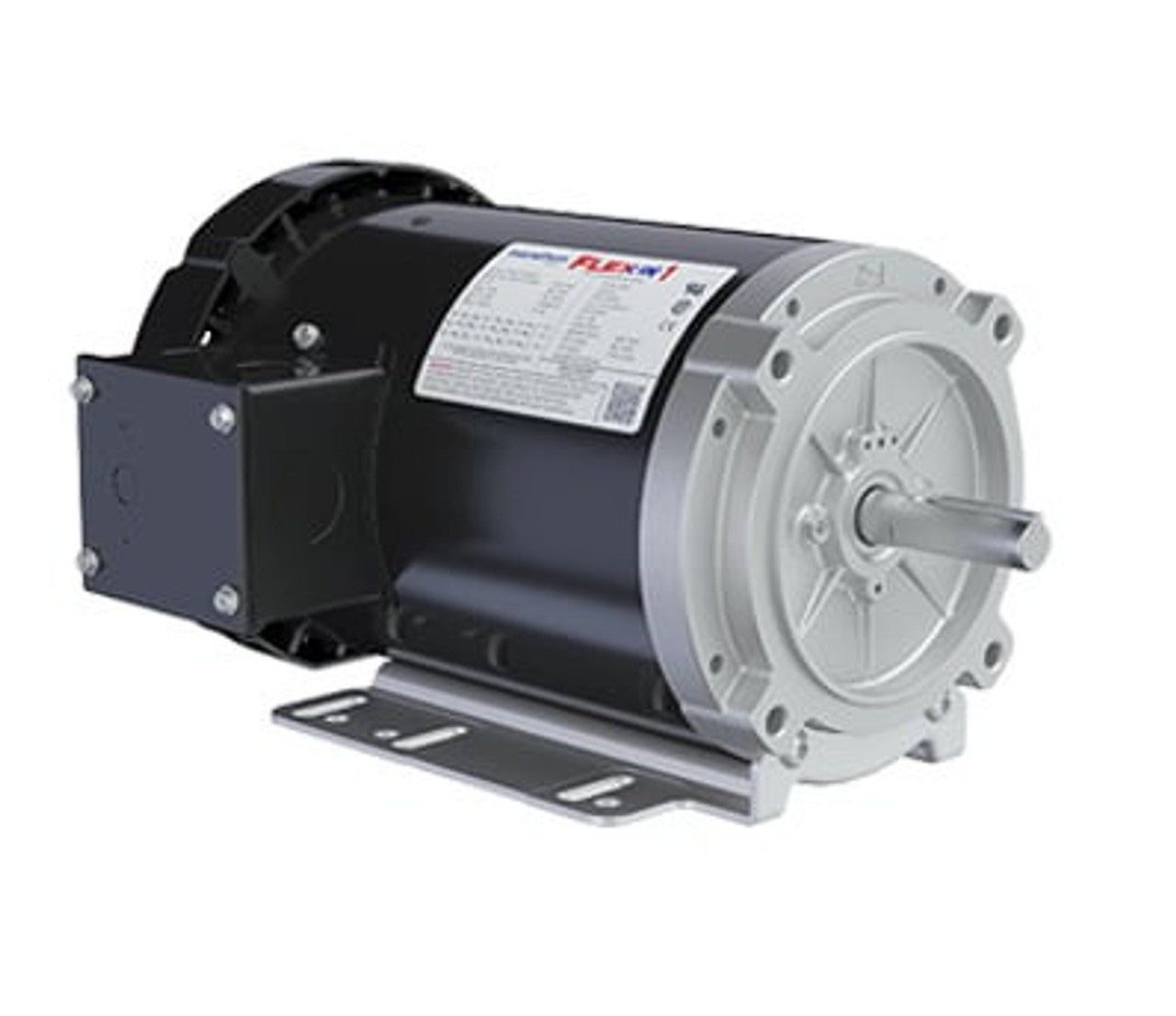

Marathon Motors FX13BK002 General Purpose Motor 1/3 HP

Product Description

The Marathon Motors FX13BK002 is a general-purpose motor designed for various industrial applications. With a three-phase operation, it is suitable for pumps, fans, blowers, and compressors. This motor operates at a voltage range of 208-230/460 volts and features a totally enclosed fan-cooled (TEFC) design.

• Horsepower: 1/3 HP
• Speed: 3600 RPM
• Frame Size: 56C

Product Highlights

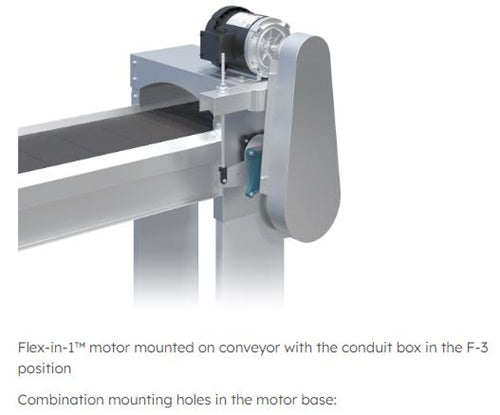

This motor can efficiently drive multiple types of machinery with its robust design. It has a removable mounting base for easy installation and service.

Product Information

Standard Information

• Brand: Marathon Motors
• Manufacturer Part Number: FX13BK002

Technical Specifications

• Horsepower: 1/3 HP
• Output Power: 0.25 kW
• Speed: 3600 RPM
• Voltage: 208-230/460 V
• Frequency: 50/60 Hz
• Current: 1.8/0.9 A
• Phase: 3
• Frame Size: 56C
• Enclosure: TEFC
• Mounting Type: C-Face with Base
• Inverter Duty: 10:1 CT
• Insulation Class: F
• Service Factor: 1.15
• Ambient Temperature: 40 °C
• Efficiency: 59.5%
• IP Code: IP43
• Shaft Diameter: 0.625 in
• Rotation: Reversible
• Weight: 22 lbs
• Duty Cycle: Continuous
• Motor Design: 3-Phase
• Number of Speeds: 1
• Thermal Protection: None
• Mount Arrangement: F1
• Starting Method: Line Or Inverter
