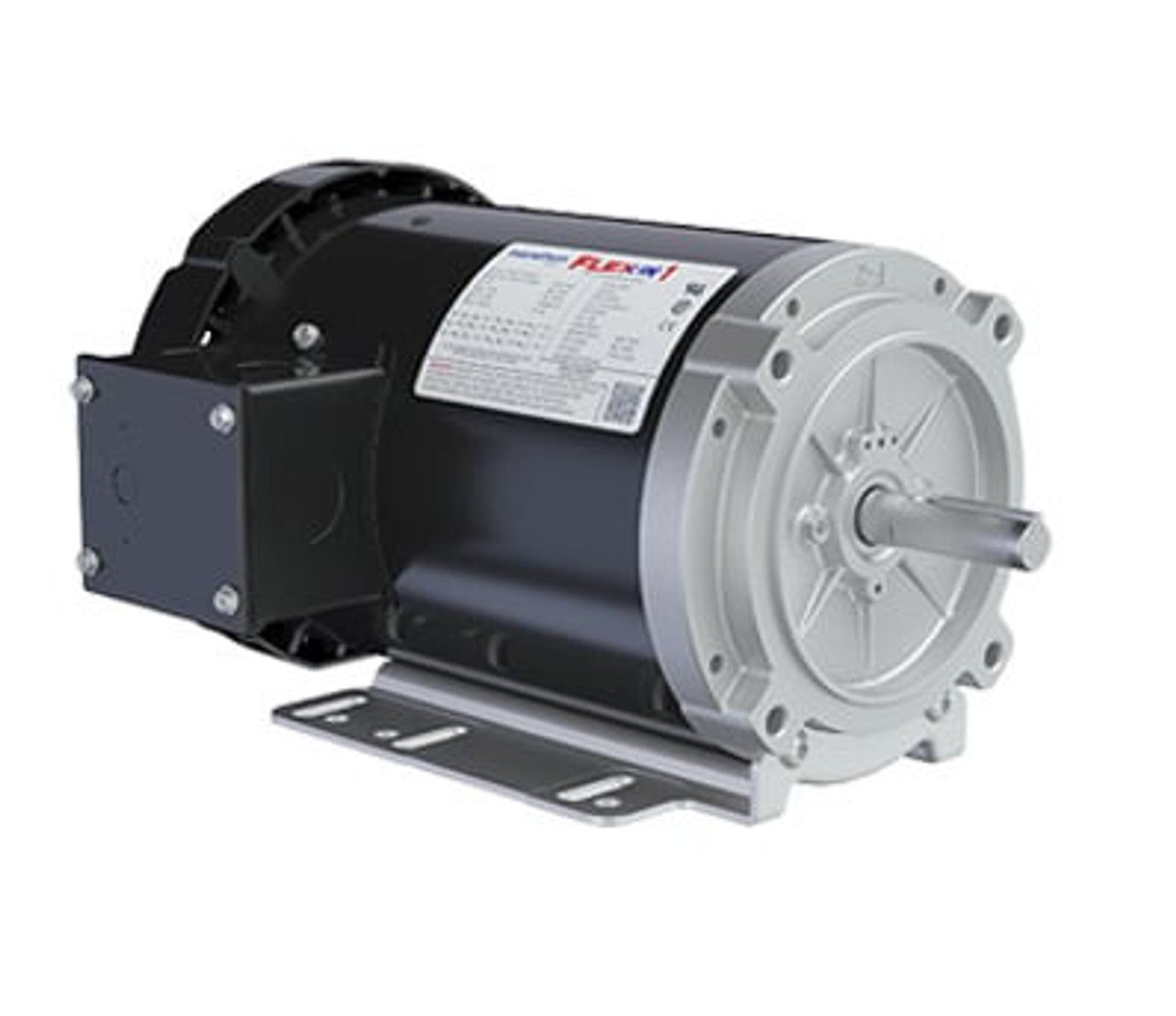

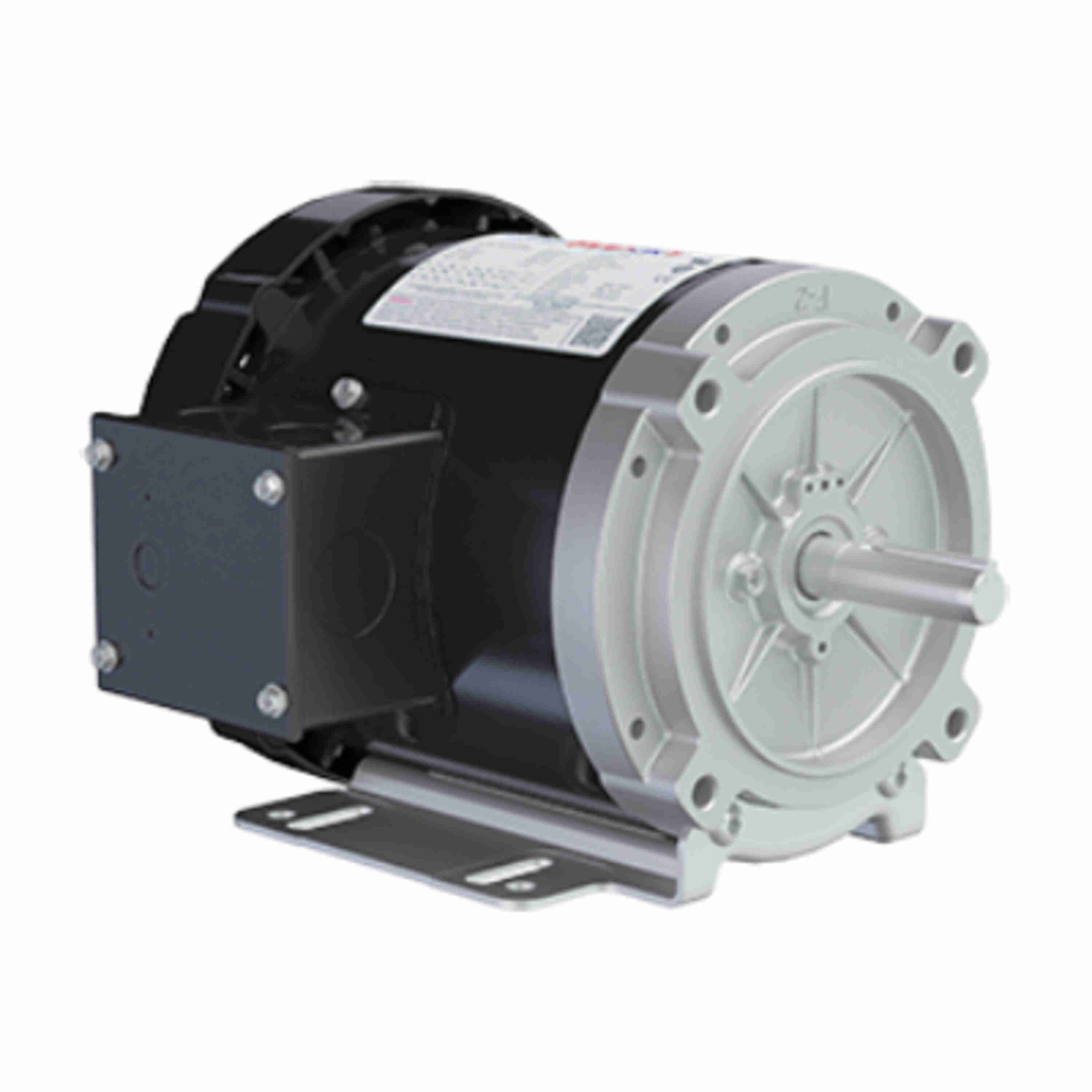

MARATHON MOTORS FX12FK003 Electric Motor Power 1/2 HP

Product Description

The MARATHON MOTORS FX12FK003 is a three-phase electric motor designed for various applications including gear reducers, pumps, and machine tools. Operating at 575V, this motor provides a power output of one-half horsepower. It features a 56C frame, is totally enclosed, and is fan-cooled (TEFC).

• Output Power: 1/2 HP
• Speed: 1725 or 1800 RPM
• Inverter Duty Rated

Product Highlights

Built for reliability and efficiency, this motor is equipped with Class F insulation and a repositionable bolt-on base for flexible installation.

Product Information

Standard Information

• Brand: Marathon Motors
• Manufacturer: Regal Rexnord Commercial

Technical Specifications

• MPN: FX12FK003
• Model No.: 056T17F15944
• Application: General Purpose
• Output Power (kW): 0.37
• Speed: 1800 RPM
• Frame Size: 56C
• Mounting Type: C Face Bolt-on Base
• Enclosure: TEFC
• Input Voltage: 575V
• Frequency: 60 Hz
• Current: 0.95 A
• Efficiency: 72.1
• Service Factor: 1.15
• Shaft Diameter: 5/8
• Shaft Length: 1-7/8
• Overall Length: 11-1/16
