Marathon Motors FX12FK001 Flex-In-1 Electric Motor

Product Description

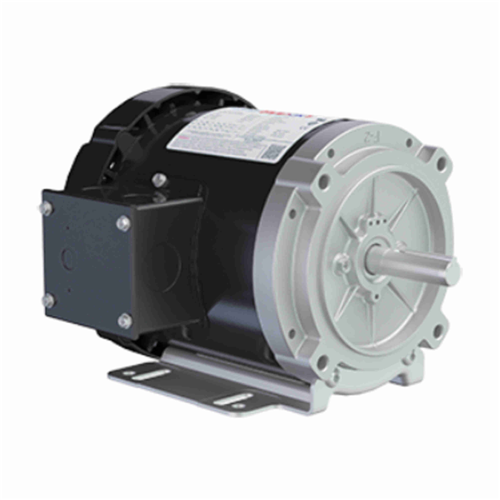

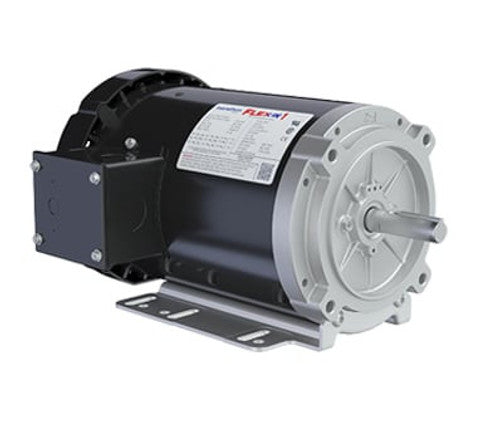

The Marathon Motors FX12FK001 is a reliable three-phase electric motor suitable for various general purpose applications. It features a totally enclosed fan cooled (TEFC) design that protects internal components from dust and moisture. This motor has a frame size of 56C and includes a removable mounting base for easy installation.

• Double-sealed ball bearings enhance durability.
• Compatible with standard 56 frame replacements.

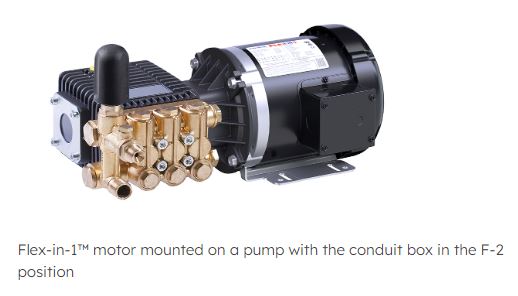

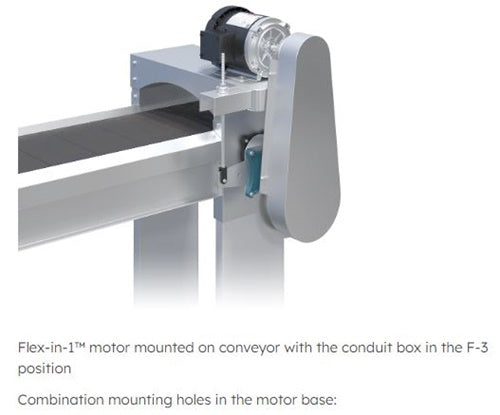

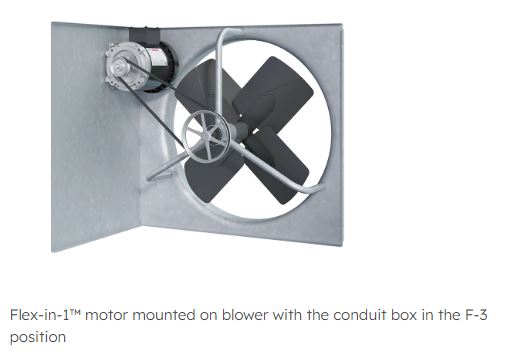

• Innovative Flex-in-1 design allows for flexible mounting options.

Product Highlights

This electric motor is rated for inverter duty with a ten to one constant torque. It is designed with class F insulation to withstand high temperatures and ensure a longer lifespan. The unique multi-mount base and C-Face configuration provide versatility for different setups.

Product Information

Standard Information

• Manufacturer Part Number: FX12FK001
• Horsepower: 1/2 HP

Technical Specifications

• RPM: 3600
• Frame: 56C
• Voltage: 575V
• Phase: 3-Phase
• Enclosure: TEFC
• Inverter Duty: 10:1 CT
• Insulation Class: Class F
• Frequency: 60Hz
• Full Load Amperage: 0.9
• Service Factor: 1.15
• Mounting Type: F1
