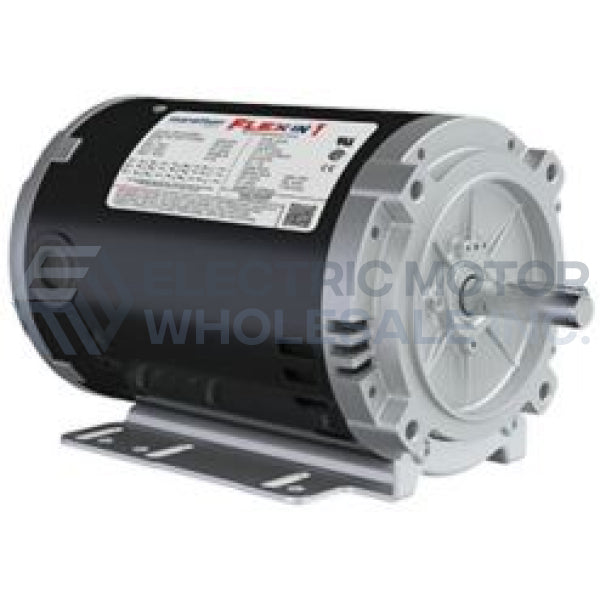

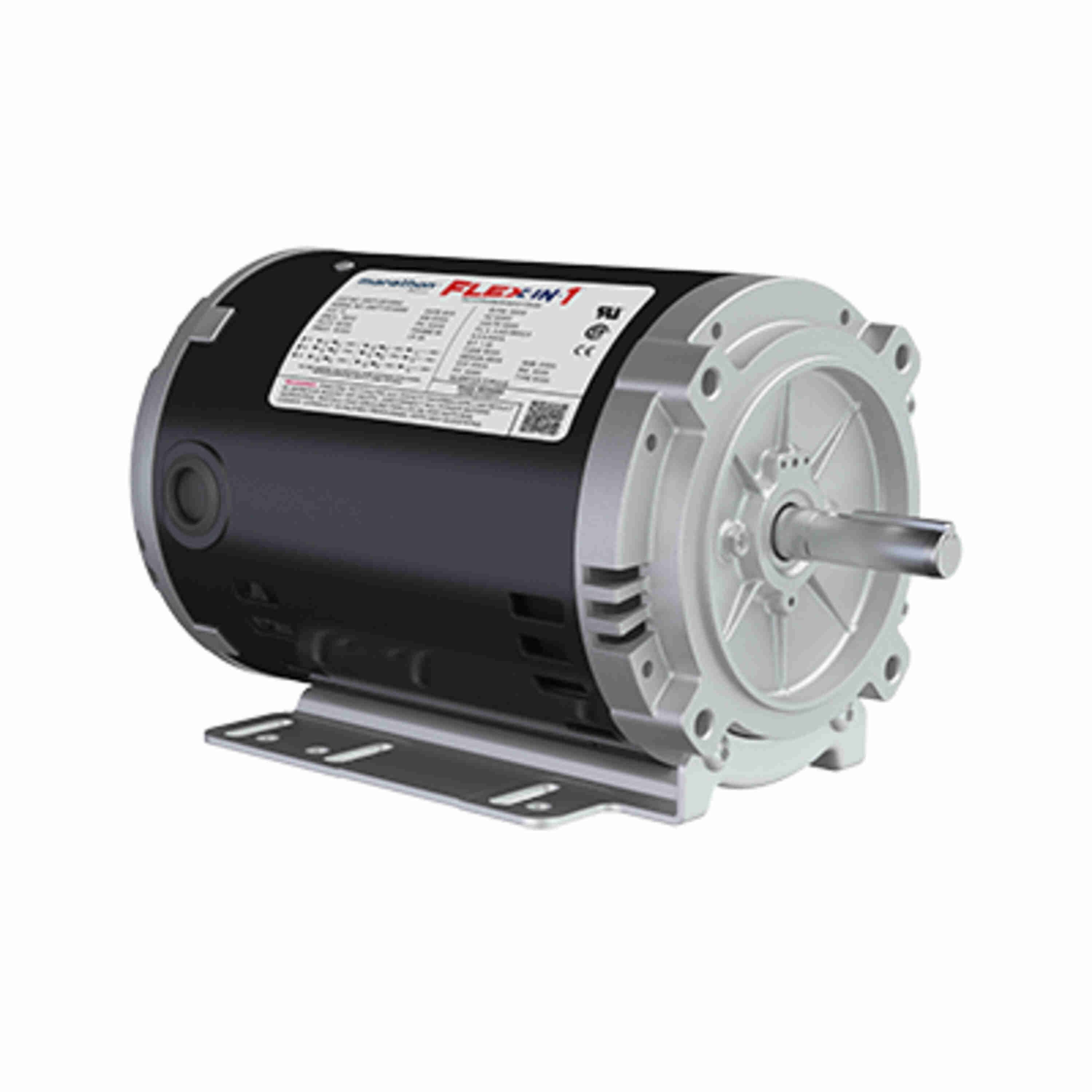

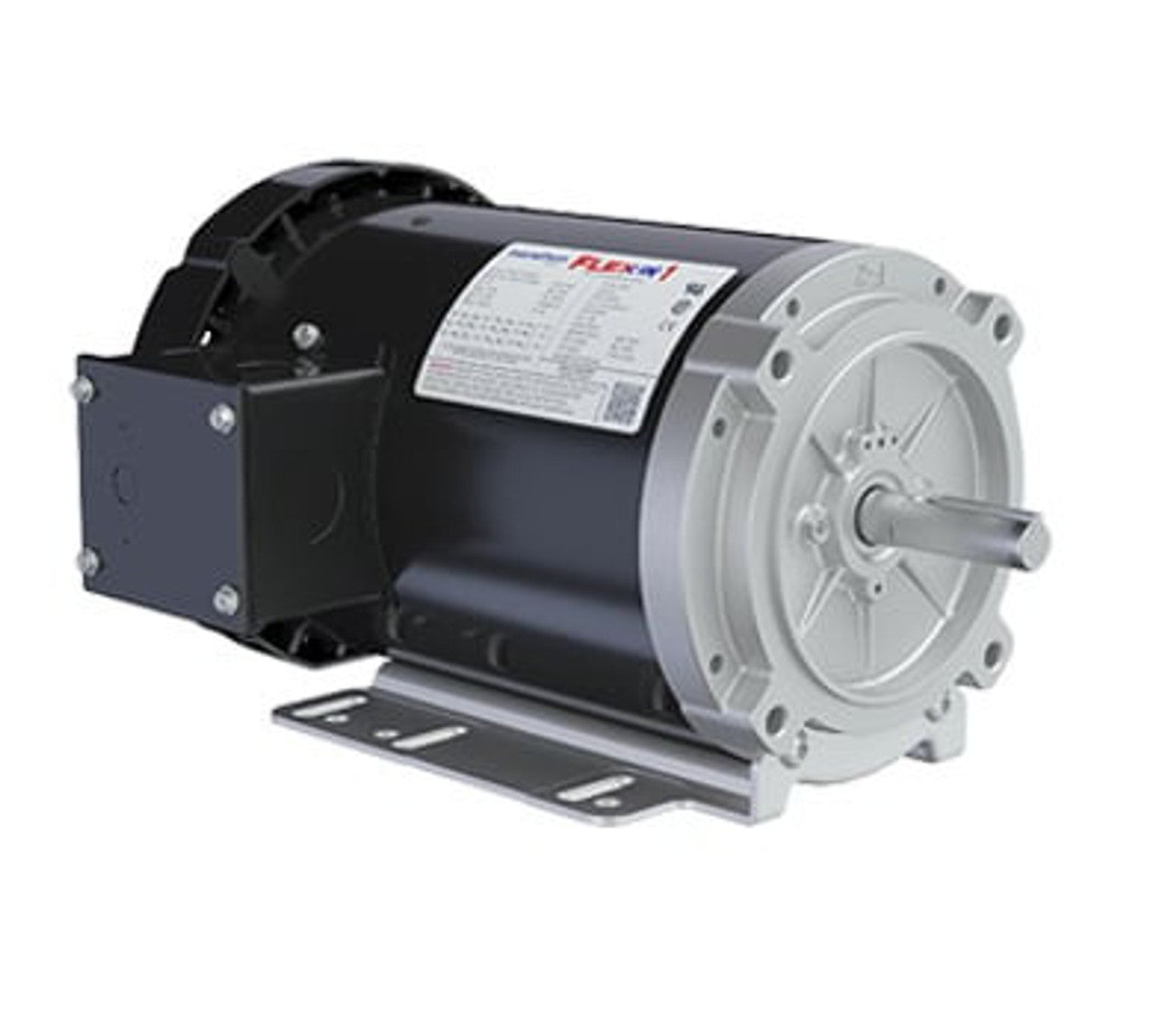

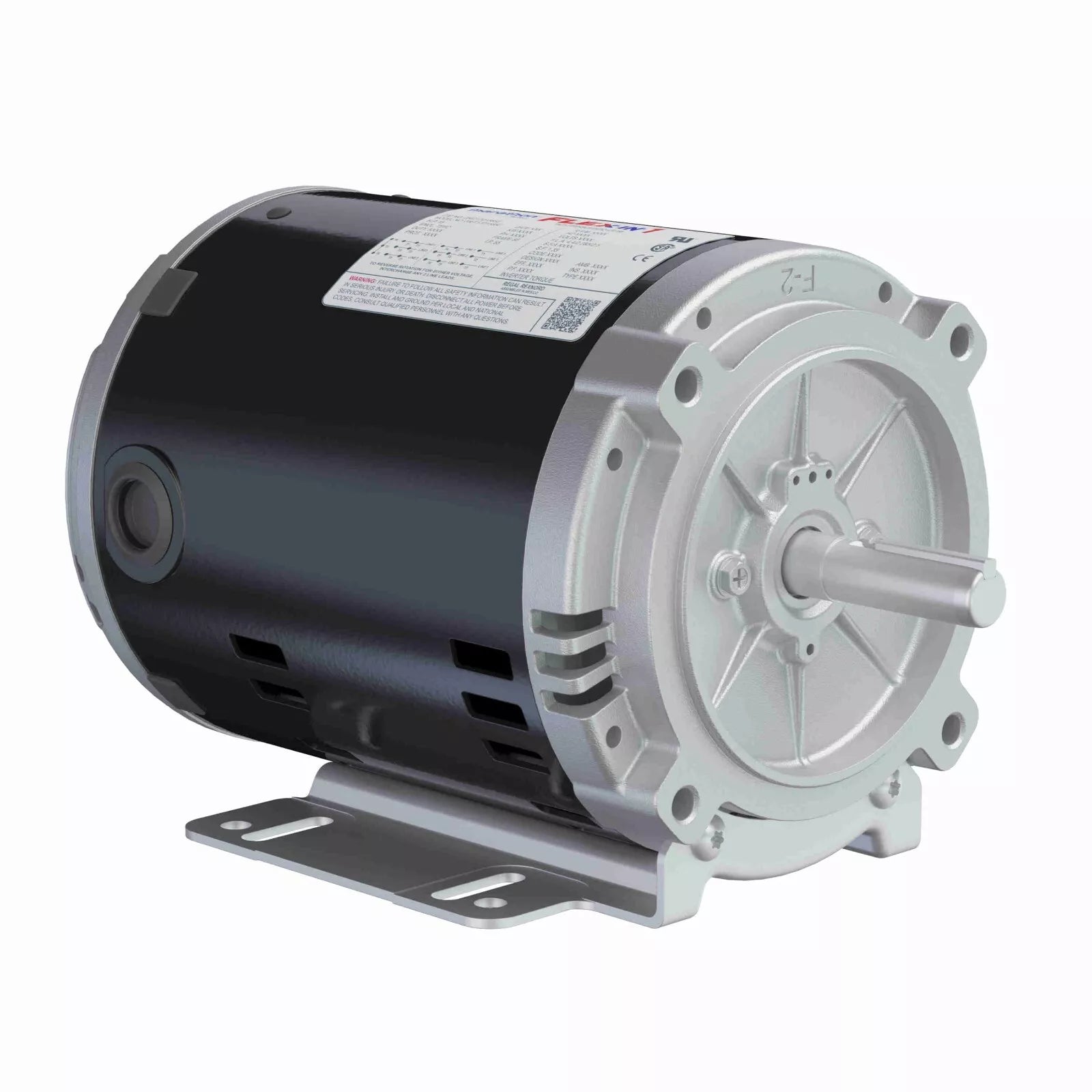

Marathon Motors FX12BK005 Electric Motor 1/2 HP 56C

Product Description

The Marathon Motors FX12BK005 is a three-phase electric motor that is efficient for general-purpose tasks. It has a rating of 1/2 HP and runs at about 1200 RPM. This motor can operate on voltages of 208-230/460V and is compatible with both 50 and 60 Hz power supplies.

• Rated for 1/2 HP at 1200 RPM.
• Operates on 208-230/460V, three-phase power.
• Includes a 56C frame and Class F insulation.

Product Highlights

The FX12BK005 is designed for multiple mounting options and is inverter-ready, making it a versatile choice for various applications.

Product Information

Standard Information

• Brand: Marathon Motors
• Manufacturer Part Number: FX12BK005

Technical Specifications

• Rated Load (HP): 1/2
• Output KW: 0.37
• RPM: 1200
• Nominal Rated Input Voltage: 208 V, 230 V, 460 V
• Full Load Amps: 2.1-2.2/1.1
• AC Frequency Rating: 60 Hz
• Frame Size NEMA: 56HC
• Mounting Type: Base-Mounted, Face-Mounted
• Enclosure Type: ODP (Open Drip-Proof)
• Inverter Duty: Inverter Duty
• Insulation Class: F
• Motor Service Factor: 1.25
• Shaft Diameter: 5/8 inch
• Weight: 30 lbs
