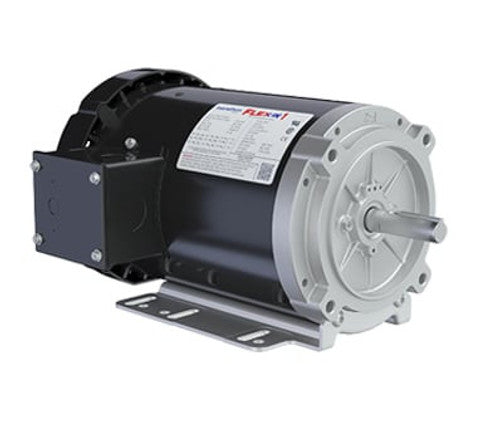

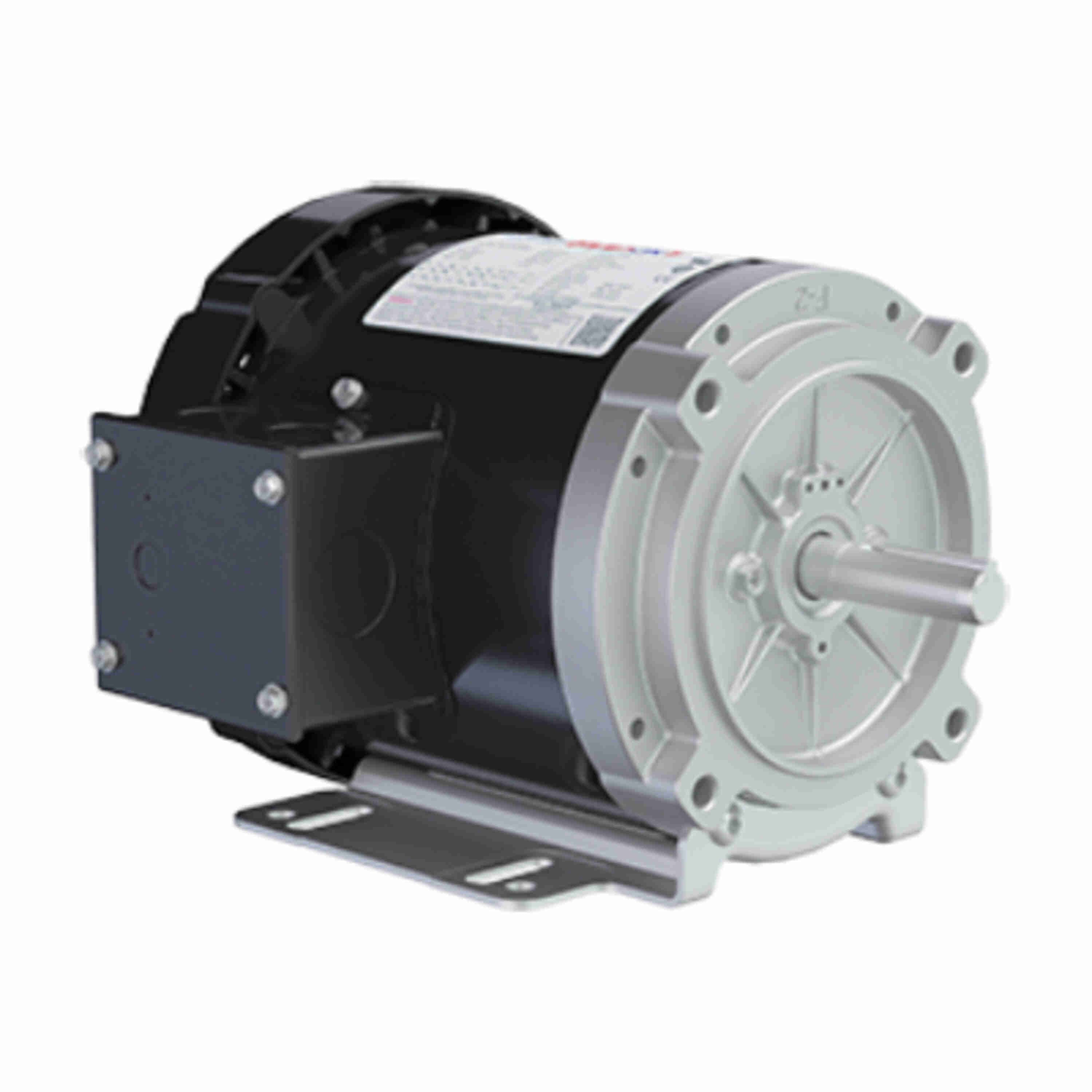

Marathon Motors FX12BK002 General Purpose Motor 1/2 HP

Product Description

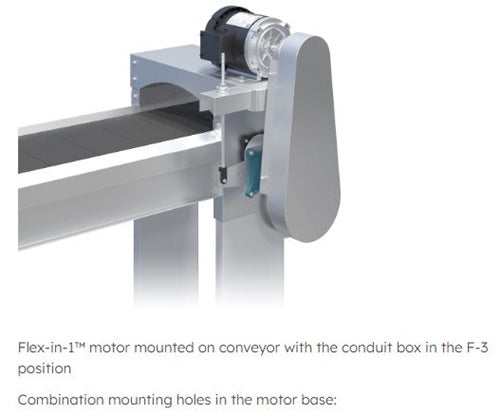

The Marathon Motors FX12BK002 is a reliable three-phase general-purpose motor designed for various applications. This motor is useful in pumps, fans, blowers, and compressors. The Totally Enclosed Fan Cooled (TEFC) enclosure protects it from damp and dirty conditions, making it suitable for industrial settings. It can be utilized with gear reducers and machine tools, as well as in direct-coupled systems. It features Flex-in-1 capability, enabling different mounting styles.

• HP: 1/2
• RPM: 3450 or 3600
• TEFC enclosure for environmental protection

Product Highlights

This motor is built for durability and flexibility in multiple applications.

Product Information

Standard Information

• Brand: Marathon Motors
• Manufacturer: Regal Rexnord Commercial

Technical Specifications

• MPN: FX12BK002
• Model Number: 056T34F15667
• Horsepower: 1/2
• Output Power: 0.37 kW
• RPM: 3600
• Voltage: 208-230/460V AC
• Phase: 3
• Frame Size: 56C
• Enclosure: TEFC
• Service Factor: 1.15
• Max. Ambient Temp: 40 Degrees C
• Shaft Diameter: 5/8
• Shaft Length: 1-7/8
• Overall Length: 10-13/16
• Weight: 21 lbs
