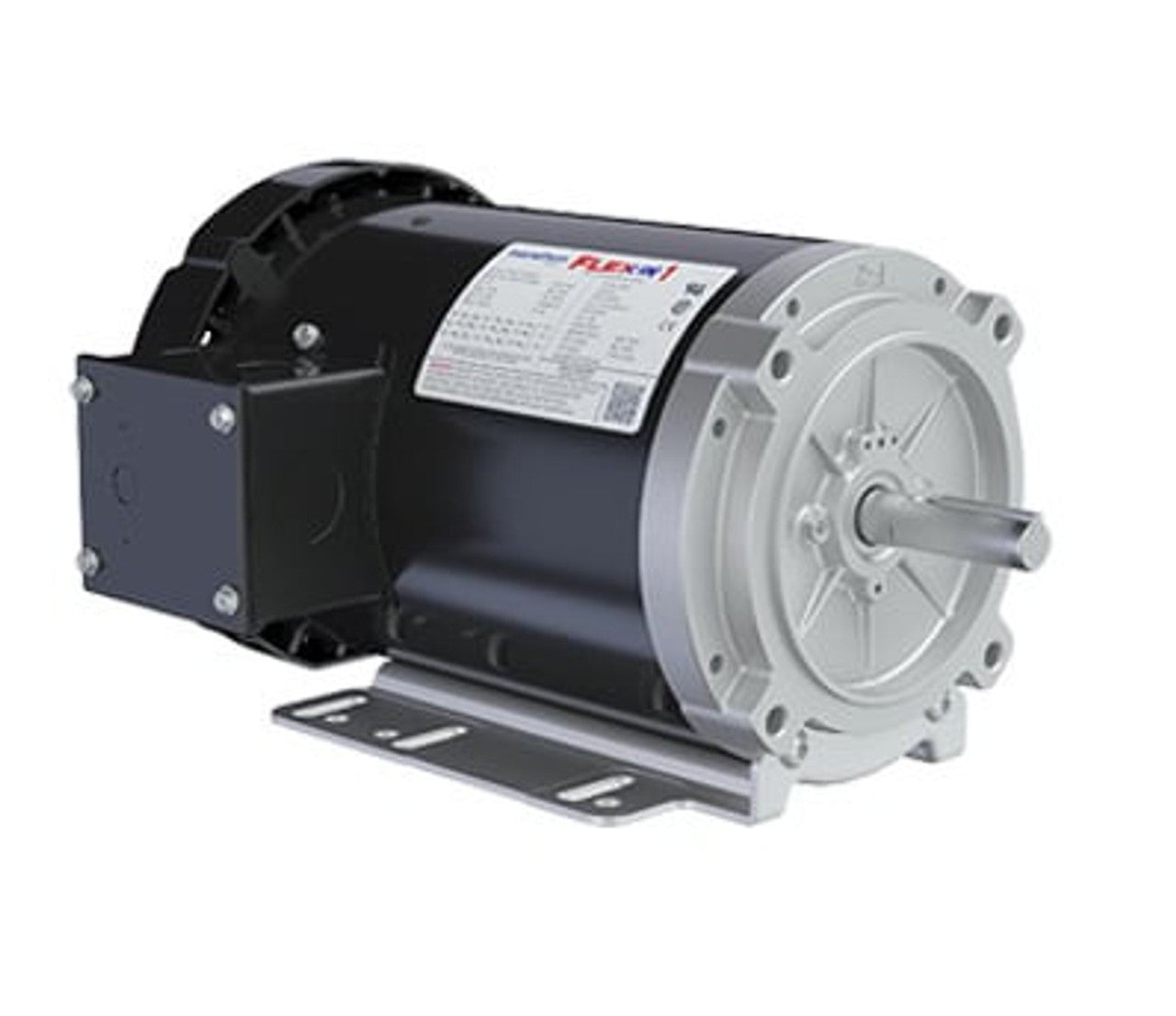

Marathon Motors FX03BK002 General Purpose Motor 3 HP 56HC

Product Description

The Marathon Motors FX03BK002 is a reliable three-phase general-purpose motor designed for demanding applications. This motor offers a power rating of three horsepower and operates at approximately three thousand six hundred RPM. It is compatible with 208-230/460V AC power and features a 56HC frame size. The motor comes with a totally enclosed fan-cooled (TEFC) enclosure, allowing it to perform effectively in various environments.

• Three-phase motor with a power rating of 3 HP
• Operates efficiently at 208-230/460V AC
• Designed with a TEFC enclosure for enhanced protection

Product Highlights

This motor is suitable for horizontal mounting and is inverter rated with Class F insulation for high performance in continuous duty applications.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer Part Number: FX03BK002

Technical Specifications

• Power: 3 HP
• Output KW: 2.2
• RPM: 3600
• Voltage: 208-230/460V
• Frequency: 60/50 Hz
• Full Load Amps: 8.2-7.6/3.8
• Frame Size NEMA: 56HC
• Enclosure: TEFC
