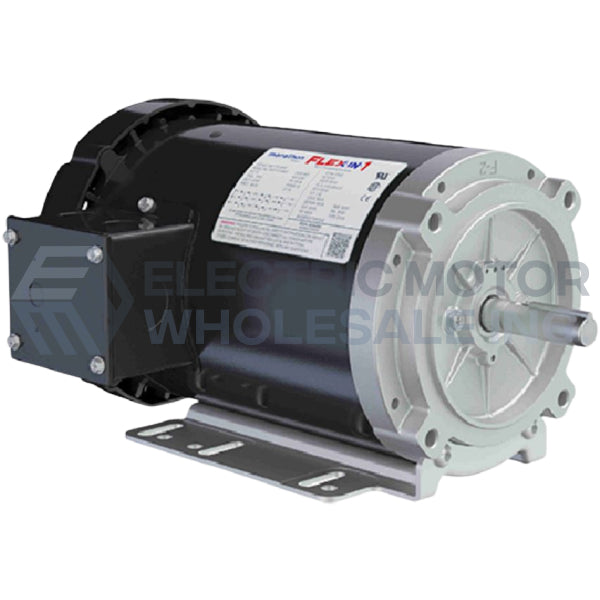

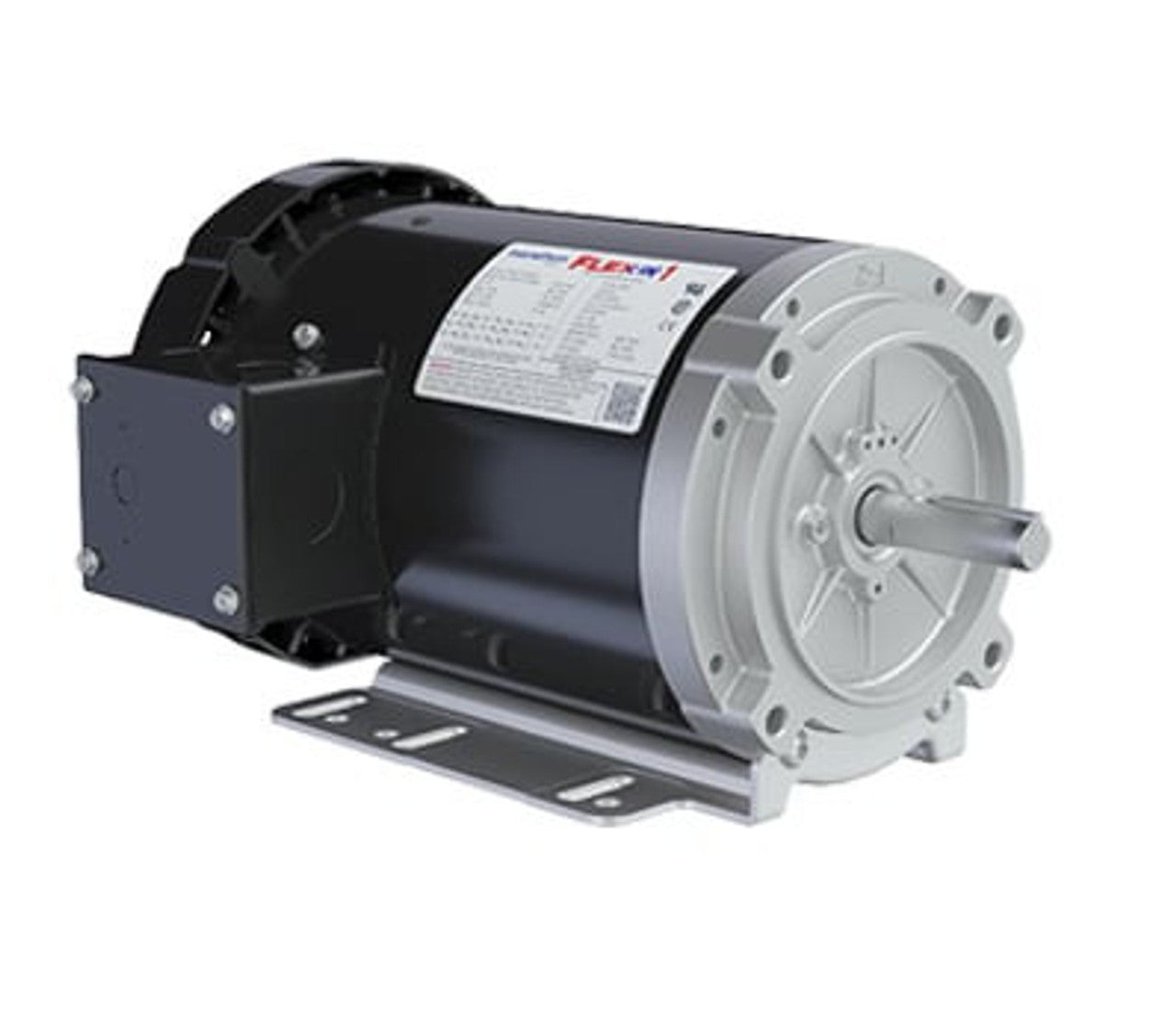

Marathon Motors FX02BK002 Electric Motor 2 HP 56HC

Product Description

The Marathon Motors FX02BK002 is a two-horsepower three-phase electric motor. This motor is ideal for powering equipment such as pumps, fans, blowers, and conveyors. It has a Totally Enclosed Fan Cooled (TEFC) enclosure and a 56HC frame that suits various environments, including damp and dusty conditions.

• Rated for two horsepower at three thousand four hundred fifty or three thousand six hundred RPM.
• Features a TEFC enclosure for better protection against contaminants.
• Inverter-ready design with a ten-to-one constant torque speed range.

Product Highlights

This motor is designed to operate efficiently in challenging environments while providing reliable performance.

Product Information

Standard Information

• Manufacturer: Regal Rexnord Commercial
• Brand: Marathon

Technical Specifications

• Application: General Purpose
• Output HP: 2
• Output KW: 1.5
• Output RPM: 3600
• Frame Size NEMA: 56HC
• Mount NEMA: C Face Bolt-on Base
• Enclosure: TEFC
• Input Voltage: 208-230/460
• Frequency: 50/60 Hz
• Efficiency: 85.5
• Inverter Rating: Inverter Ready
• CT Speed Range: 10:1
• Service Factor: 1.15
• Body Design: Rolled Steel
• Weight: 46 lbs
• UPC Number: 691720115343
• Insulation Class: Class F
• Phase: 3
• Output Current: 5.6-5.0/2.5 amps
