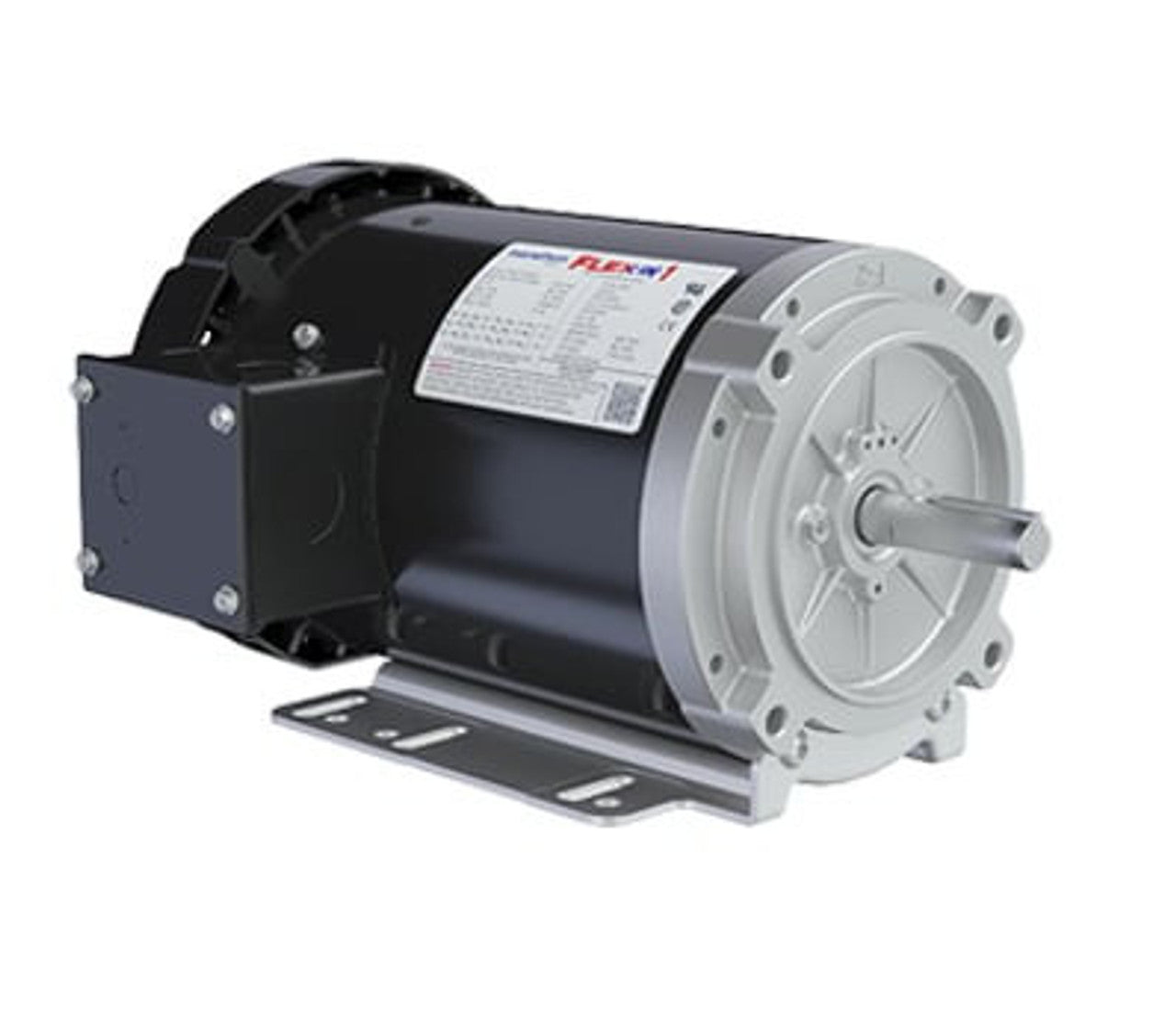

Marathon Motors FX01BK006 General Purpose Motor 1 HP

Product Description

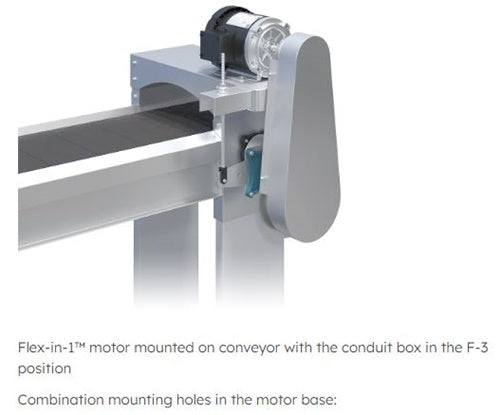

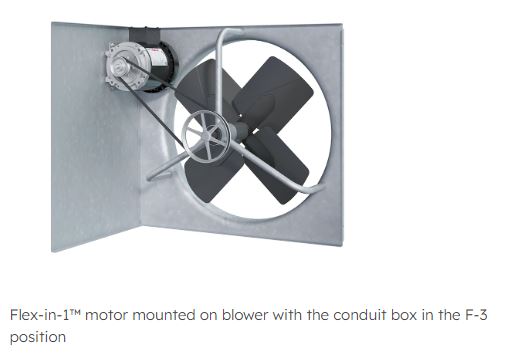

The Marathon Motors FX01BK006 is a 3-phase general-purpose motor designed for diverse industrial tasks. This motor is suitable for applications such as pumps, fans, blowers, compressors, and conveyors. Its construction makes it effective in damp, dusty, or dirty environments.

• 1 HP output power
• Suitable for continuous duty
• Inverter-ready with a 10:1 speed range

Product Highlights

The motor features a totally enclosed fan-cooled (TEFC) design and a twelve-inch frame for durability. The C-face with a bolt-on base allows easy mounting. Its inverter-ready capability ensures it operates effectively across varied speeds.

Product Information

Standard Information

• Brand: Marathon Motors
• Manufacturer: Regal Rexnord Commercial

Technical Specifications

• MPN: FX01BK006
• Motor Design: 3-Phase
• Output Power: 1 HP
• Input Voltage: 208-230/460V
• Speed: 1140 RPM or 1200 RPM
• Full Load Amps: 3.8-3.8/1.9
• Frame Size: 56HC
• Enclosure Type: TEFC
• Service Factor: 1.15
• Thermal Protection: None
• Insulation Class: F
• Shaft Diameter: 5/8 inches
• Shaft Length: 1-7/8 inches
• Overall Length: 13-13/16 inches
