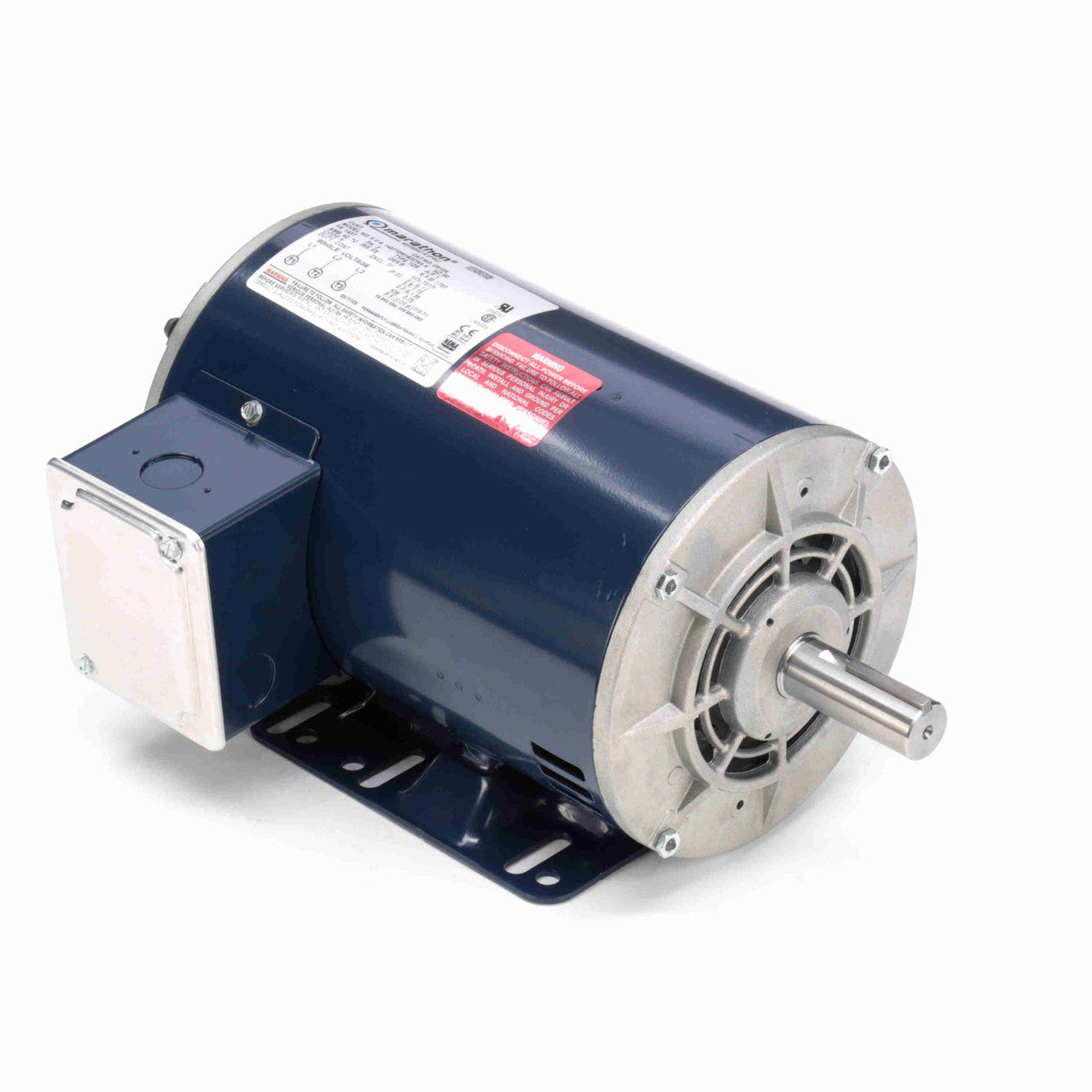

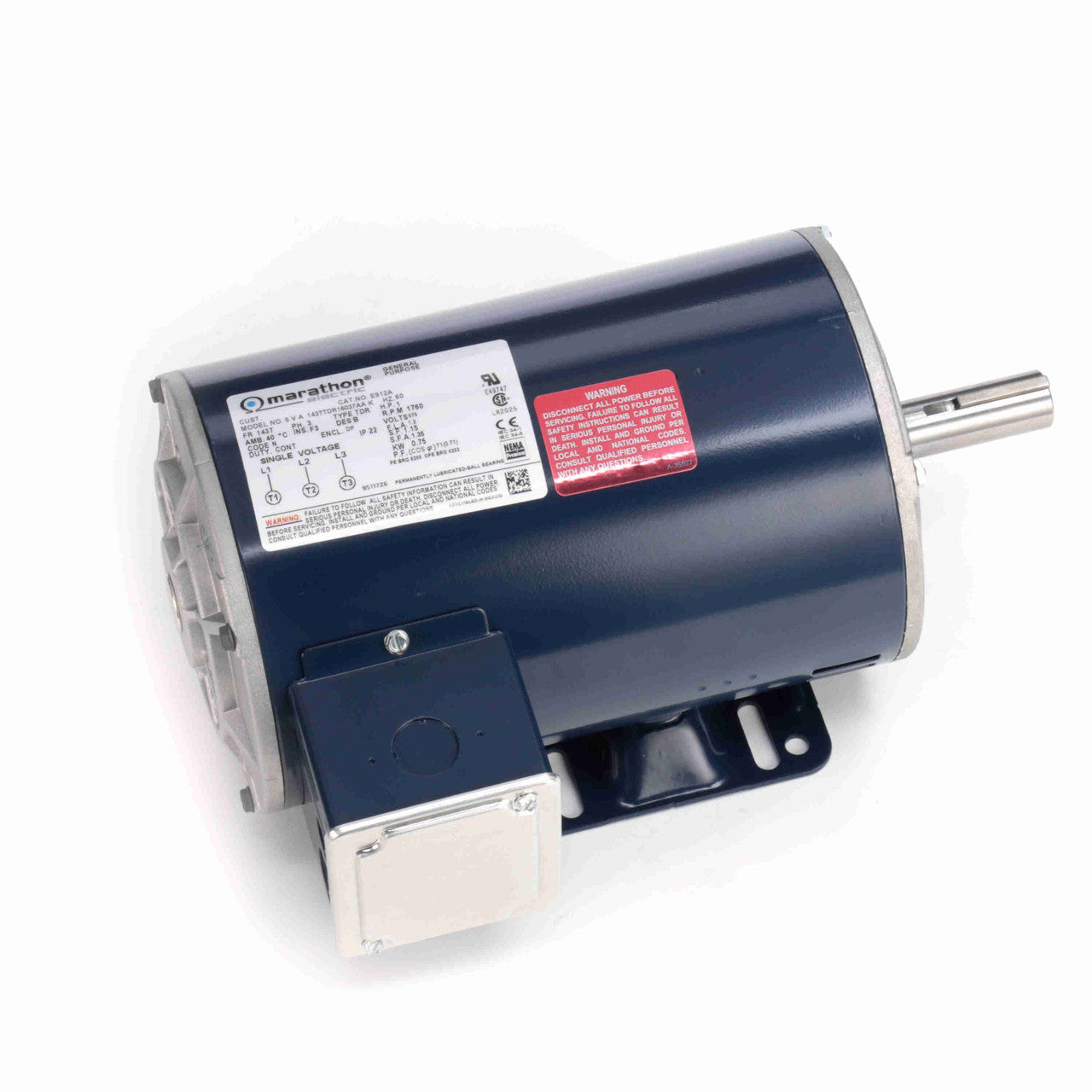

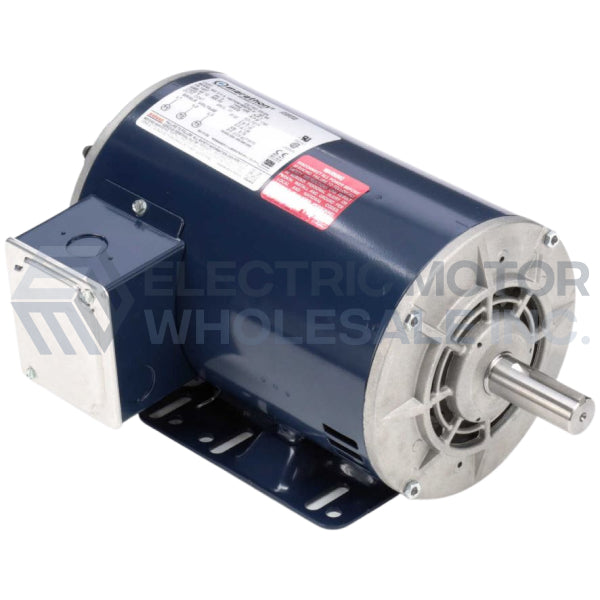

MARATHON MOTORS E912A General Purpose Motor 1 HP

Product Description

The MARATHON MOTORS E912A is a reliable general-purpose motor with a power output of one horsepower. Operating at five hundred seventy-five volts and sixty Hertz, it can reach speeds of either seventeen hundred sixty or eighteen hundred RPM. This three-phase motor has a robust 143T frame and features a rigid base, making it suitable for various applications including gear reducers, pumps, and machine tools.

• Rated for one horsepower output.
• Drip-proof enclosure for protection in dry conditions.
• Operates efficiently at five hundred seventy-five volts.

Product Highlights

Designed for continuous operation, this motor is ideal for clean environments and offers strong performance for essential machinery.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: E912A

Technical Specifications

• Output Power: 1 HP
• Frame Size: 143T
• Voltage: 575 V
• Phase: 3
• Speed: 1760 RPM
• Efficiency: 85.5 %
• Current: 1.2 A
• Mounting Type: Rigid Base
• Shaft Diameter: 7/8 inches
• Shaft Extension: 2.28 inches
