Marathon Motors E119351.00 Electric General Purpose Motor

Product Description

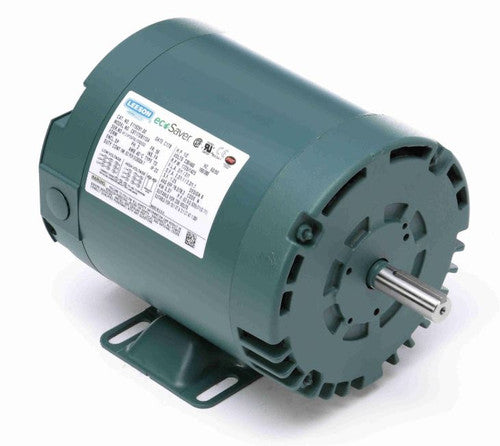

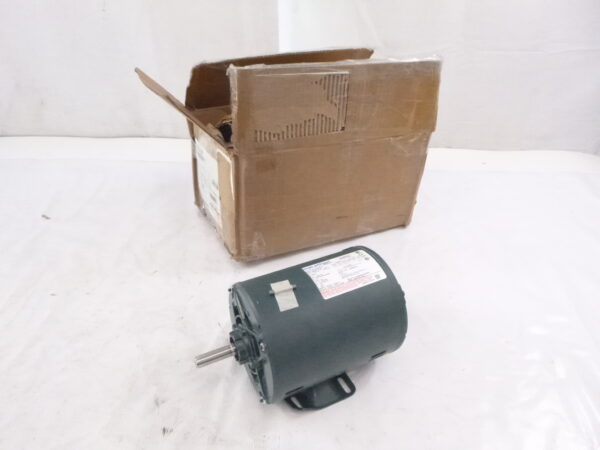

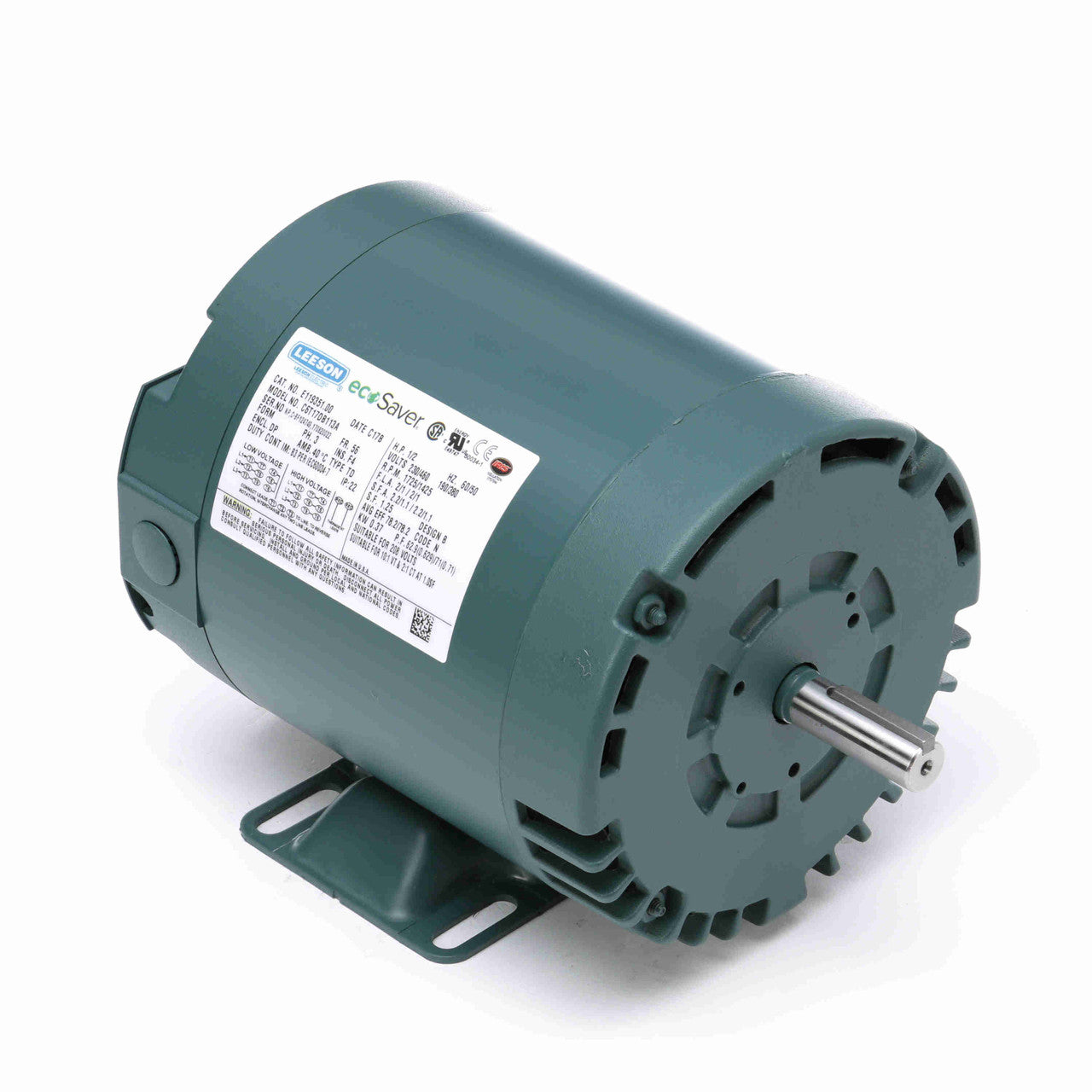

The Marathon Motors E119351.00 is a three-phase electric general purpose motor. It is suitable for a variety of applications. This motor has an open drip-proof enclosure and a rigid base for secure mounting. It operates efficiently at 208-230/460 volts and a frequency of sixty or fifty hertz. The construction includes rolled steel for durability and features ball bearings for smooth operation.

• Three-phase, AC electric motor
• Open drip-proof enclosure for protection
• Rigid base for secure mounting

Product Highlights

This general purpose motor is ideal for various industrial and commercial applications. Reliable performance with a robust design enhances operational efficiency.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: E119351.00

Technical Specifications

• Horsepower: 0.5 hp
• RPM: 1725
• Voltage: 208-230/460V
• Phase: Three Phase
• Frequency: 60/50Hz
• Full Load Amperage: 1.7-1.8/0.9
• Service Factor: 1.25
• Frame: 56 Frame with Rigid Base
• Mounting Type: Rigid Base Mount
• Bearing Type: Ball Bearings
• Enclosure: Open Drip Proof
• Shaft Diameter: 5/8 inches
• Shaft Length: 1 7/8 inches
• Insulation Class: Class F
