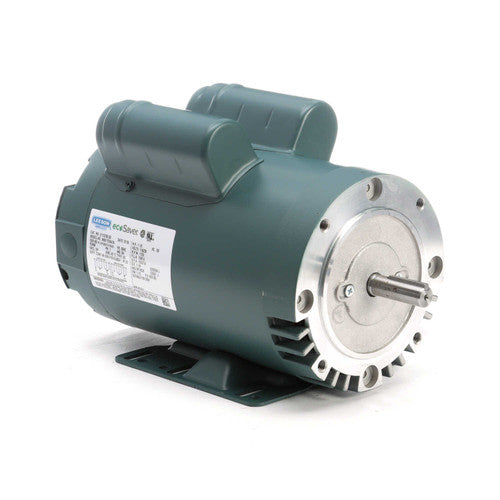

Marathon Motors E113700.00 Leeson 1.5 hp 1800 RPM 56HC Frame ODP C-Face 115/230V E

Product Description

The Marathon Motors E113700.00 Leeson is a 1.5 hp, 1800 RPM motor designed for single-phase applications. It operates at both 115V and 230V, making it versatile for various setups. The motor has a NEMA 56HC frame, which ensures compatibility with many mounting systems. Its rigid base and C-face mount provide stability during operation. This motor is suitable for general-purpose tasks where reliability is essential.

• General purpose motor suitable for single-phase applications with a C-face mount.
• Features a rigid base with a keyway shaft for secure installation.
• Equipped with 4 threaded bolt holes for easy mounting of pumps or gear heads.

Product Highlights

This motor is ideal for diverse applications, including air conditioning, refrigeration, and other equipment requiring reliable power.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: E113700.00

Technical Specifications

• Horsepower: 1.5 hp
• RPM: 1800
• Frame Size: 56HC
• Enclosure Type: ODP (Open Drip Proof)
• Mounting Type: C-Face (rigid base)
• Voltage: 115/230V
• Amperage: 13.0/6.5
• Frequency: 60Hz
• Phase: Single Phase
• Shaft Diameter: 5/8 inches
• Shaft Length: 1 7/8 inches
• Service Factor: 1.15
• Overload Protection: Manual
• Base Type: Rigid
• Rotation: Reversible
• Bearings: Ball Bearings
• Insulation Class: Class B
• Warranty: 1 Year Manufacture Warranty
