Marathon Motors E103023.00 Leeson 1/3 hp 1800 RPM 115/230V 56C Frame ODP Rigid-Base C-Face Motor

Product Description

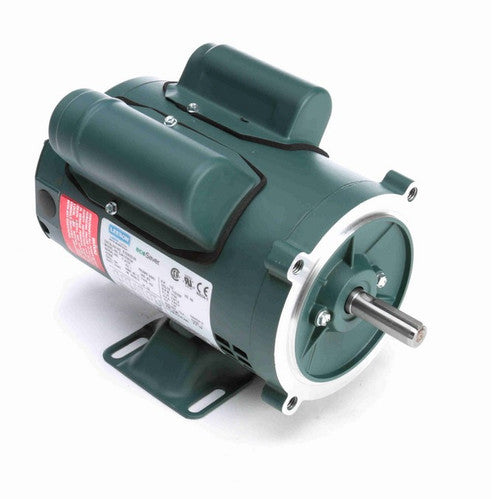

The Marathon Motors E103023.00 is a Leeson 1/3 horsepower, 1800 RPM, single-phase motor. This motor runs on 115/230 volts and operates at 60Hz. It features a NEMA 56C frame suitable for various applications. The motor has a 5/8 inch diameter keyed shaft with a 1 7/8 inch length and a C-face mount with four threaded bolt holes for easy installation. The wiring diagram is located on the nameplate of the motor. It has an open drip proof (ODP) enclosure.

• Rigid base allows for stable installation.
• Reversible operation for versatile use.
• Includes a one-year manufacturer's warranty.

Product Highlights

This motor is designed for general purpose applications in HVAC and other industrial uses.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: E103023.00

Technical Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/230V
• Frame: 56C
• Phase: Single Phase
• Motor Type: Capacitor Start/Run Motor
• Shaft Diameter: 5/8 inch
• Shaft Length: 1 7/8 inch
• Service Factor: 1.35
• Overload Protection: None
• Base: Rigid Base
• Bearings: Ball Bearings
• Insulation Class: Class B
• Mounting: C-Face
• Enclosure: ODP (Open Drip Proof)
