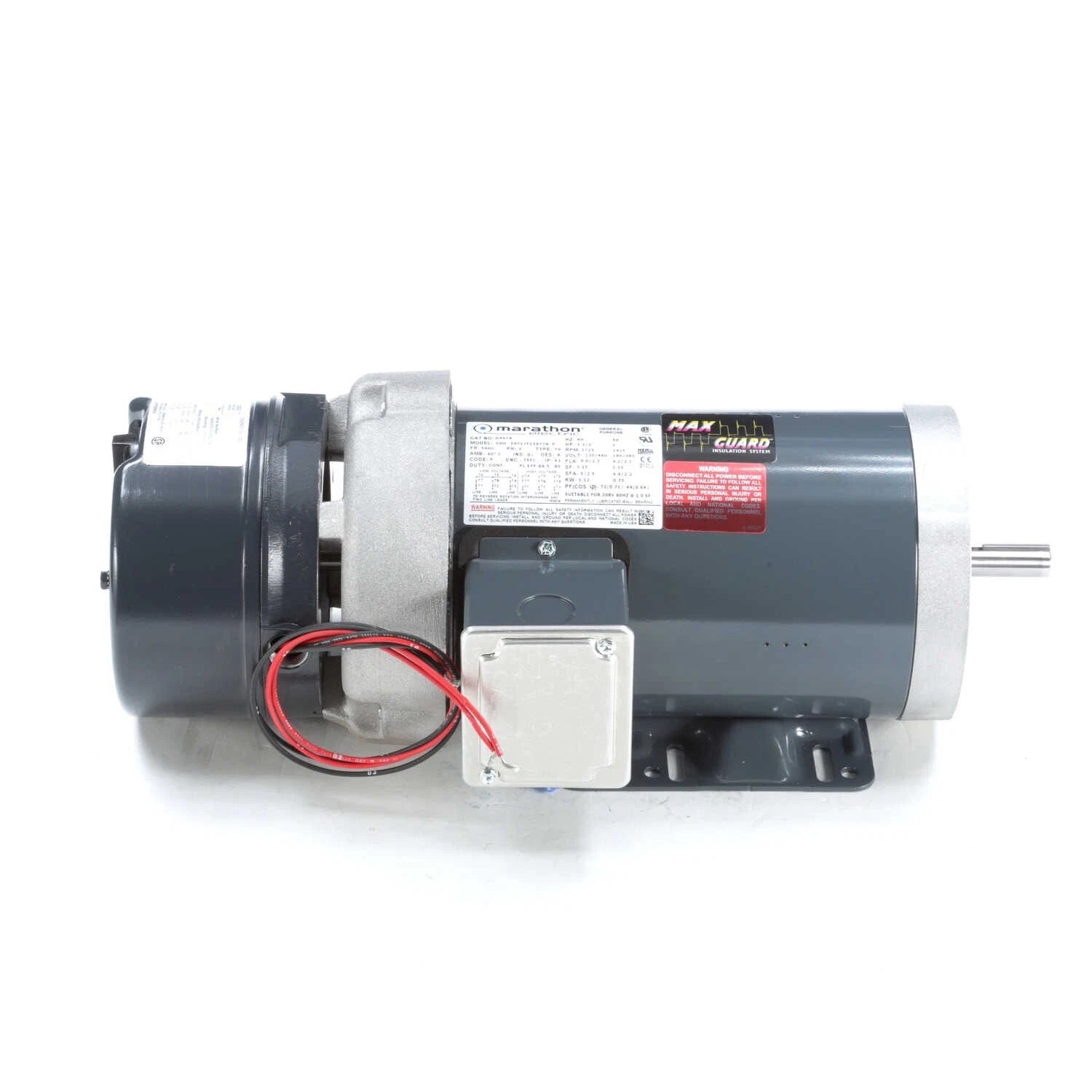

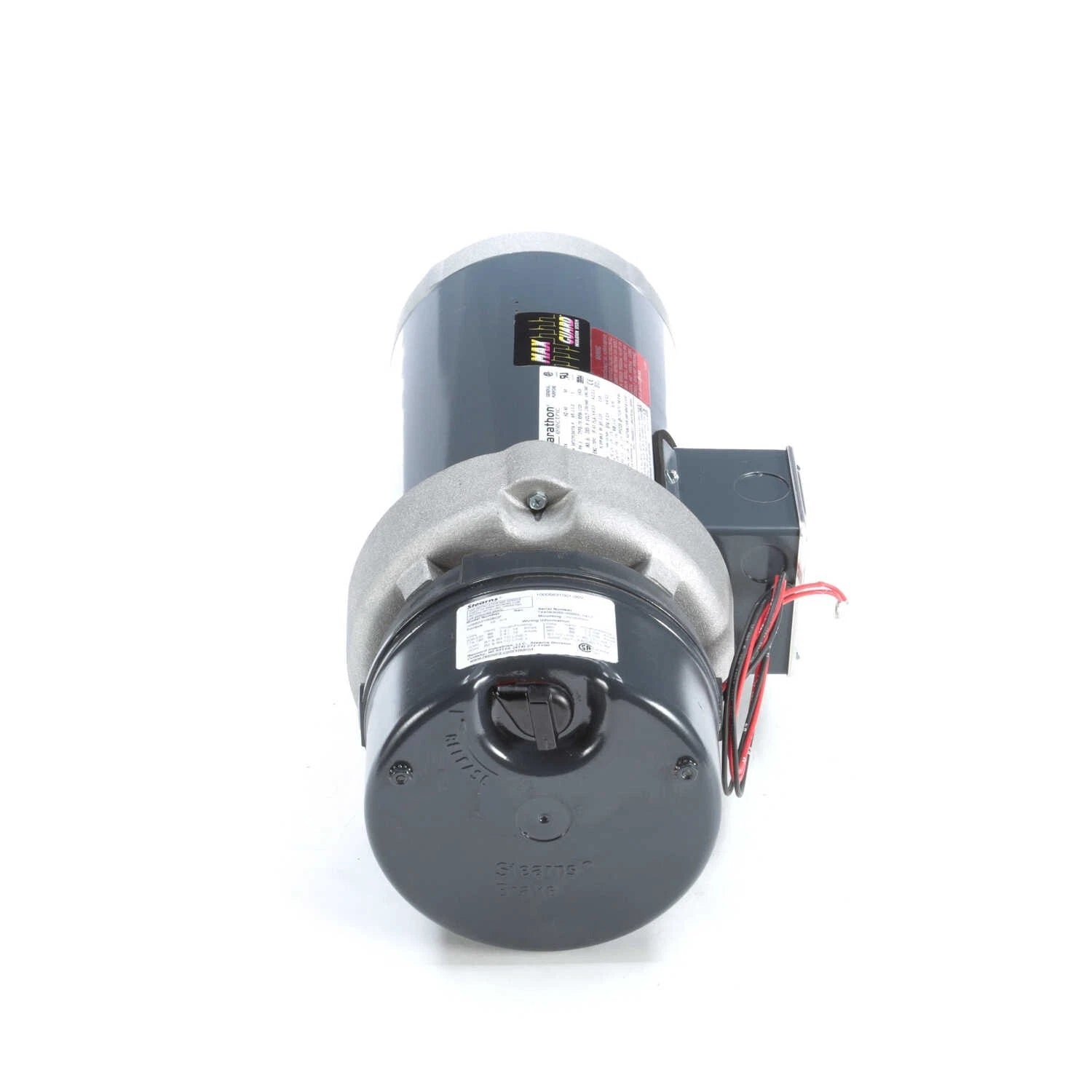

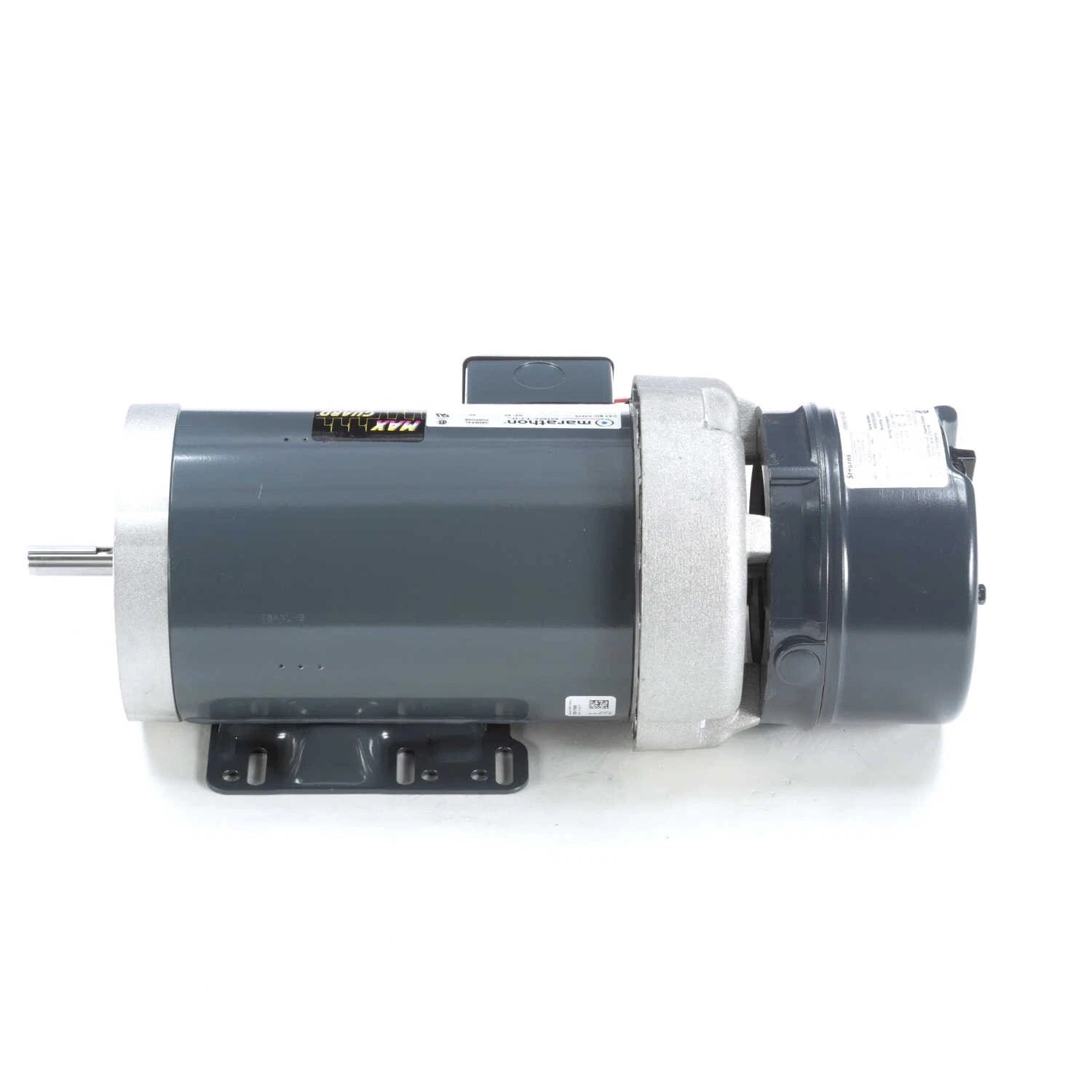

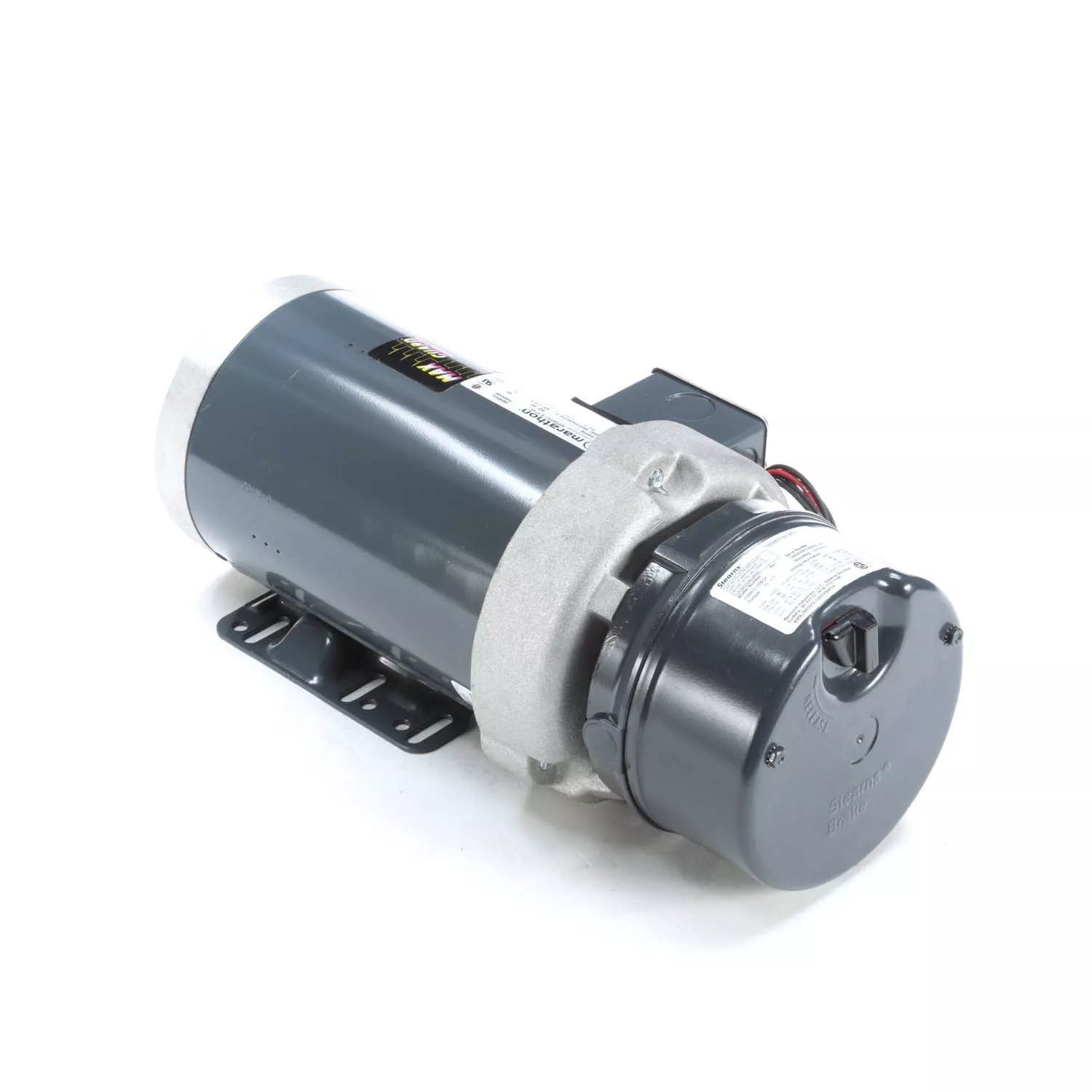

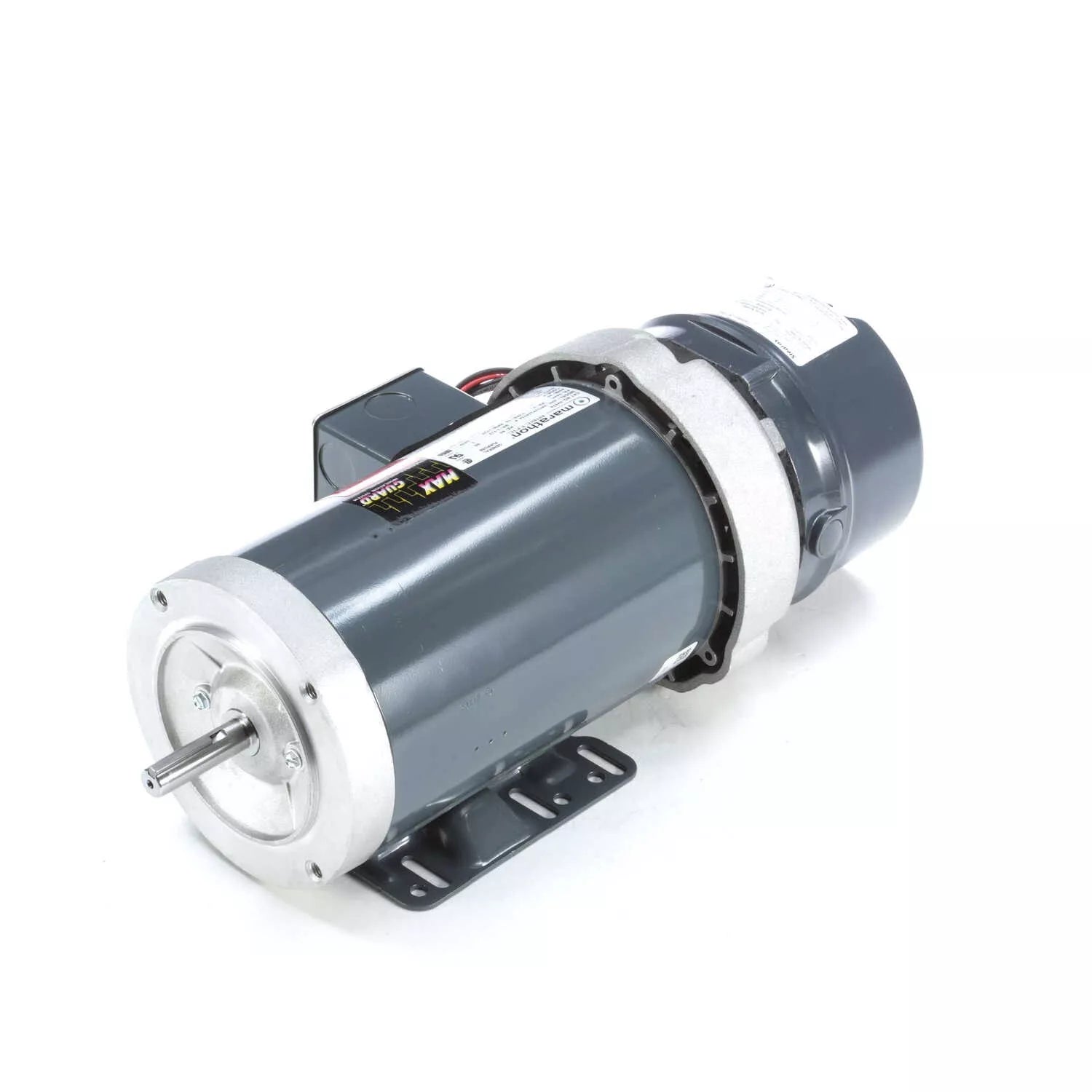

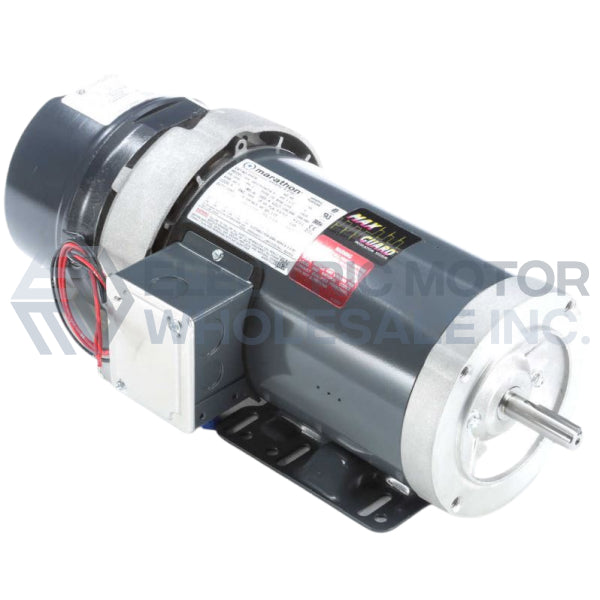

Marathon Motors D457A Brake Motor 1.5 HP 3-Phase

Product Description

The Marathon Motors D457A is a three-phase brake motor with output power of 1.5 HP. It operates efficiently at voltages of 230 or 460 volts and a frequency of sixty hertz. Ideal for various continuous duty applications, it is designed with a totally enclosed fan cooled (TEFC) enclosure and a robust rolled steel frame.

• Voltage: 230/460 volts
• Speed: 1725/1800 RPM
• Frame: 56HC

Product Highlights

This motor is engineered for durability and performance in industrial settings.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: D457A

Technical Specifications

• Model: 056T17F15677
• Output HP: 1.50 HP
• Output KW: 1.1 kW
• Frequency: 60 Hz
• Poles: 4
• Current: 4.6/2.3 A
• Service Factor: 1.15
• Enclosure: Totally Enclosed Fan Cooled
• Mounting Type: Rigid
• Shaft Diameter: .63 inches
• Shaft Extension: 1.88 inches
• Overall Length: 16.72 inches
• Frame Material: Rolled Steel
• Assembly Mounting: F1 ONLY
• AC Motor Type: Induction/Asynchronous
