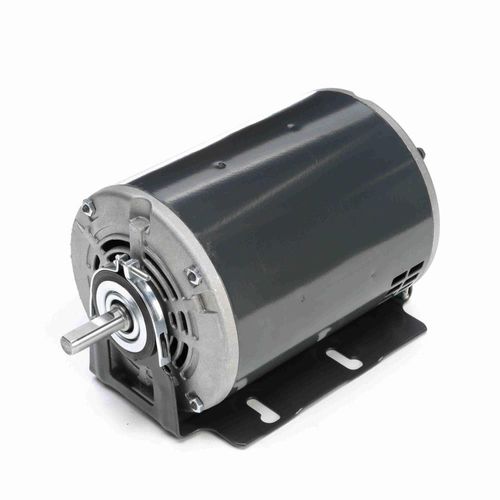

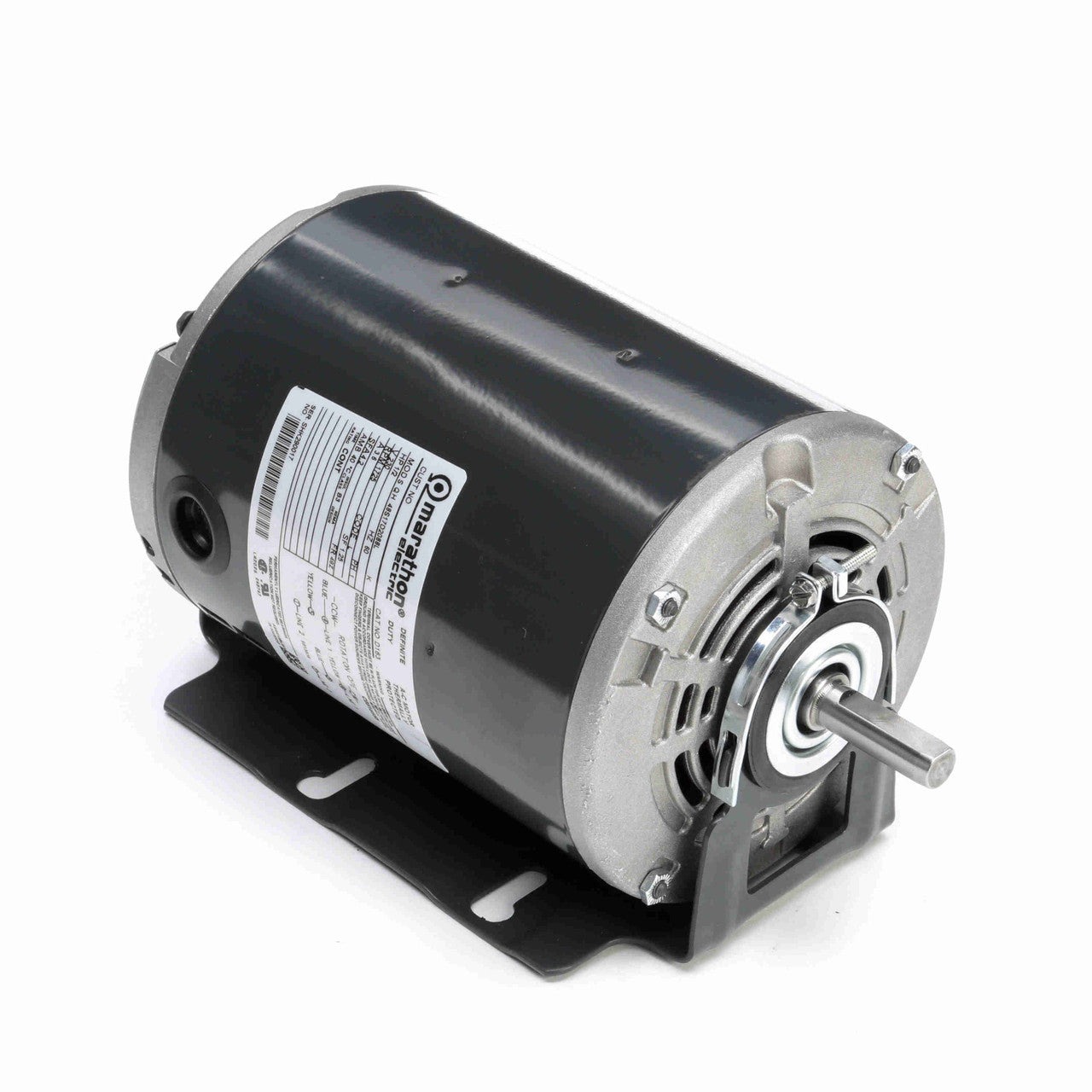

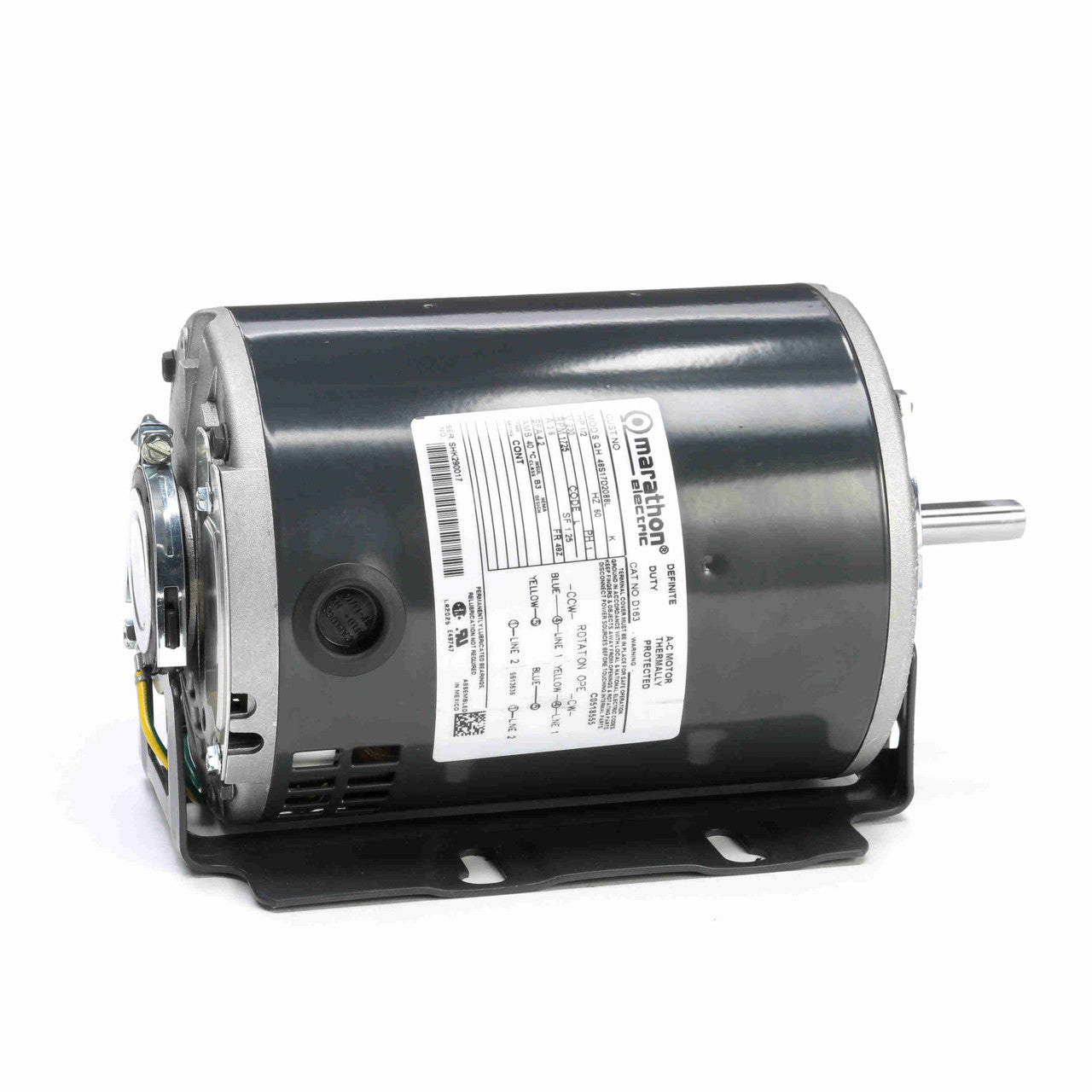

Marathon Motors D163 Fan and Blower Motor 1/2 HP

Product Description

The MARATHON MOTORS D163 is a fan and blower motor with a split phase electrical type. This motor delivers 1/2 HP with a speed of 1725 RPM. It features a 48Z frame, ODP enclosure, and operates on a single phase at 230V. Designed with a resilient base for mounting and an automatic overload for protection.

• 1/2 Horsepower
• 1725 RPM
• Resilient Base Mounting

Product Highlights

Designed for commercial fans, blowers, and HVAC systems, this motor ensures efficient and reliable performance in demanding environments.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: D163

Technical Specifications

• Electrical Type: Split Phase
• HP: 1/2
• RPM: 1725
• Frame: 48Z
• Diameter: 5.6"
• Enclosure: Drip Proof
• Phase: Single
• Voltage: 230 V
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Mounting: Resilient Base
• Amperage: 3.6 A
• Shaft Type: Single Special Extension
• Output KW: 0.37 kW
• Speed (RPM): 1725 rpm
• Service Factor: 1.25
• Thermal Protection: Automatic
• Efficiency: 66 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Power Factor: 71.5
• Duty: Continuous
• Insulation Class: B
• Design Code: NO DESIGN CODE
• KVA Code: L
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 22
• Number of Speeds: 1
• Frame NEMA: 48Y
• Mount NEMA: Resilient Base
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• RPM (Number of Poles): 4 (1201 RPM to 1800 RPM)
• RPM (Nameplate): 1725
• Speeds: 1
• Frame Material: Rolled Steel
• Shaft Diameter: 1/2 (in.)
• Shaft Extension: 1.59 (in.)
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 10.09 (in.)
• Motor Orientation: Horizontal
• Max Ambient: 40°C
