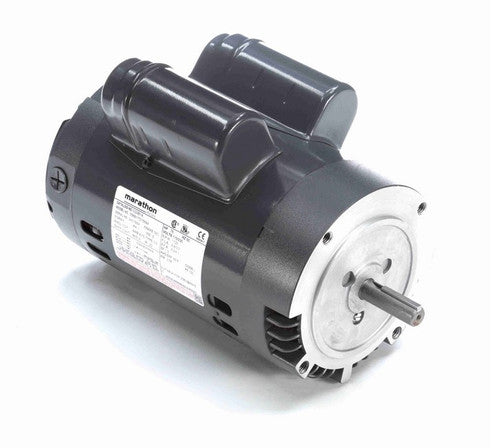

Marathon Motors CG361B General Purpose Motor 3/4 hp 1800 rpm 56C Frame

Product Description

The MARATHON MOTORS CG361B is a 3/4 HP general purpose electric motor. It is designed for use with fans, blowers, pumps, and other general purpose applications in relatively clean and dry environments. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

• No overload protection
• Capacitor Start/Capacitor Run design for reduced amperage
• Ball bearings mechanically locked on shaft end

Product Highlights

This motor features a heavy gauge steel frame and base, a 1.25 service factor, and is UL Recognized and CSA Certified.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: CG361B

Technical Specifications

• RPM: 1800
• Horse Power: 3/4
• Application: General Purpose
• Output HP: 3/4
• Output KW: 0.56
• Output RPM: 1725
• Frame NEMA: 56C
• Mount NEMA: C-Face No Base
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• Voltage: 115/208-230
• Frequency (Hz): 60
• Brand: Marathon
• SKU: MCG361B
• Amps: 6.2/3.1
• Volts: 115/230
• Hertz: 60
• Frame: 56C
• Shaft Diameter: 5/8"
• Shaft Length: 1 7/8"
• Service Factor: 1.25
• Overload Protection: None
• Base: No Base
• Rotation: Reversible
• Bearings: Ball Bearings
• Insulation Class: B
• Mounting: C-Face
• Manufacturer: Marathon Motors
• Part Number: CG361B
