Product Description

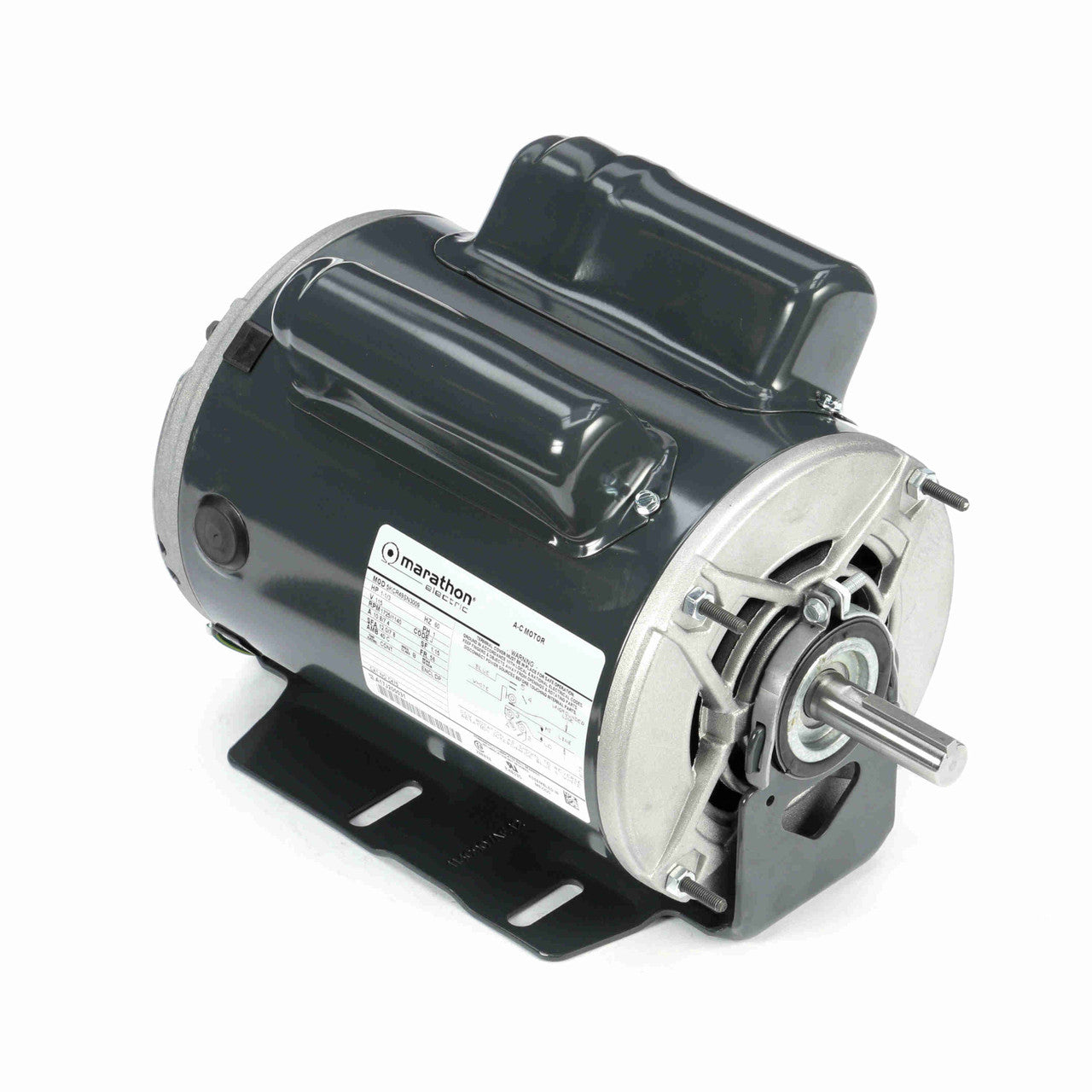

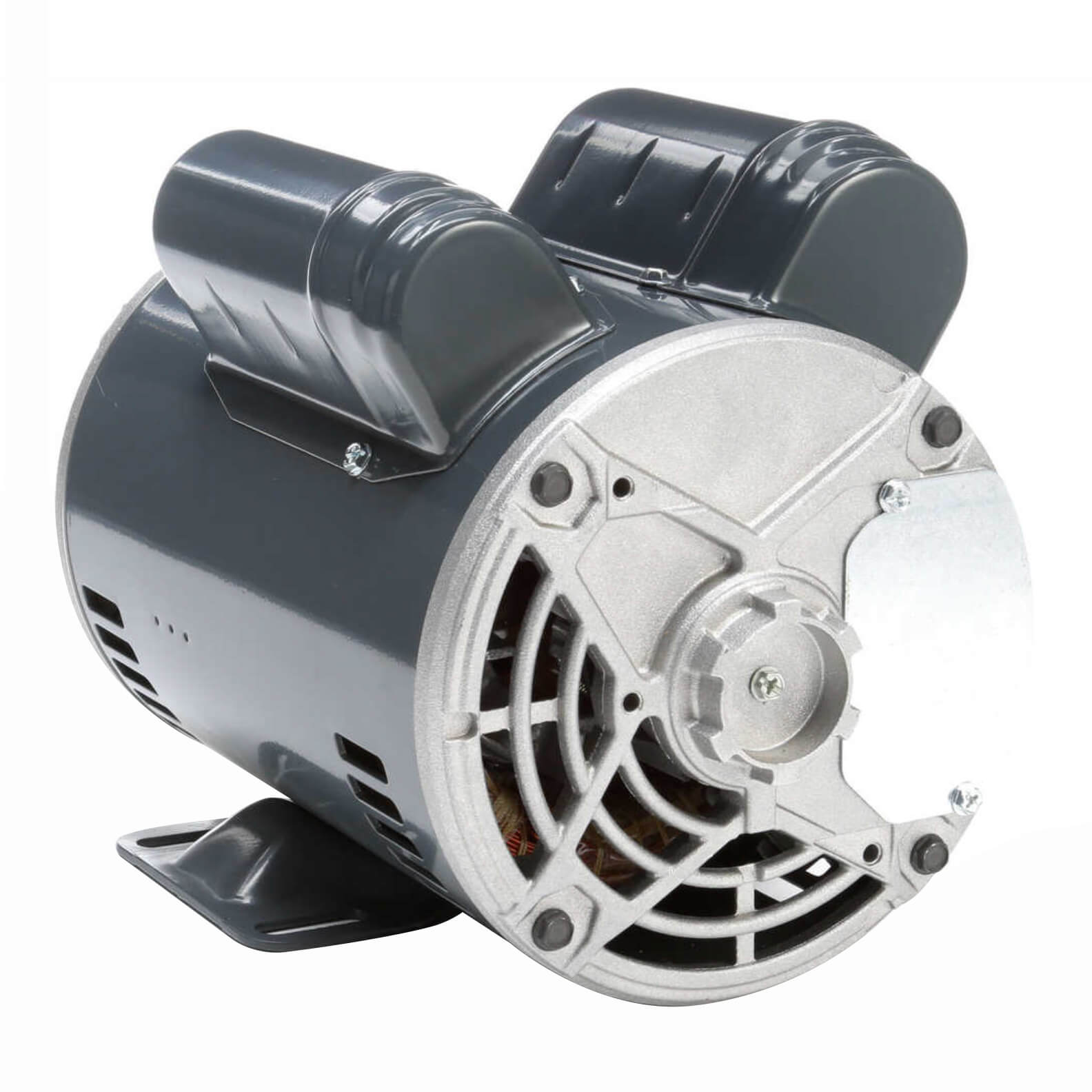

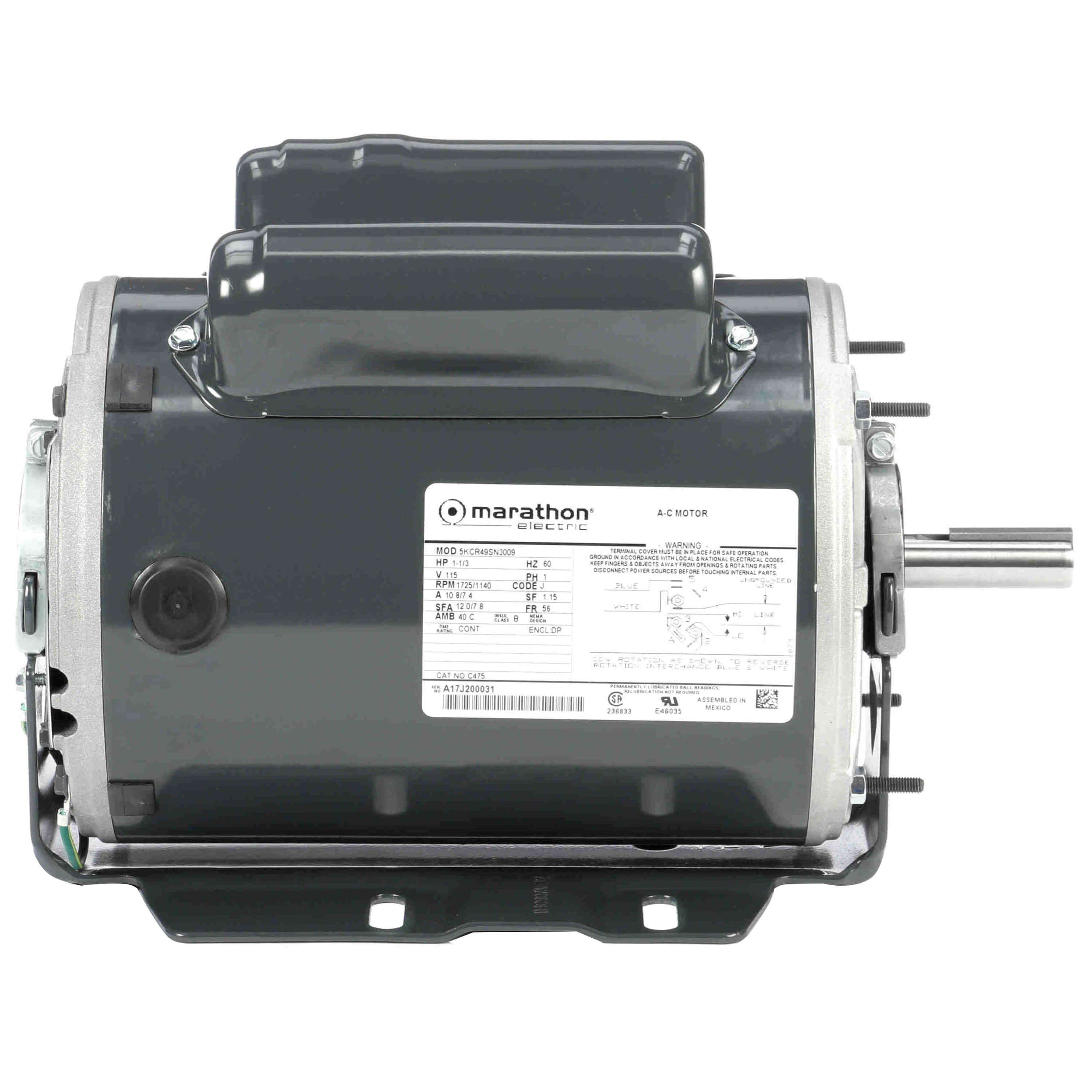

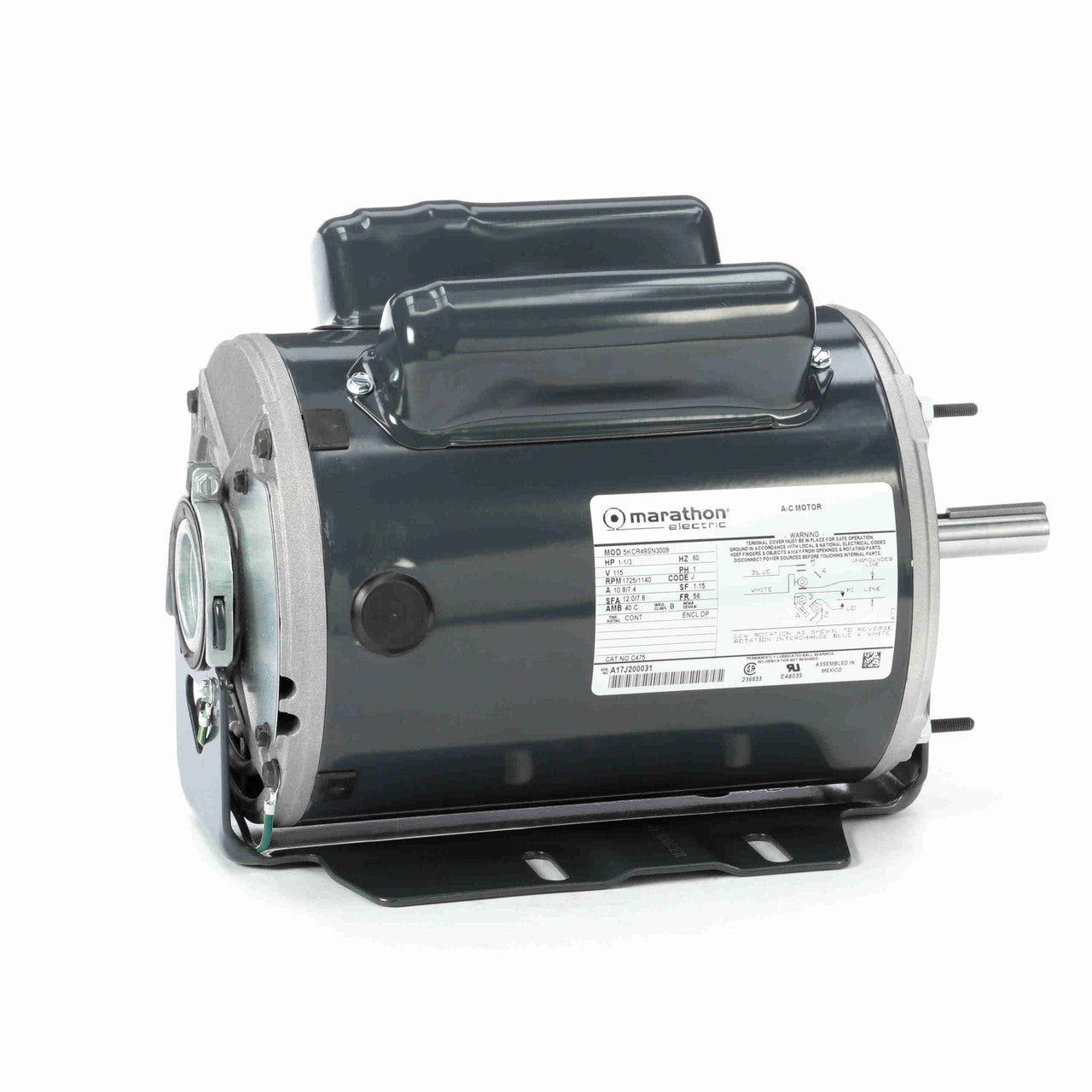

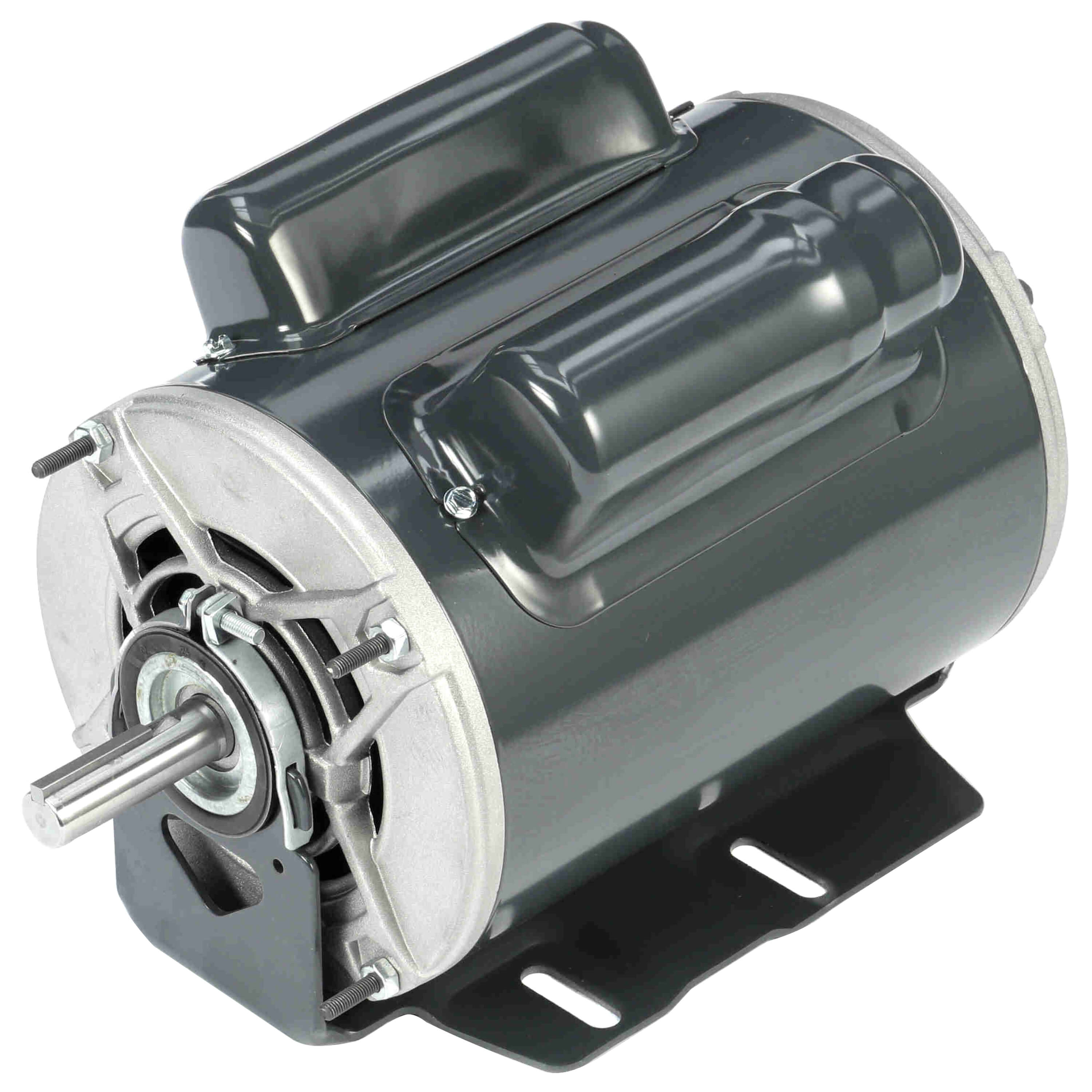

The MARATHON MOTORS C475 is a fan and blower motor with 1-1/3 HP and 1725/1140 RPM. It is designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans. The motor features a heavy gauge steel frame and base and is UL Recognized and CSA Certified.
- Ball bearings
- Heavy gauge steel frame and base
- UL Recognized and CSA Certified
Product Highlights
This motor is ideal for residential and commercial fans and blowers where low starting torque is required.
Product Information
Standard Information
-
Brand: MARATHON MOTORS
-
Manufacturer Part Number: C475
Technical Specifications
-
RPM: 1725/1140
-
Duty: Continuous
-
Type: General Purpose
-
Frame: 56
-
Motor: Capacitor Start/Capacitor Run
-
Mount: Resilient Base
-
Phase: 1
-
Poles: 4
-
Speeds: 2
-
Voltage: 115V
-
Amperage: 10.8/7.4
-
Bearings: Ball
-
Rotation: CW/CCW
-
Horse Power: 1-1/3
-
Enclosure Type: Drip Proof
-
Insulation Class: B
-
Motor Orientation: Any
-
Overload Protection: None
-
Max Ambient Temp (°F): 104°F
-
Output HP: 1.33 Hp
-
Output KW: 0.75 kW
-
Speed (RPM): 1725& 1140 rpm
-
Frame Size: 56
-
Mounting: Two Speed
-
Enclosure: Drip Proof
-
Service Factor: 1.15
-
Thermal Protection: No Protection
-
Efficiency: 70 %
-
Ambient Temperature: 40 °C
-
Frequency: 60 Hz
-
Current: 10.8,7.4 A
-
Power Factor: 0
-
KVA Code: J
-
Drive End Bearing Size: 6203
-
Opp Drive End Bearing Size: 6203
-
UL: Recognized
-
CSA: Yes
-
CE: N
-
Number of Speeds: 2
-
Frame NEMA: 56
-
Mount NEMA: Resilient Base
-
Enclosure NEMA: DP
-
Frequency (Hz): 60
-
Amps: 10.8, 7.4 AMP
-
S.F.: 1.15
-
Speed: 2 Speed
-
Shaft Size: 0.630" X 1.88" KEYED SHAFT
-
Overall Length: 12.01"
