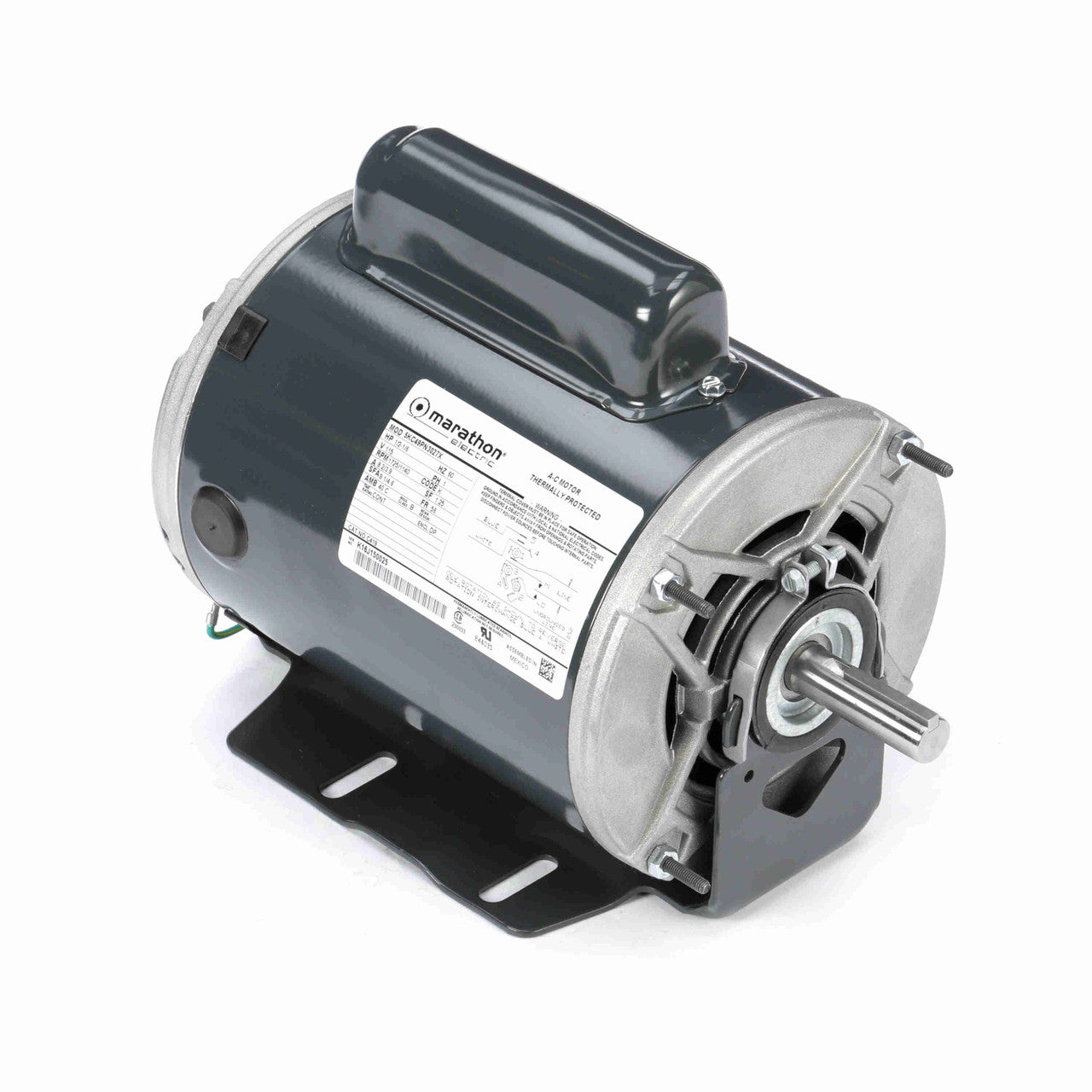

Marathon Motors C419 1/2HP Motor 1725/1140RPM 56 115V DP

Product Description

The MARATHON MOTORS C419 is a 1/2HP single-phase fan and blower electric motor designed for applications such as commercial fans, blowers, direct and belt drive air handlers, and exhaust fans. It operates at 1725/1140 RPM with a 56 frame and is suitable for general purpose use.

• Designed for fan and blower applications
• Features capacitor start induction run
• Includes automatic thermal protection

Product Highlights

This motor is ideal for various applications requiring a reliable and efficient power source. It features continuous duty and ball bearings.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: C419
• Country of Origin: US

Technical Specifications

• Application: Fan & Blower
• Output HP: 1/2-1/6
• Output KW: 0.37
• Output RPM: 1725/1140
• Frame NEMA: 56
• Mount NEMA: Resilient Base
• Enclosure NEMA: DP
• Voltage: 115
• Frequency (Hz): 60
• Efficiency: 62
• Brand: Marathon
• SKU: C419
• Poles: 4
• Mounting: Resilient Base
• Insulation: B
• Motor Application: General Purpose
• Full Load Amps: 8.2, 3.9
• Open End Bearing: 6203
• Rotation: Selective CCW
• Enclosure: ODP
• Phase: Single Phase
• Enclosure Designation: Open Drip Proof
• Drive End Bearing: 6203
• Voltage Rating: 115
• Service Factor: 1.25
• Frame: 56
• UPC: 722856048509
• UNSPSC: 26101112
• Package Quantity: 1
• Country of Origin: US
