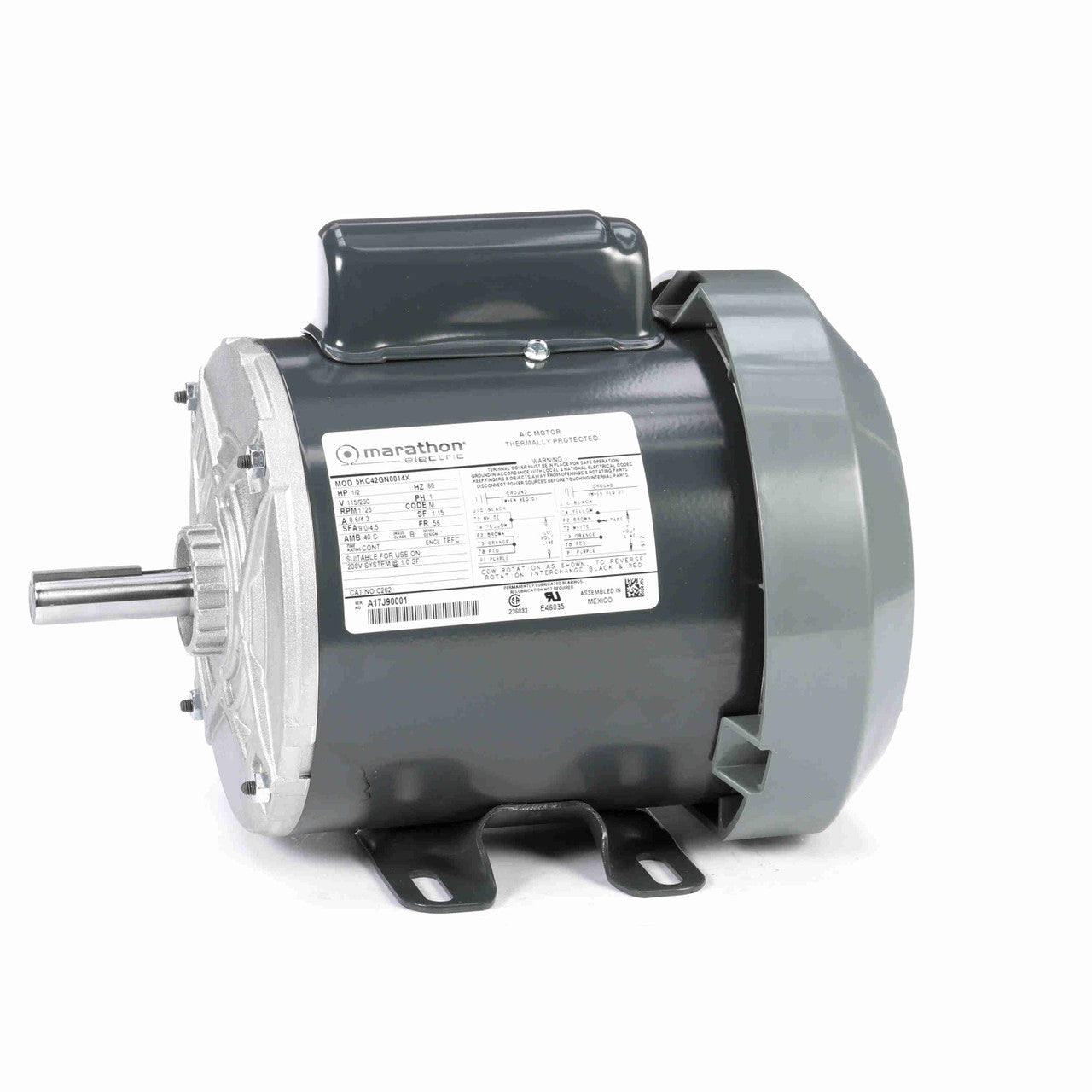

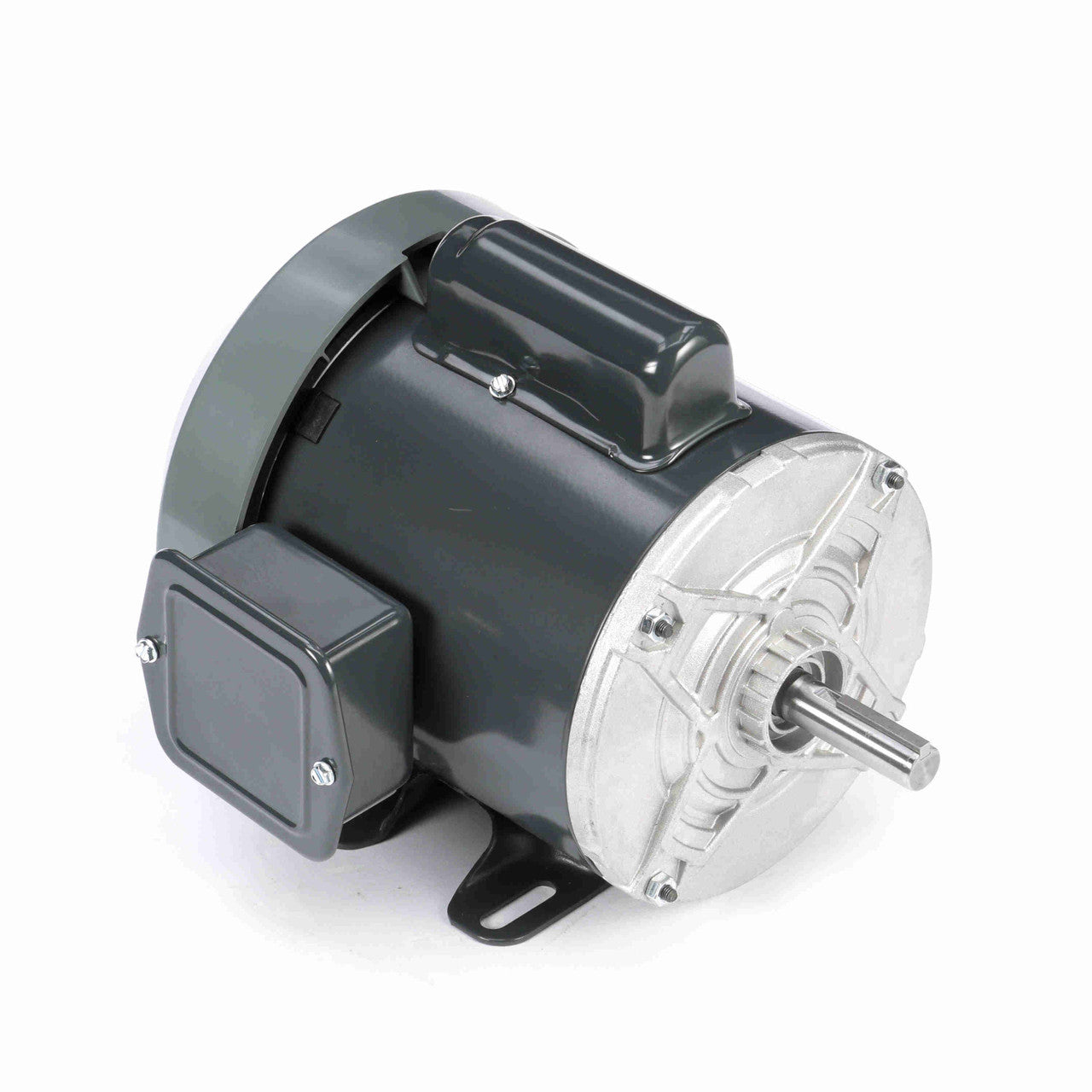

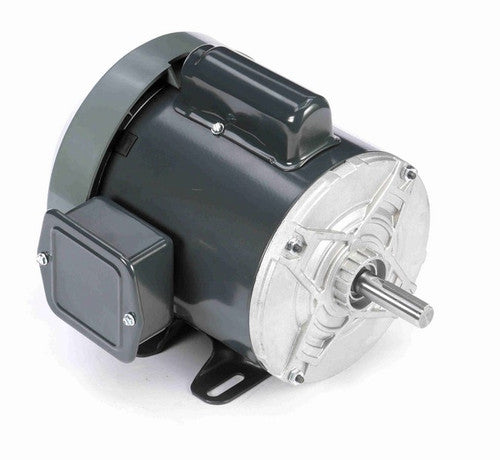

Marathon Motors C262 General Purpose Motor 1/2HP 1725RPM 5KC42GN0014X

Product Description

The MARATHON MOTORS C262 is a general purpose motor with continuous duty rating. This single phase motor operates at 115/230V and 1725 RPM. It features a 56 frame, TEFC enclosure, and rigid base mounting. Designed for use under usual service conditions, it is not intended for outdoor applications.

• Automatic overload protection
• Capacitor Start Induction Run design
• Ball bearings

Product Highlights

This general purpose motor features a TEFC enclosure, automatic overload protection, and is UL Recognized and CSA Certified.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: C262

Technical Specifications

• Brand: Marathon Motors
• Manufacturers Part Number: C262
• Frame: 56
• Phase: 1
• Voltage: 115/230 V
• Rotation: Counterclockwise/Clockwise
• Enclosure: TEFC
• RPM Range: 1701-1800 rpm
• Horsepower: 0.5 Horsepower
• Orientation: Horizontal or Vertical
• Nameplate RPM: 1725 rpm
• Starting Type: Switch and Mech
• Enclosure Type: Totally Enclosed
• Full Load Amps: 8.6/4.3 FLA
• Service Factor: 1.15
• Insulation Class: B
• Bearing Drive End: 6203
• Mounting Location: Rigid
• Motor RPM 60 Hertz: 1725 rpm
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Bearing Opp Drive End: 6203
• Duty: Continuous
• UL: Y
• CSA Certified: Y
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: 6203
• Application: General Purpose
• Output HP: 1/2
• Output KW: 0.37
• Output RPM: 1725
• Frame NEMA: 56
• Mount NEMA: Base Mount
• Enclosure NEMA: TEFC
• Frequency (Hz): 60
• Efficiency: 64.9
• Speed (RPM): 1725 rpm
• Frame Size: 56
• Mounting: Rigid Base
• Totally Enclosed Fan Cooled: Totally Enclosed Fan Cooled
• Efficiency %: 64.9 %
• Frequency: 60 Hz
• Current: 8.6,4.3 A
• Number of Speeds: 1
• Frame Material: Rolled Steel
• Shaft Diameter: 5/8 (in.)
• Shaft Extension: 1.88 (in.)
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 11 (in.)
• Electrical Type: Capacitor Start Induction Run
• Motor Orientation: ANY
• Type of Overload Protector: AUTO
• Max Ambient: 40°C
• DEM Reference: C262
• Hertz: 60hz
• Motor Type: Capacitor Start
• Shaft: Keyed Shaft 5/8" Diameter x 1 7/8"
• Bearings: Ball Bearings
• Model Name: c262
• Speed: 1800 RPM
• Volts: 230 Volts
