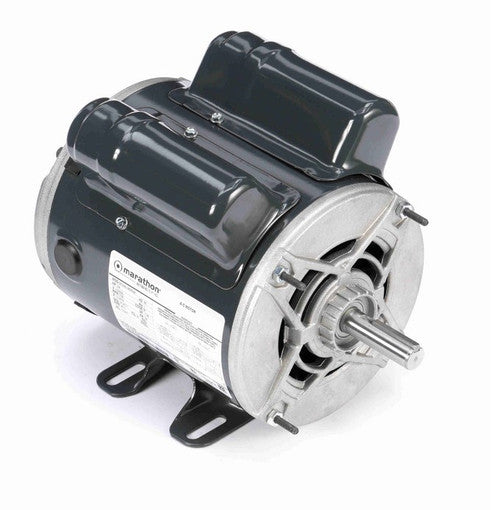

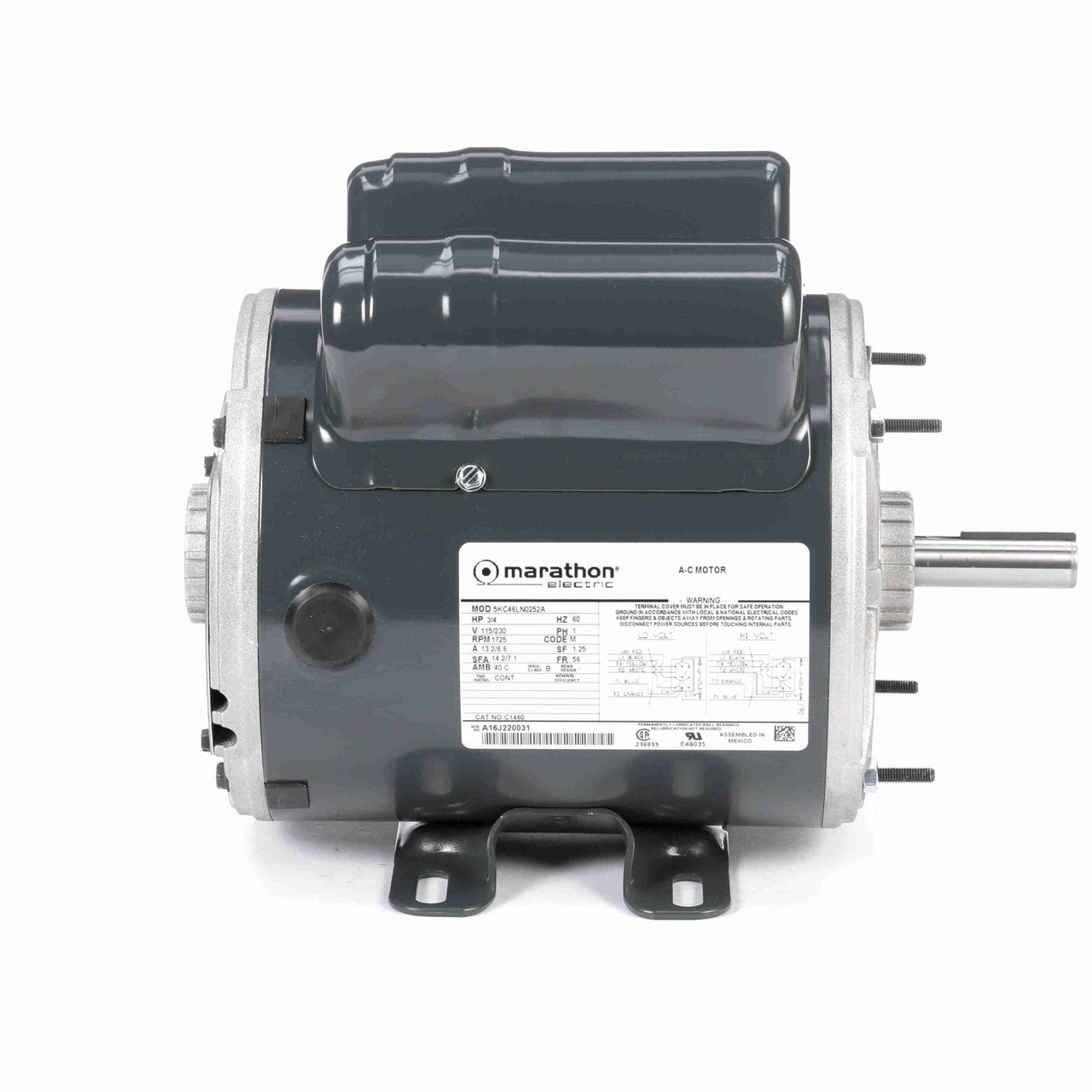

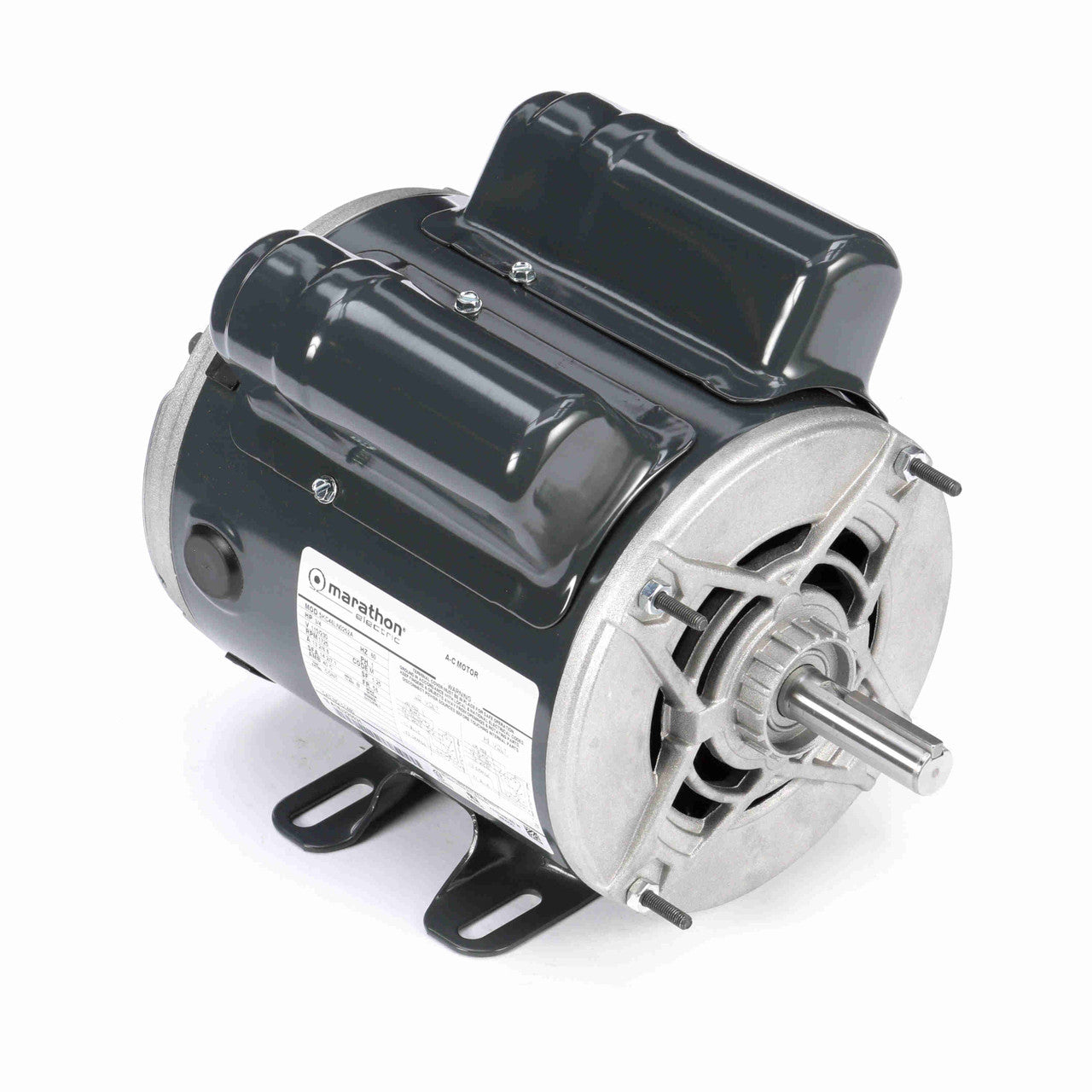

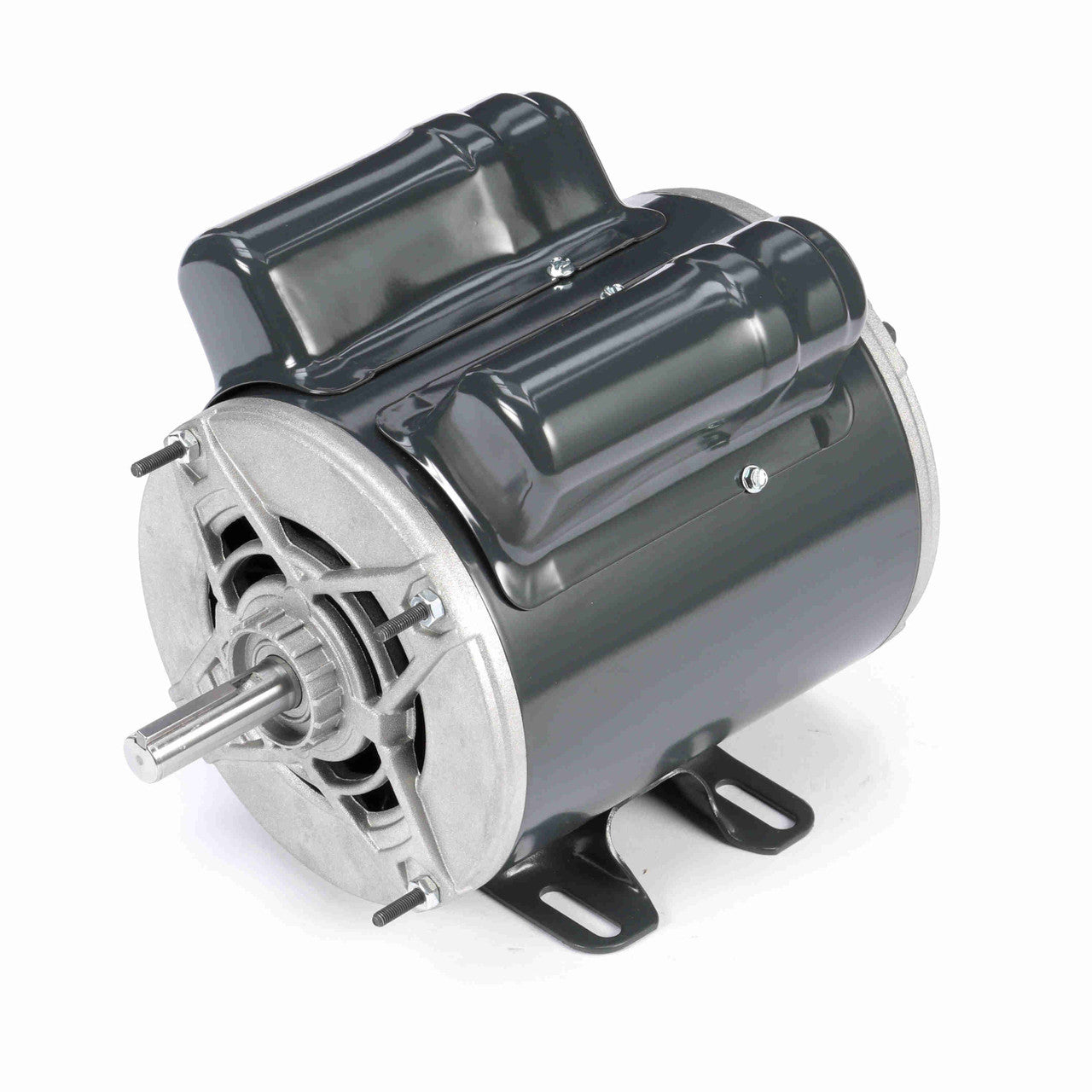

MARATHON MOTORS C1460 Instant Reverse Motor 3/4 HP

Product Description

The MARATHON MOTORS C1460 is a 3/4 HP instant reverse motor with a rigid base. This capacitor start motor operates on 115/230 volts and is specifically designed for applications that require quick reversals.

• Instant Reverse Capability
• Durable Rolled Steel Construction
• Stable Rigid Base Mounting

Product Highlights

This motor is suitable for various tasks that demand fast direction changes. Its robust design ensures reliability and efficiency in diverse applications.

Product Information

Standard Information

• Electrical Type: Capacitor Start
• HP: 3/4

Technical Specifications

• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof
• Phase: Single
• Voltage: 115/230
• Rotation: Reversible
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 13.2, 6.6
• Shaft Type: Single
• Frequency: 60 Hz
• Starting Method: Capacitor Start
• Shaft Size: 1 7/8 inches x 5/8 inches Diameter
• Speed: 1 speed
• Service Factor: 1.25
• Bearings: Ball Bearings
• Insulation Class: B
• Duty: Continuous
• Maximum Ambient Temperature: 40 degrees C
• Mounting Orientation: Horizontal or Vertical
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: 6203
• Reversible: Instant Reversible
• Overall Length: 10.78 inches
• Motor Diameter: 6.5 inches
• Shaft Diameter: 5/8 inches
• Shaft Length: 1.88 inches
• Motor Shell Length: 6.55 inches
• Efficiency: 66%
