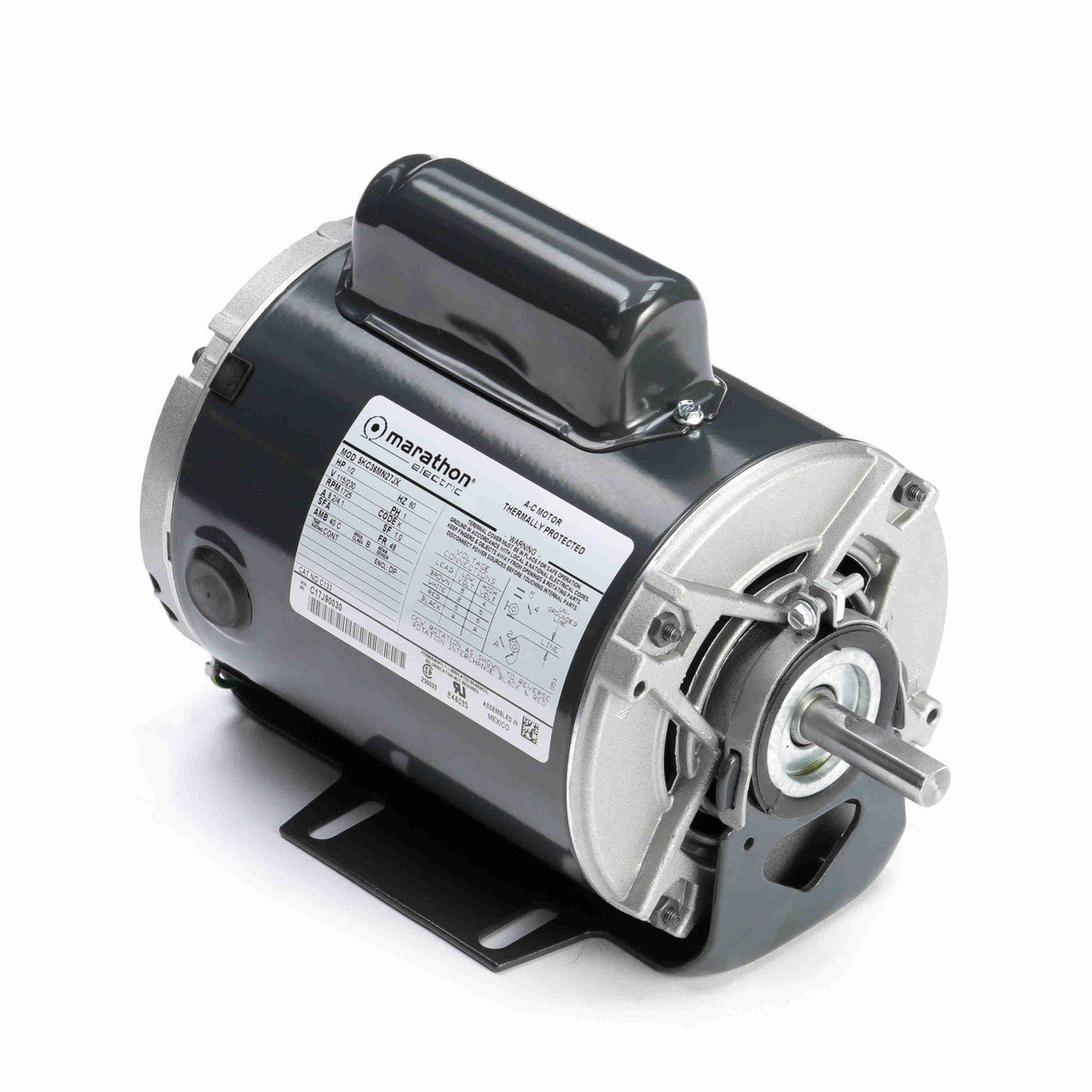

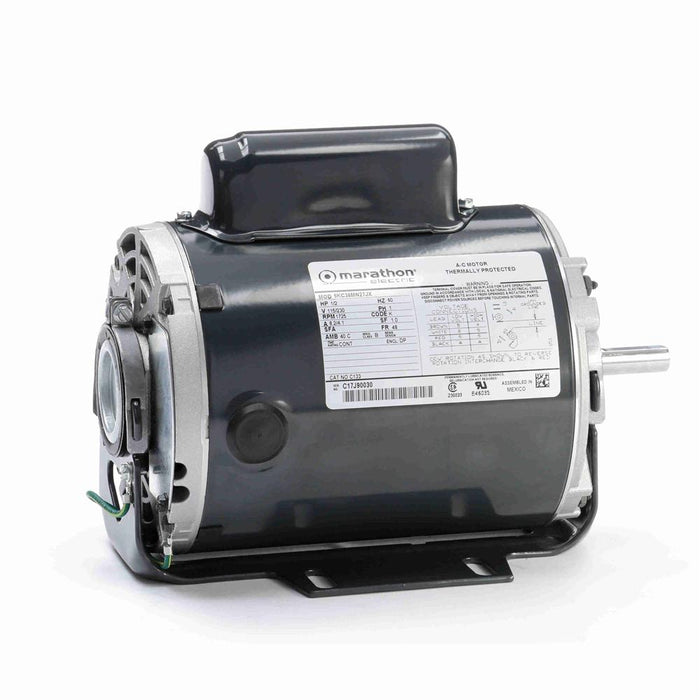

Marathon Motors C133 1/2 hp 1725 rpm Motor

Product Description

The MARATHON MOTORS C133 is a 1/2 HP Single Phase General Purpose Resilient Base Motor with 1.0 SF. It features automatic overload protection and a capacitor start induction run design. The motor has a heavy gauge steel frame and base and is UL Recognized and CSA Certified.

• Automatic overload protection
• Capacitor Start Induction Run design
• Ball bearing

Product Highlights

This motor is ideal for general purpose applications requiring a resilient base mount.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: C133

Technical Specifications

• Application: General Purpose
• Output HP: 1/2
• Output KW: 0.37
• Output RPM: 1725
• Frame NEMA: 48
• Mount NEMA: Resilient Base
• Enclosure NEMA: DP
• Voltage: 115/230
• Frequency (Hz): 60
• Efficiency: 62
• Manufacturer: Marathon
• Amps: 8.2/4.1
• Bearings: Ball
• Duty Cycle: Continuous
• Enclosure Material: Steel
• Enclosure Type: ODP (Open Dripproof)
• Insulation Class: B
• Maximum Ambient Temperature: 40 C
• Motor Diameter: 5-5/8"
• Motor Shell Length: 6.22"
• Mounting Orientation: Any
• Mounting: Base
• Number of Speeds: 1
• Overall Length: 10"
• Phase: 1
• Product Type: Capacitor Start
• Rotation: Reversible
• Service Factor: 1
• Shaft Diameter: 1/2"
• Shaft Length: 1.5"
• Thermal Protection: Automatic
• Volts: 230
• Catalog Number: C133
• Speeds: 1
• Frame Type: 48
• Frame Material: Rolled Steel
• Shaft Extension: 1.5 (in.)
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 10 (in.)
• Electrical Type: Capacitor Start Induction Run
• Motor Orientation: ANY
• Type of Overload Protector: AUTO
• Max Ambient: 40 C
• UL: Recognized
• CE: N
• CSA: Y
• IP Code: None
• KVA Code: K
• DEM Reference: NOHP
