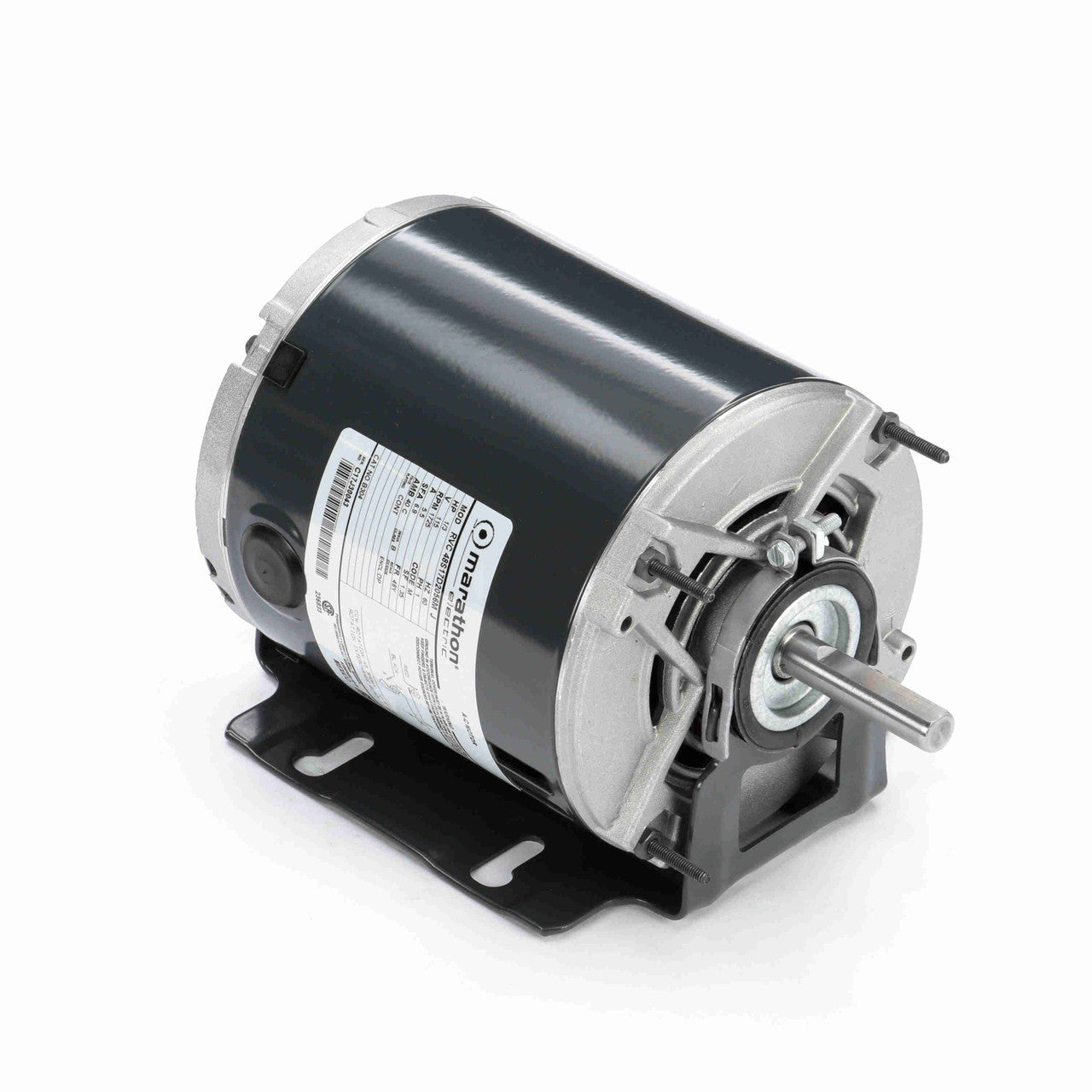

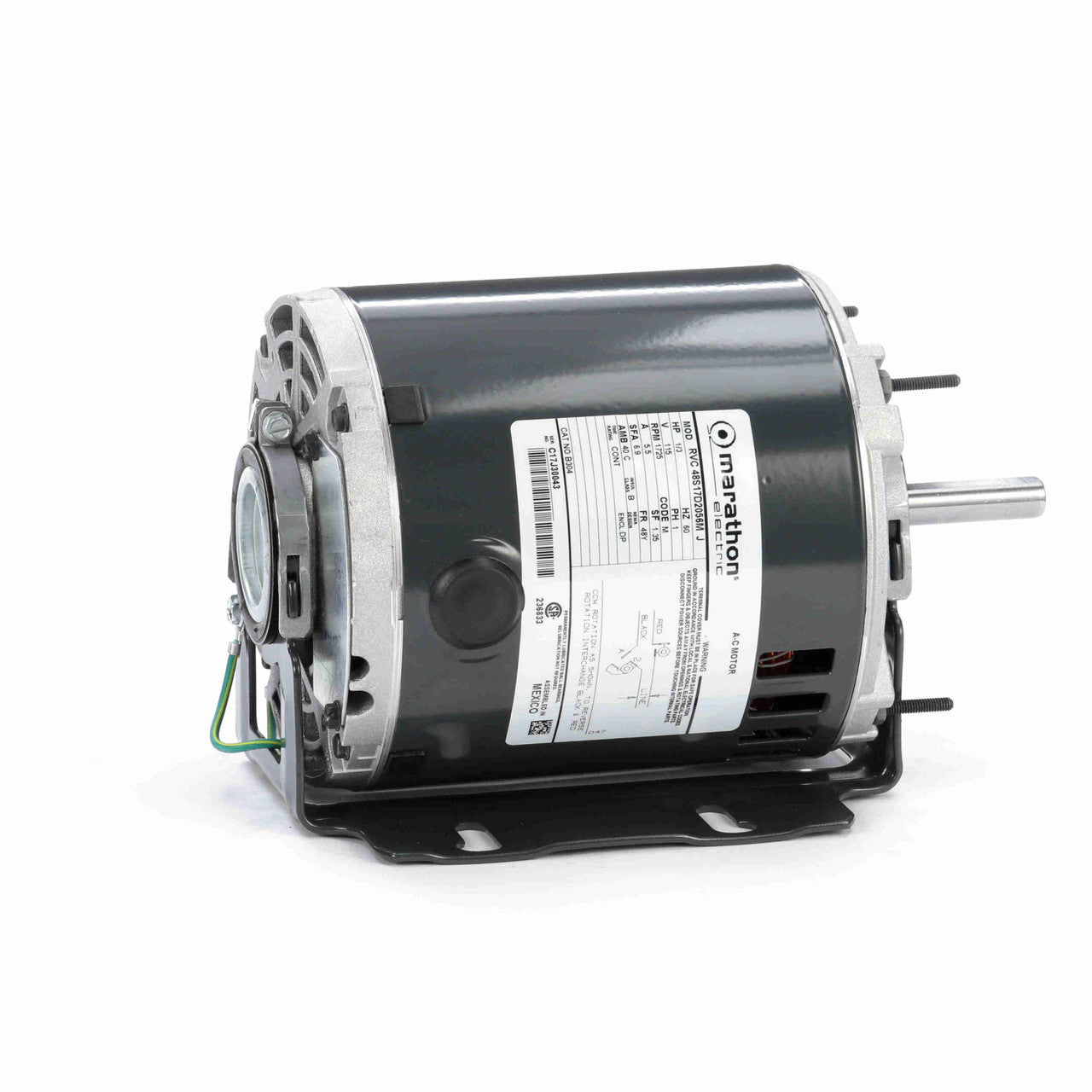

Marathon Motors B607 Fan Blower Motor 1/3HP 1800RPM

Product Description

The MARATHON MOTORS B607 fan blower motor is designed with dynamically balanced rotors for reduced vibration. This motor is suitable for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans. It has a horsepower of 1/3 HP and speed of 1800 RPM, operating at 277V.

• Dynamically balanced rotors for reduced vibration
• Heavy gauge steel frame and base
• UL Recognized and CSA Certified

Product Highlights

This motor is designed for use in industrial and commercial applications, including HVAC systems, industrial ventilation, agricultural applications, and commercial kitchens.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: B607
• Country of Origin: United States

Technical Specifications

• Duty: Continuous AOM
• Brand: Marathon Motors
• Frame: 48Z
• Hertz: 60 Hz
• Phase: 1
• Voltage: 277 V
• Is_Motor: Yes
• Rotation: CCW °
• Enclosure: DP
• RPM Range: 1701-1800 rpm
• Rated RPM: 1800
• Horsepower: 1/3 HP
• Bearing Type: Ball
• Enclosure Type: Open/Drip Proof
• Full Load Amps: 2.5 FLA
• Service Factor: 1.35
• Insulation Class: B
• Number of Speeds: 1
• Mounting Location: Resilient Base - Extended Studs
• Motor RPM 60 Hertz: 1800 rpm
• Thermal Protection: Automatic Protector
• Ambient Temperature: 40 °C
• Manufacturers Part Number: B607
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: 6203
• Application: Fan & Blower
• Output HP: 0.33 Hp
• Output KW: 0.25 kW
• Output RPM: 1725
• Frame NEMA: 48YZ
• Mount NEMA: Resilient Base
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• Frequency (Hz): 60
• RPM (Number of Poles): 4 (1201 RPM to 1800 RPM)
• RPM (Nameplate): 1725
• Speeds: 1
• Frame Material: Rolled Steel
• Shaft Diameter: 0.5
• Shaft Extension: 1.97
• Shaft Type: Single Special Extension
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 9.72
• Electrical Type: Split Phase
• Motor Orientation: Horizontal
• Type of Overload Protector: No
• UL: Recognized
• CE: N
• CSA: Y
• IP Code: 22
• KVA Code: M
• DEM Reference: NOHP
• Speed: 1725 rpm
• Efficiency: 62 %
• Current: 2.5 A
• Power Factor: 58
• Design Code: NO DESIGN CODE
• Alternate Mfr Part Number: 048S17D2117
