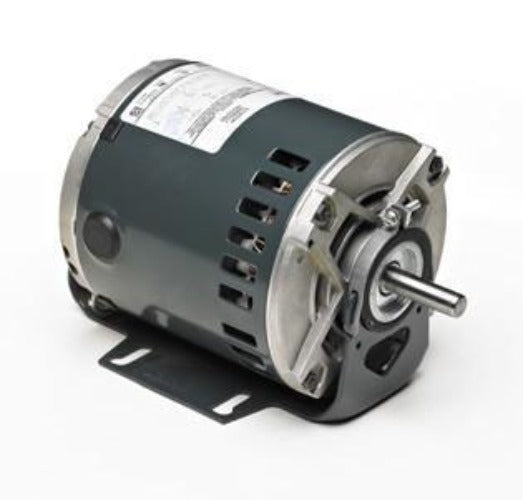

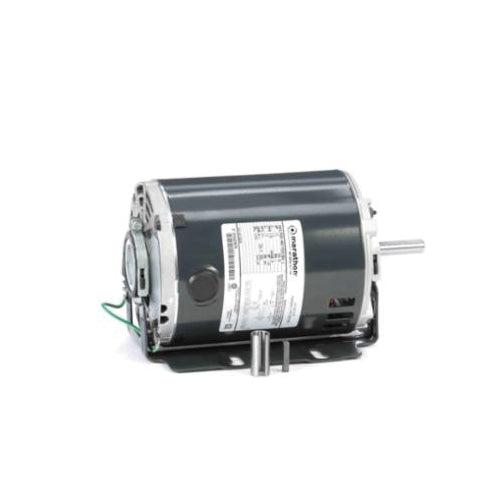

Marathon Motors B208 - 1/2 HP Motor

Product Description

The Marathon Motors B208 is a 0.5 horsepower motor suitable for fan and blower applications. This single-phase motor operates at 115 VAC and 60 Hz, with a current rating of 7.5 A. It features a 48YZ frame and a shaft with a diameter of 0.500 inches. The motor offers two-speed operation at 1725 RPM with selective CCW rotation. Built with a heavy gauge steel frame and base, it has Class B insulation and a temperature rating of 40 degrees C. Both drip-proof enclosure and base mounting enhance its durability. Extended thru-bolts assist with installation. This motor employs an across-the-line starting method and includes automatic thermal protection.

• Heavy gauge steel frame provides robust support.
• Two-speed ratings for variable torque.
• Compatible with 48/56 frame mounting holes.

Product Highlights

The Marathon Motors B208 is designed for efficiency and reliability in various fan and blower applications.

Product Information

Standard Information

• Brand: Marathon Motors
• Type: Drip Proof Split Phase

Technical Specifications

• Horsepower: 0.5 hp
• Voltage Rating: 115 VAC
• Amperage Rating: 7.5 A
• Frequency Rating: 60 Hz
• Speed: 1725 RPM
• Number of Speeds: 2
• Enclosure Type: DP
• Mounting Type: Base
• Temperature Rating: 40 degrees C
• Insulation Class: Class B
• Dimensions: 10.43 inches L
• Weight: 20.00 LB
