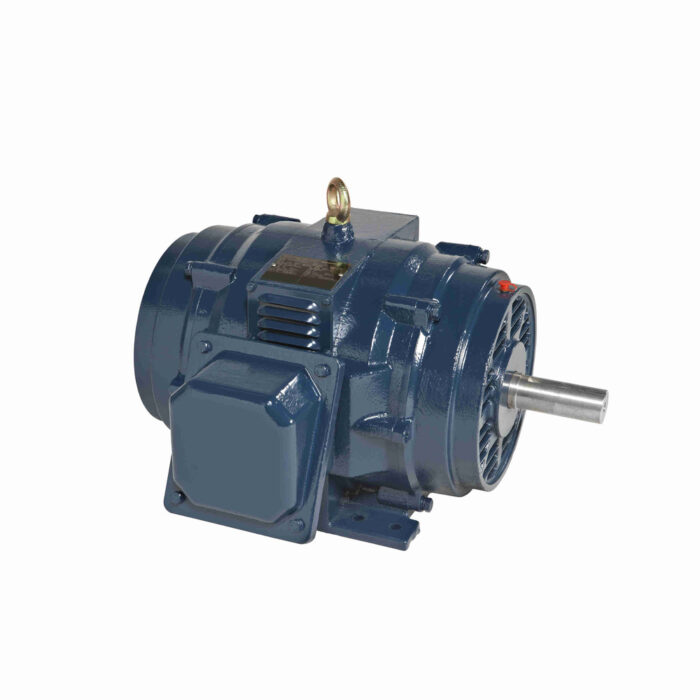

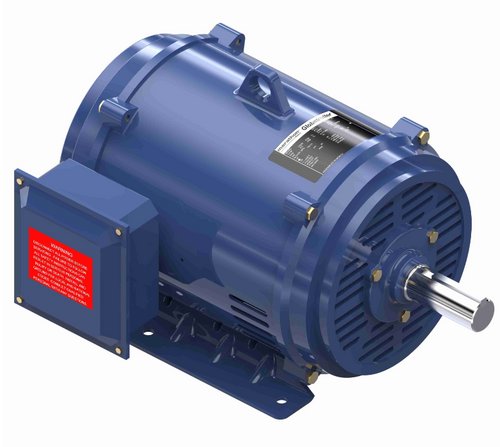

MARATHON MOTORS B199711.00 Electric Motor 40 Horsepower NEMA 324T ODP

Product Description

The MARATHON MOTORS B199711.00 is a three-phase electric motor. It is useful for various general-purpose applications. This motor operates at voltages of two hundred thirty or four hundred sixty volts at sixty hertz. It delivers forty horsepower while running at one thousand seven hundred eighty RPM.

• Horsepower: 40 hp
• Frame Type: NEMA 324T
• Enclosure: Open Drip Proof (ODP)

Product Highlights

This electric motor features a durable design. It includes a rigid base mount for stability. The ball bearings ensure smooth operation. It has Class F insulation, enhancing its reliability. The motor also has a reversible design. A wiring diagram is available on the nameplate for easy installation.

Product Information

Standard Information

• MPN: B199711.00
• Brand: MARATHON MOTORS

Technical Specifications

• Horsepower: 40 hp
• RPM: 1780
• Amps: 95.5/48.0 amps
• Voltage: 230/460 Volts
• Frequency: 60 Hz
• Phase: Three Phase
• Frame: NEMA 324T
• Shaft Diameter: 2 1/8 inches
• Shaft Length: 4 1/4 inches
• Service Factor: 1.15
• Mounting Type: Rigid Base Mount
• Bearings: Ball Bearings
• Insulation Class: Class F
• Enclosure: Open Drip Proof (ODP)
• Weight: 30.00 lbs
