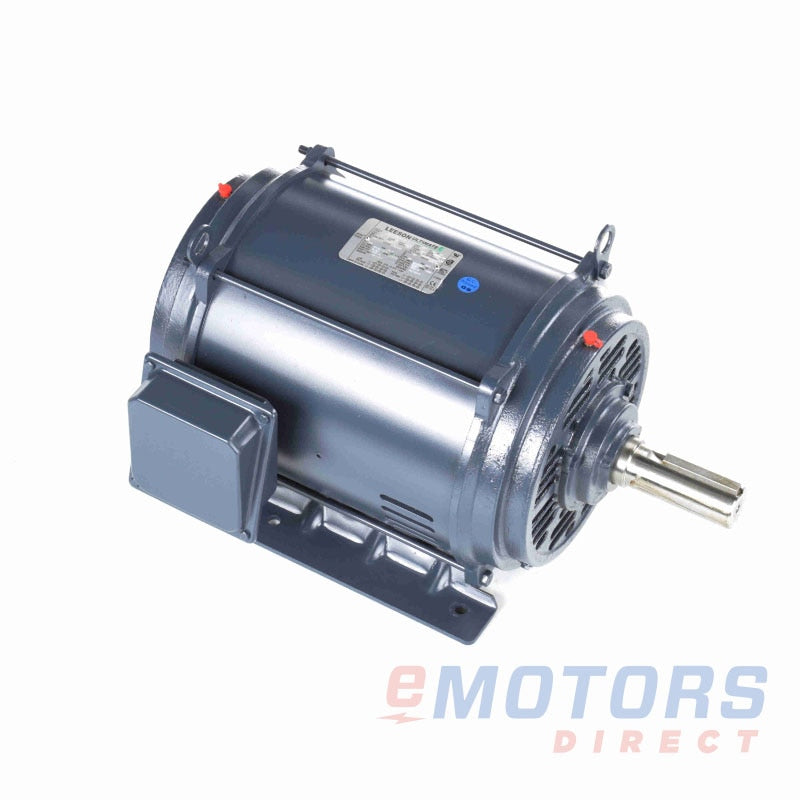

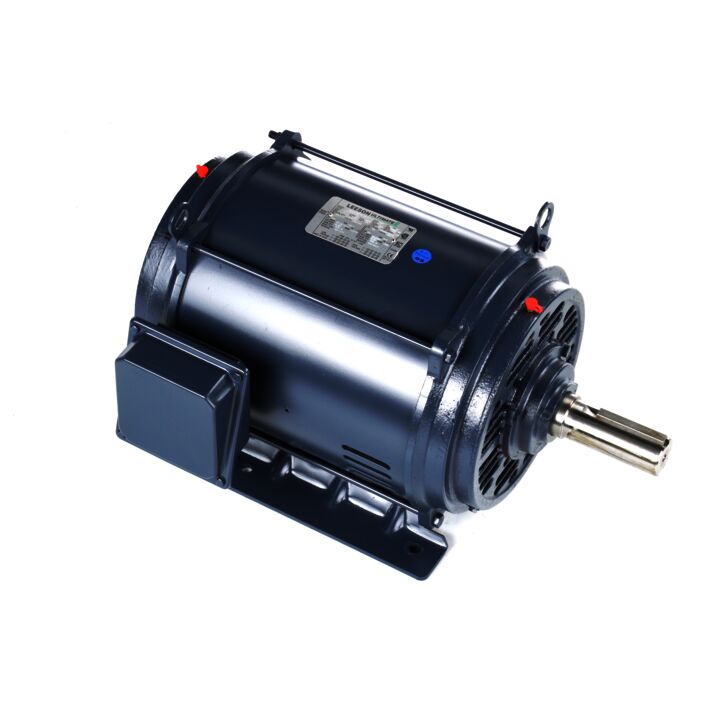

MARATHON MOTORS B199705.00 General Purpose Motor 25 HP

Product Description

The MARATHON MOTORS B199705.00 is a general purpose motor ideal for industrial tasks. This three-phase motor supports various horsepower, frequency, and voltage ratings. Built with a 284T frame and Class F insulation, it is outfitted for continuous duty use and even allows for reversible rotation.

• Horsepower ratings: 20 HP and 25 HP
• Frequency: 60 Hz and 50 Hz
• Durable construction with CSA, UL, and CE approvals

Product Highlights

This motor is designed for efficiency and versatility, making it suitable for various industrial applications.

Product Information

Standard Information

• Manufacturer Part Number: B199705.00
• Rated Motor Output Power: 25 HP (18.7 kW)

Technical Specifications

• Rated Motor Speed: 1800 RPM
• Input Voltage: 208-230V, 460V
• Rated Motor Current: 62.0/31.0 AMP
• Phase: 3
• Poles: 4
• Service Factor: 1.15
• KVA Code: G
• Nominal Efficiency: 93.6
• Nominal Power Factor: 81.5
• Frame: 284T
• Enclosure: ODP
• Mounting Type: Rigid
• Weight: 326 lb
• Frame Material: Rolled Steel
• C-Dimension: 25.71
• NEMA Design: B
• Insulation Class: F
• Rotation: Reversible
• Duty: Continuous
• Ambient Temp: 40°C
• DE Bearing: 6311
• NDE Bearing: 6210
• Shaft Diameter: 1.875
• Shaft Length: 4.62
• Greaseable: Yes
• Certifications: CSA, UL & CE
• RPM: 1800 & 1500
• Voltage: 230/460 & 190/380 V
