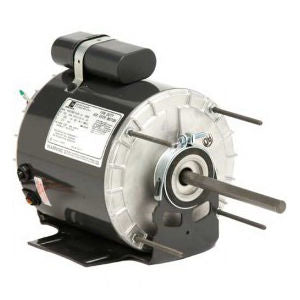

Nidec-US Motors 9035 Unit Heater Fan Motor 1/4 hp 115 V 9035

Product Description

The Nidec-US Motors 9035 is a unit heater fan motor known for its durability and efficiency. This model features a power rating of one-fourth horsepower and operates on one hundred fifteen volts, delivering a speed of one thousand seventy-five RPM. Its design includes a permanent split capacitor for reliable performance.

• Capacitor rating of five microfarads at four hundred forty volts
• Ball bearing construction for smooth operation
• Reversible rotation capability

Product Highlights

This motor is suitable for various heating applications and can be mounted in any position. It includes an automatic thermal overload protector.

Product Information

Standard Information

• Manufacturer: Nidec Motor Corporation
• MPN: 9035

Technical Specifications

• Power Rating: 1/4 hp
• Voltage Rating: 115 V
• Amperage Rating: 3.6 A
• Efficiency: 63.1%
• Speed: 1075 RPM
• Body Diameter: 5-5/8 inches
• Shaft Size: 1/2 inch diameter x 2-1/2 inches long
• Mounting Type: Hub/Stud
• Rotation Type: Reversible
• Enclosure Type: Totally Enclosed Air-Over
• Service Factor: 1
• Temperature Rating: 40 deg C
• Insulation Type: Class B
• Frequency Rating: 60 Hz, 1 Phase
• Number of Speeds: 1
• Mounting Position: All Angle
