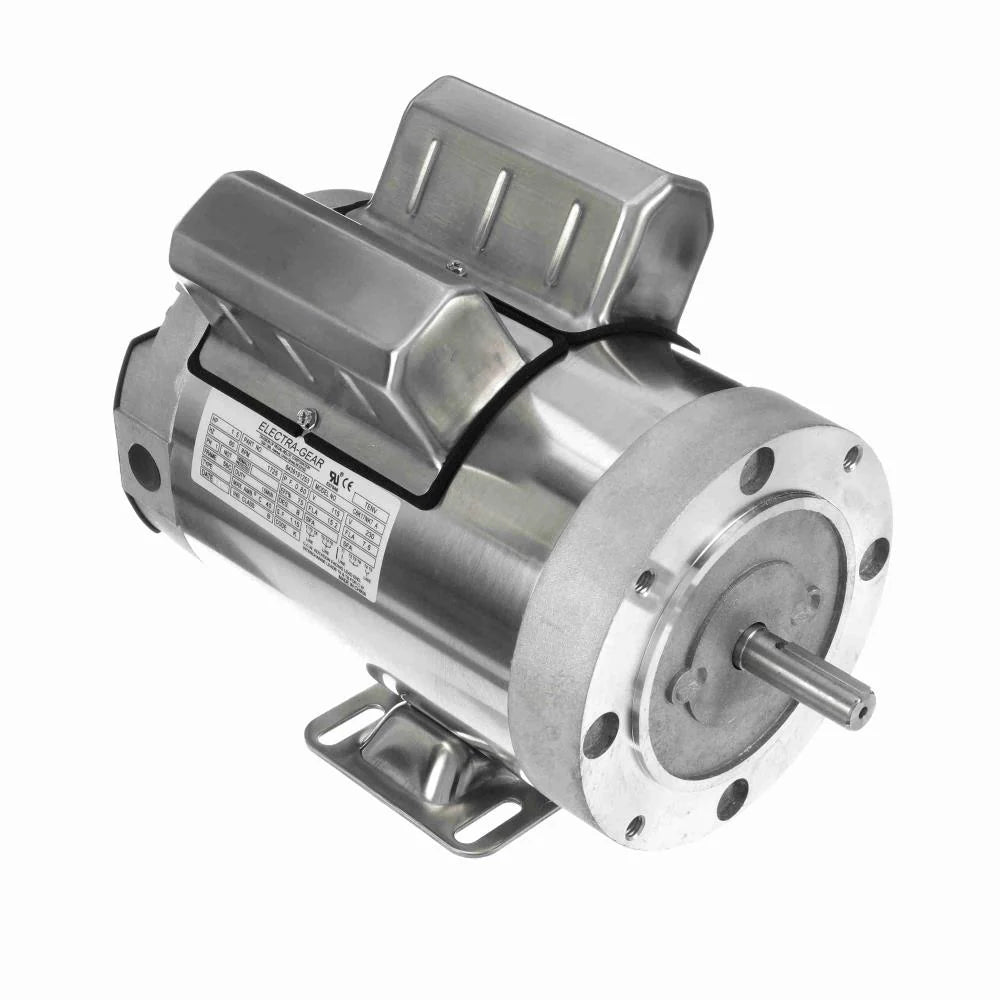

Leeson 6439191253 AC Motor 1.5 HP 1725 RPM

Product Description

The Leeson AC Motor with MPN 6439191253 is designed for boat hoist duty applications. This motor features a rated horsepower of one and a half and functions on single phase power. The unit operates at a speed of 1725 RPM and utilizes a voltage rating of 115/230 volts.

• Single phase with a maximum speed of 1725 RPM.
• Rated for 1.5 horsepower and operates at 60 Hertz.
• Constructed with a rigid base mount and TENV enclosure.

Product Highlights

This motor is built for durability and efficiency in demanding conditions, making it suitable for use in boat hoists and other related applications.

Product Information

Standard Information

• Brand: Leeson
• MPN: 6439191253

Technical Specifications

• Poles: 4
• RPM: 1725
• Enclosure Designation: Totally Enclosed Non Ventilated
• Constitution: TENV
• Hz: 60
• Voltage Rating: 115/230
• Efficiency Group: 75%
• Insulation: B
• Open End Bearing: 6203
• Rotation: Selective CCW
• Mounting: Rigid Base
• Frame Material: Stainless Steel
• Frame: 56C
• Phase: Single Phase
• Drive End Bearing: 6203
• Service Factor: 1.15
• Full Load Amps: 15.2/7.6
• Motor Application: Boat Hoist Duty
• Weight: 47.0 LB
• EAN or UPC: 691720000281
