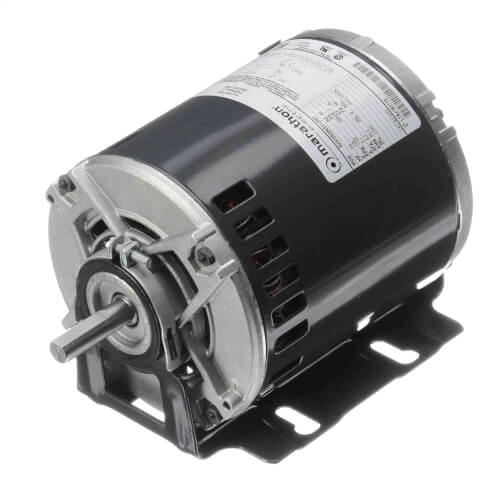

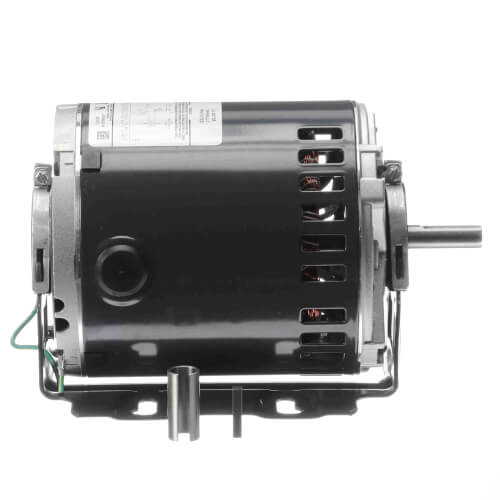

Marathon Motors 4701 Fan and Blower Motor 1/4 HP 1725 RPM 1 PH CCW 115V

Product Description

The Marathon Motors 4701 is a durable fan and blower motor designed to operate under continuous duty. This motor is ideal for HVAC applications, providing reliable performance with a power rating of 1/4 horsepower and a speed of 1725 RPM. It operates on a single phase and features a reversible rotation (CW/CCW) to accommodate various installation needs.

• Efficient ball bearing system enhances motor longevity and performance.
• Equipped with automatic overload protection for increased safety.
• UL recognized and CSA certified, ensuring compliance with North American standards.

Product Highlights

Designed for use in both commercial and residential settings, this motor supports various mounting configurations thanks to its resilient base.

Product Information

Standard Information

• Frame: 48Y
• Amperage: 5.1 A

Technical Specifications

• Type: Fan & Blower
• Phase: 1
• Poles: 4
• Speeds: 1
• Motor Orientation: Any
• Max Ambient Temp (°F): 104°F
• Enclosure Type: Open Air Over
• Insulation Class: B
