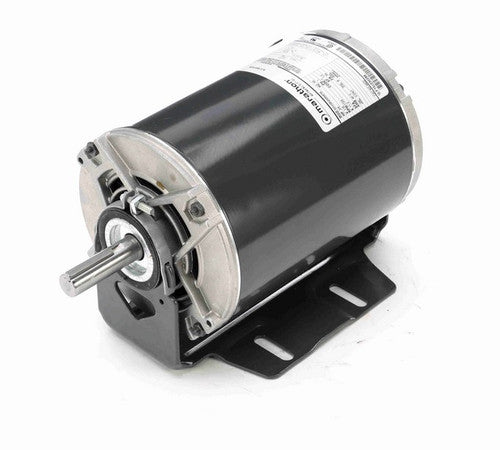

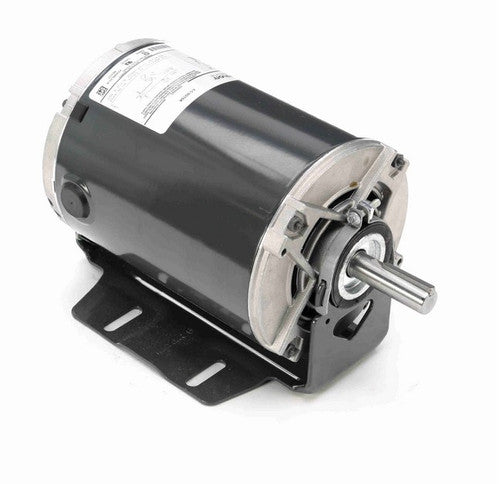

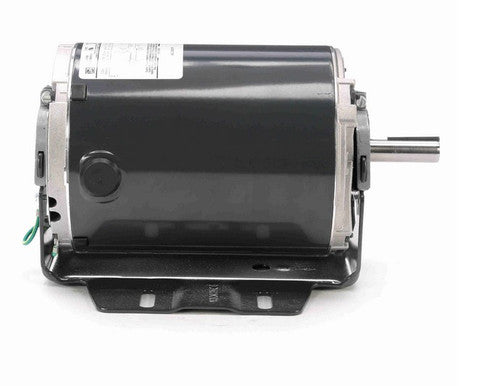

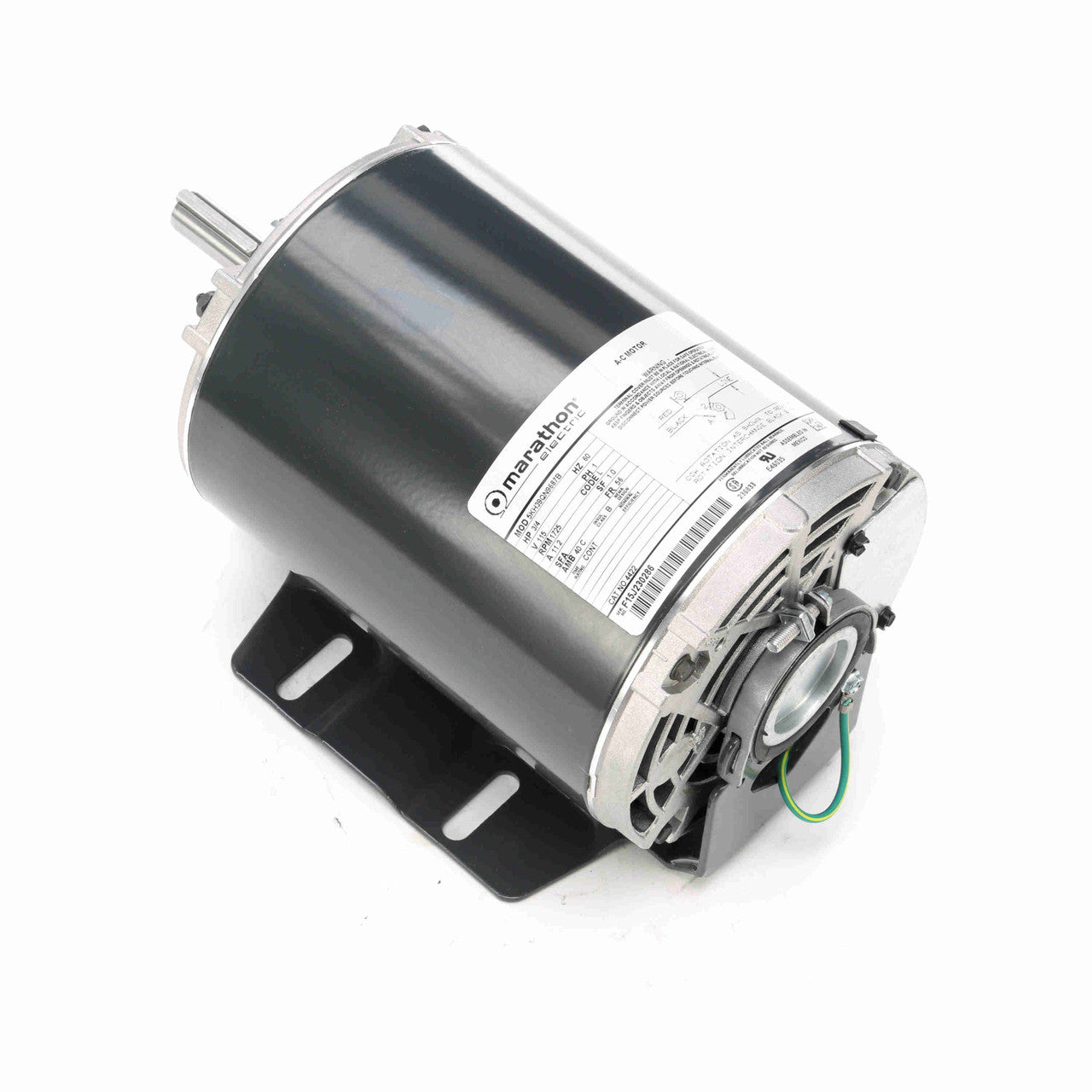

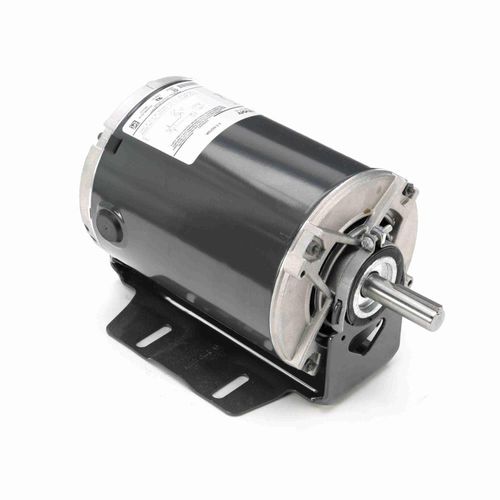

Marathon Motors 4422 General Purpose Motor 3/4 HP

Product Description

The Marathon Motors 4422 is a general purpose motor. This split phase motor delivers 3/4 HP at 1725 RPM with a 56 frame size. It features a resilient base for mounting and is constructed from rolled steel. Designed for general purpose applications with continuous duty rating, this motor is suitable for use under usual service conditions.

• Electrical Type: Split Phase
• Mounting: Resilient Base
• Heavy gauge steel frame and base

Product Highlights

This motor is UL Recognized and CSA Certified. It is designed for general purpose applications.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: 4422

Technical Specifications

• Brand: Marathon Motors
• Electrical Type: Split Phase
• HP: 3/4
• RPM: 1725
• Frame: 56
• Diameter: 6.5"
• Enclosure: ODP
• Phase: Single
• Voltage: 115
• Rotation: REV
• Overload: None
• Material: Rolled Steel
• Mounting: Resilient Base
• Amperage: 11.2 Amps
• Shaft Type: Single
• Application: General Purpose
• Output KW: 0.55
• Frame NEMA: 56
• Mount NEMA: Resilient Base
• Enclosure NEMA: DP
• Frequency (Hz): 60
• Efficiency: 66
• Insulation Class: B
• Duty: Continuous
• Ambient Temperature: 40 °C
• Starting Type: Switch and Mech
• Drive End Bearing: BALL
• Opposite End Bearing: BALL
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: 6203
• CSA: Yes
• UL: Recognized
• Thermal Protection: None
• AC Frequency Rating: 60 Hz
• AC Motor Type: Induction/Asynchronous
• Shaft Diameter: 5/8 in
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• Service Factor: 1.00
• Nominal Rated Input Voltage: 115 V, 230 V
• AC Phase: Single Phase
• Hertz: 60 Hz
• Bearings: Ball Bearings
• Speeds: 1-Speed
