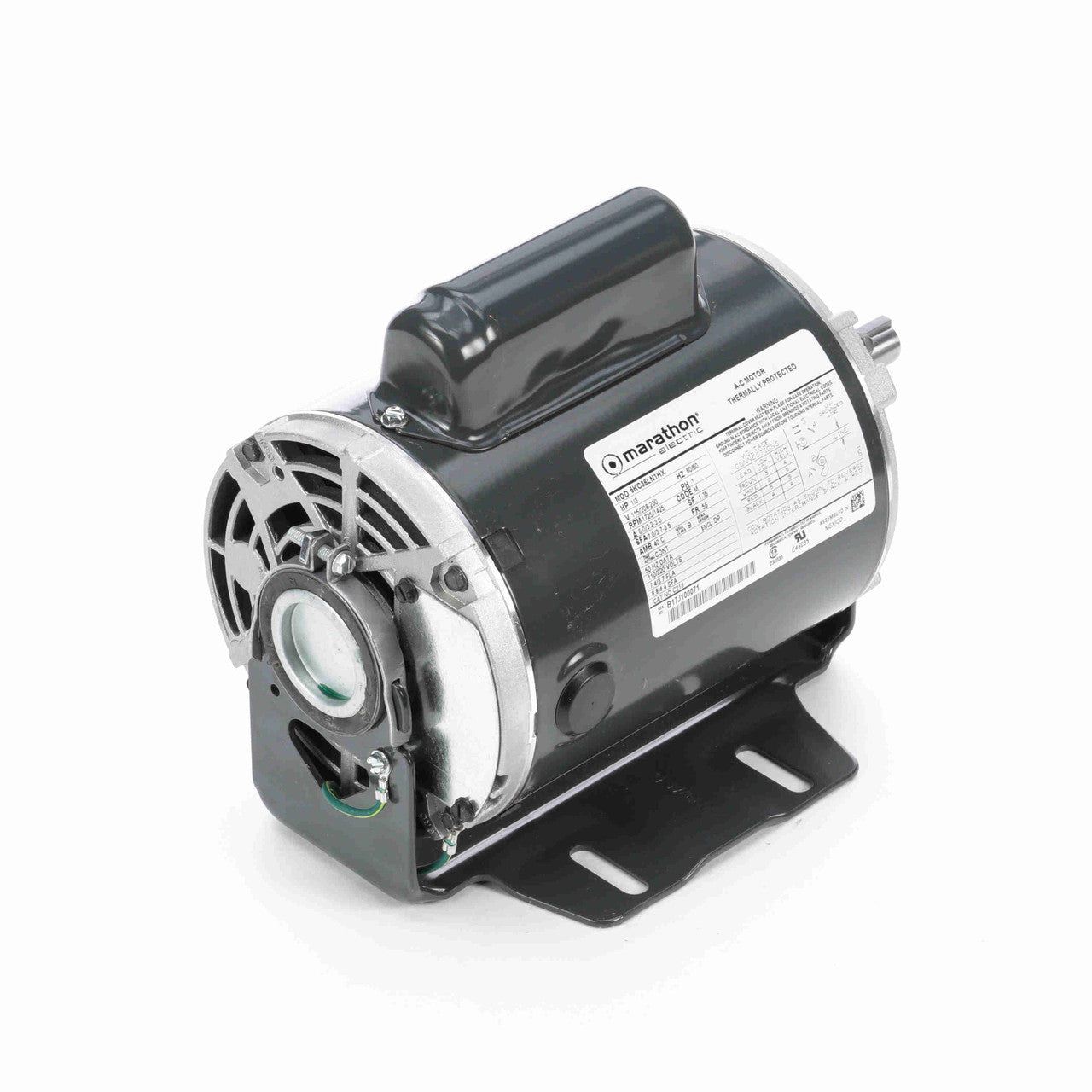

Marathon Motors 216 General Purpose Motor 0.33 Hp (Single Phase) Replacement MPN 216

Product Description

The Marathon Motors 216 general purpose motor is effective for a variety of applications. It operates on a single phase and comes with options for either a drip-proof or totally enclosed fan-cooled enclosure. This motor is designed for continuous operation and runs at sixty Hertz. It includes automatic thermal protection and utilizes durable ball bearings.

• Single Phase Operation
• Available in Drip Proof or TEFC Enclosure
• Continuous Duty

Product Highlights

This motor is suitable for tasks requiring reliable performance in both residential and commercial settings.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: 216

Technical Specifications

• Output HP: 0.33 Hp
• Output KW: 0.25 kW
• Voltage: 115/208-230 V
• Phase: 1
• Speed (RPM): 1725/1425 rpm
• Frame Size: 56
• Mounting Type: Resilient Base
• Enclosure Type: Drip Proof
• Service Factor: 1.35
• Thermal Protection: Automatic
• Efficiency: 62%
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 6.0,3.2-3.0 A
• Power Factor: 0
• Duty: Continuous
• Insulation Class: B
• KVA Code: M
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Yes
• CE: Y
• Number of Speeds: 2
• Motor RPM 60 Hertz: 1800 rpm
• Mounting Location: RB (Resilient Base)
• Enclosure: DP
• Bearing Type: Ball
• Rotation: CCW/CW
• Full Load Amps: 6/3.2-3 FLA
• Rated RPM: 1800
• RPM Range: 1701-1800 rpm
• Catalog Number: I216
• Amps: 24.5-22.0-22.0
• RPM (Nameplate): 1749
• Speeds: 1
• Rotation Direction: Selective Counterclockwise
• Frame Type: 213T
• Frame Material: Rolled Steel
• Shaft Diameter: 1-3/8 inches
• Shaft Extension: 3.47 inches
• Shaft Type: T
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 18.73 inches
• Electrical Type: Capacitor Start Capacitor Run
• Motor Orientation: Horizontal
• Type of Overload Protector: No
• IP Code: 43
