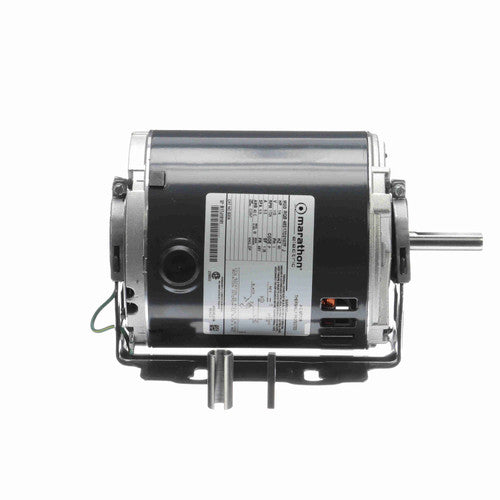

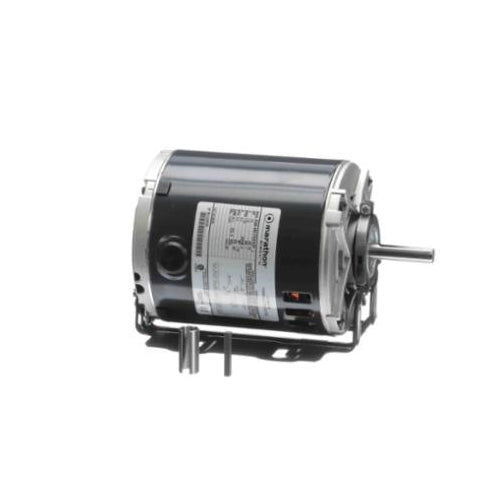

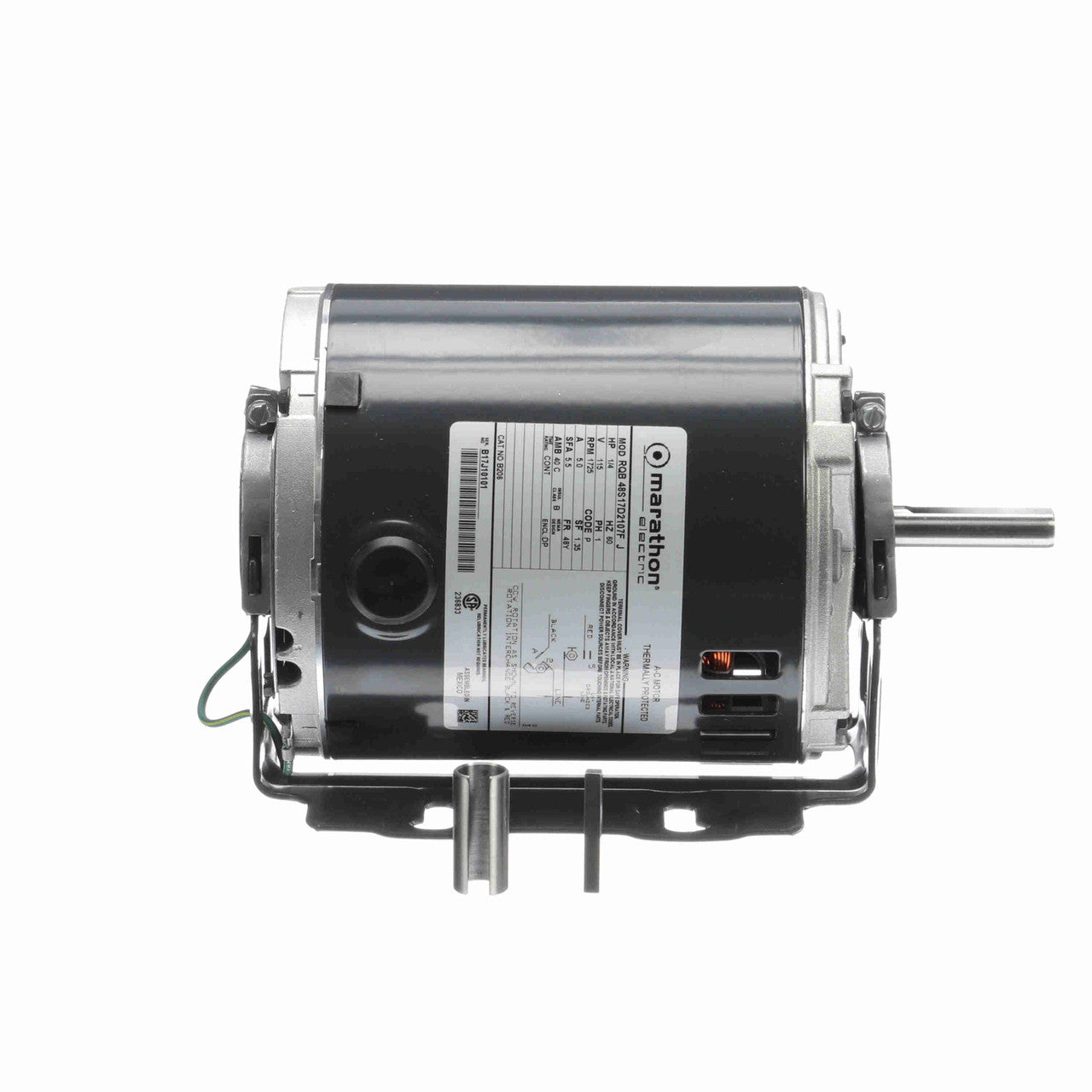

Marathon Motors 206 Marathon Motors B206 Belt Drive Fan and Blower Motor

Product Description

The Marathon Motors B206 is a reliable belt drive fan and blower motor specifically designed for diverse applications. This motor has a horsepower rating of one-quarter and operates at one thousand seven hundred twenty-five RPMs using a one hundred fifteen volt power supply.

• Horsepower: 1/4 HP
• Speed: 1725 RPM
• Voltage: 115V

Product Highlights

The B206 motor is constructed for continuous operation. It is suitable for use in air handling units, exhaust fans, and HVAC systems. The motor includes a drip-proof enclosure that helps in protecting it from moisture, along with a resilient base for easy mounting. Additionally, it features an automatic overload protector to ensure safety and reliability.

Product Information

Standard Information

• Brand: Marathon
• MPN: 206

Technical Specifications

• Horsepower: 0.25 hp
• Input Voltage: 115 VAC
• Frequency: 60 Hz
• Output Current: 5 A
• RPM: 1725 rpm
• Number of Poles: 4
• Speeds: 1
• Phase: 1
• Enclosure Type: Drip Proof
• Rotation: Selective Counterclockwise
• Mounting Type: Resilient Base
• Frame Type: 48Z
• Frame Material: Rolled Steel
• Shaft Diameter: 1/2 in
• Shaft Extension: 2.01 in
• Shaft Type: Single Special Extension
• Bearing Type: Ball
• C-Dimension: 9.62 in
• Electrical Type: Split Phase
• Duty: Continuous
• Motor Orientation: Horizontal
• Service Factor: 1.35
• Overload Protection: Automatic
• Insulation Class: B
• Max Ambient Temperature: 40°C
• UL: Recognized
• CE: Yes
• CSA: Yes
• IP Code: 22
• KVA Code: P
• Special Features: 4-Pole, Across The Line Starting Method
• Mounting Style: Base
• Temperature Rating: 40 deg C
• Dimensions: 9.62 in L
